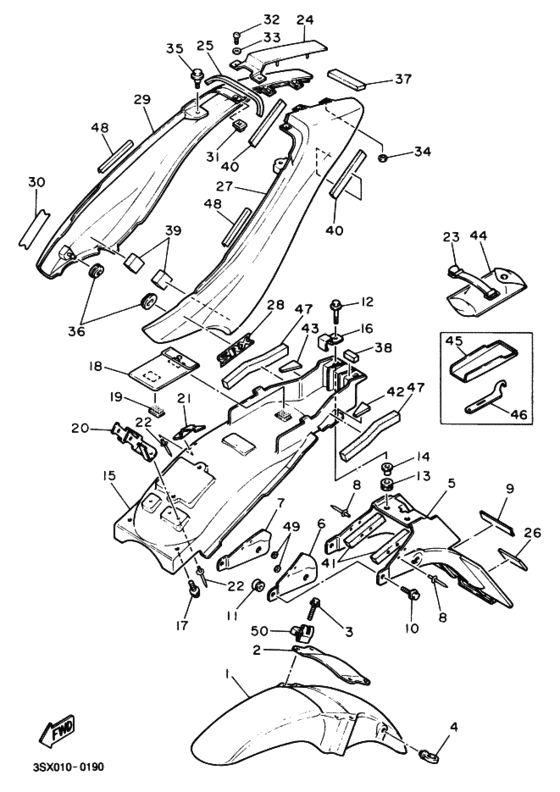

Fender Diagram Yamaha SRX600
- Year
- 1991
- Colour
- Black Metallic 2 (BM2; 0156)
- Model code
- 3SX2
- Sales region
- Japan (010)
- Engine Capacity
- 600
- Color Variant
- B
- Model
- SRX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3SX-21510-00-95
Front Fender Comp
フロントフエンダコンプリート; ＵＲ シルバーヨウ |
3SX-21510-00-95 |
— | ||
|
1
|
1
3SX-21510-00-P0
Front Fender Comp
フロントフエンダコンプリート; ＵＲ ブラツクヨウ |
3SX-21510-00-P0 |
— | ||
|
2
|
2
3SX-2313A-00-00
Brace, Fork
ブレイス，フオーク; |
3SX-2313A-00-00 |
— | ||
|
3
|
3
90105-06456-00 Bolt, Flange (Small Head)ボルト，ワツシヤベースドヘツド; |
90105-06456-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
95024-06025-00 Bolt, Flange (Small Head)ボルト，ワツシヤベースドヘツド; |
95024-06025-00 |
from US $1.66 |
||
|
4
|
4
1A8-21518-00-00 Holder, Cableホルダ，ケーブル; |
1A8-21518-00-00 |
from US $4.53 |
||
|
5
|
5
3SX-21611-00-00
Fender, Rear
|
3SX-21611-00-00 |
— | ||
|
6
|
6
3SX-21617-00-00
Bracket, Fender
|
3SX-21617-00-00 |
— | ||
|
7
|
7
3SX-21618-00-00
Reinforcement, Rear 2
リインフオースメント，リヤ ２; |
3SX-21618-00-00 |
— | ||
|
8
|
8
90267-40110-00 Rivet, Blind |
90267-40110-00 |
from US $1.70 |
||
|
9
|
9
99246-00020-00 Emblem, Yamahaエンブレム，ＹＡＭＡＨＡ; |
99246-00020-00 |
from US $9.07 |
||
| replacement | |||||
|
9
|
9
992-46000-80-00 Emblem (YAMAHA)エンブレム，ＹＡＭＡＨＡ; |
992-46000-80-00 |
from US $9.15 |
||
|
10
|
10
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.36 |
||
| replacement | |||||
|
10
|
10
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
11
|
11
90179-06520-00 Nut |
90179-06520-00 |
from US $6.38 |
||
|
12
|
12
90119-06190-00 Bolt, With Washer |
90119-06190-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
90119-06163-00 Bolt, With Washer |
90119-06163-00 |
from US $1.84 |
||
|
13
|
13
90480-13369-00 Grommet |
90480-13369-00 |
from US $2.50 |
||
| replacements | |||||
|
13
|
13
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.36 |
||
|
13
|
13
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
|
14
|
14
90387-065X7-00 Collarカラー; |
90387-065X7-00 |
from US $7.08 |
||
|
15
|
15
3SX-21629-00-00
Guard, Mud
ガード，マツド; |
3SX-21629-00-00 |
— | ||
|
16
|
16
3SX-21637-00-00
Clamp, Wire
|
3SX-21637-00-00 |
— | ||
|
17
|
17
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
18
|
18
4K5-28186-00-00 Pouchポーチ; |
4K5-28186-00-00 |
from US $13.88 |
||
|
19
|
19
4K5-2814E-10-00 Hook |
4K5-2814E-10-00 |
from US $3.26 |
||
|
20
|
20
3SX-2164F-00-00
Stay 1
ステー １; |
3SX-2164F-00-00 |
— | ||
|
21
|
21
3SX-2164G-00-00
Stay 2
ステー ２; |
3SX-2164G-00-00 |
— | ||
|
22
|
22
90267-40110-00 Rivet, Blind |
90267-40110-00 |
from US $1.70 |
||
|
23
|
23
46X-21376-00-00 Band, Toolバンド，ツール; |
46X-21376-00-00 |
from US $15.02 |
||
|
24
|
24
3SX-21651-00-95
Cover, Rear Fender
カバー，リヤフエンダ; ＵＲ シルバーヨウ |
3SX-21651-00-95 |
— | ||
|
24
|
24
3SX-21651-00-P0
Cover, Rear Fender
カバー，リヤフエンダ; ＵＲ ブラツクヨウ |
3SX-21651-00-P0 |
— | ||
|
25
|
25
1JK-21649-00-00 Damper |
1JK-21649-00-00 |
from US $4.39 |
||
| replacement | |||||
|
25
|
25
3AJ-28371-00-00 Damper |
3AJ-28371-00-00 |
from US $4.39 |
||
|
26
|
26
3SX-2837J-00-00 Damper 5 |
3SX-2837J-00-00 |
US $3.12 |
||
|
27
|
27
3SX-2163A-00-95
Cover, Rear Fender 1
カバー，リヤフエンダ １; ＵＲ シルバーヨウ |
3SX-2163A-00-95 |
— | ||
|
27
|
27
3SX-2163A-00-P0
Cover, Rear Fender 1
カバー，リヤフエンダ １; ＵＲ ブラツクヨウ |
3SX-2163A-00-P0 |
— | ||
|
28
|
28
3VN-2163G-01-00
Emblem 1
ＵＲ シルバーヨウ |
3VN-2163G-01-00 |
— | ||
|
28
|
28
3VN-2163G-11-00
Emblem 1
ＵＲ ブラツクヨウ |
3VN-2163G-11-00 |
— | ||
|
29
|
29
3SX-2163E-00-95
Cover, Rear Fender 2
カバー，リヤフエンダ ２; ＵＲ シルバーヨウ |
3SX-2163E-00-95 |
— | ||
|
29
|
29
3SX-2163E-00-P0
Cover, Rear Fender 2
カバー，リヤフエンダ ２; ＵＲ ブラツクヨウ |
3SX-2163E-00-P0 |
— | ||
|
30
|
30
3VN-2163H-01-00
Emblem 2
ＵＲ シルバーヨウ |
3VN-2163H-01-00 |
— | ||
|
30
|
30
3VN-2163H-11-00
Emblem 2
ＵＲブラツクヨウ |
3VN-2163H-11-00 |
— | ||
|
31
|
31
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
31
|
31
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
32
|
32
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
32
|
32
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
32
|
32
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
33
|
33
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
33
|
33
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
33
|
33
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
34
|
34
90183-04045-00 Nut, Spring |
90183-04045-00 |
from US $2.60 |
||
|
35
|
35
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.66 |
||
|
36
|
36
90480-01401-00 Grommet (41Y)グロメツト; |
90480-01401-00 |
from US $3.05 |
||
|
37
|
37
3SX-21639-00-00
Damper 2
|
3SX-21639-00-00 |
— | ||
|
38
|
38
3SX-21649-00-00
Damper
|
3SX-21649-00-00 |
— | ||
|
39
|
39
3SX-21746-00-00 Damper |
3SX-21746-00-00 |
US $2.13 |
||
|
40
|
40
3FA-21639-00-00 Damper 2 |
3FA-21639-00-00 |
from US $4.25 |
||
|
41
|
41
3SX-21778-00-00
Damper, Locating 1
ダンパ，ロケーテイング １; |
3SX-21778-00-00 |
— | ||
|
42
|
42
3SX-2177M-00-00
Damper, Locating 3
ダンパ，ロケーテイング ３; |
3SX-2177M-00-00 |
— | ||
|
43
|
43
3SX-2177N-00-00
Damper, Locating 4
ダンパ，ロケーテイング ４; |
3SX-2177N-00-00 |
— | ||
|
44
|
44
3SX-28100-00-00 Tool Kit (48Y-28100-00-00)ツールキツト; |
3SX-28100-00-00 |
US $148.07 |
||
| replacement | |||||
|
44
|
44
1LN-W2810-01-00
Tool Kit (48Y-28100-00-00)
ツールキツト; |
1LN-W2810-01-00 |
— | ||
|
45
|
45
1JK-28194-00-00
Oiler
オイラー; |
1JK-28194-00-00 |
— | ||
|
46
|
46
1HX-28135-00-00
Spanner, Special
|
1HX-28135-00-00 |
— | ||
|
47
|
47
3SX-21747-00-00
Damper
|
3SX-21747-00-00 |
— | ||
|
48
|
48
1JK-21652-00-00 Protectorプロテクター; |
1JK-21652-00-00 |
US $7.31 |
||
|
49
|
49
90201-040P8-00 Washer, Plateワツシヤ，プレーン; |
90201-040P8-00 |
from US $1.80 |
||
| replacement | |||||
|
49
|
49
90201-044H9-00 Washer, Plateワツシヤ，プレーン; |
90201-044H9-00 |
from US $1.84 |
||
|
50
|
50
3SX-25887-00-00
Holder, Brake Hose
ホルダ，ブレーキホース; |
3SX-25887-00-00 |
— | ||
