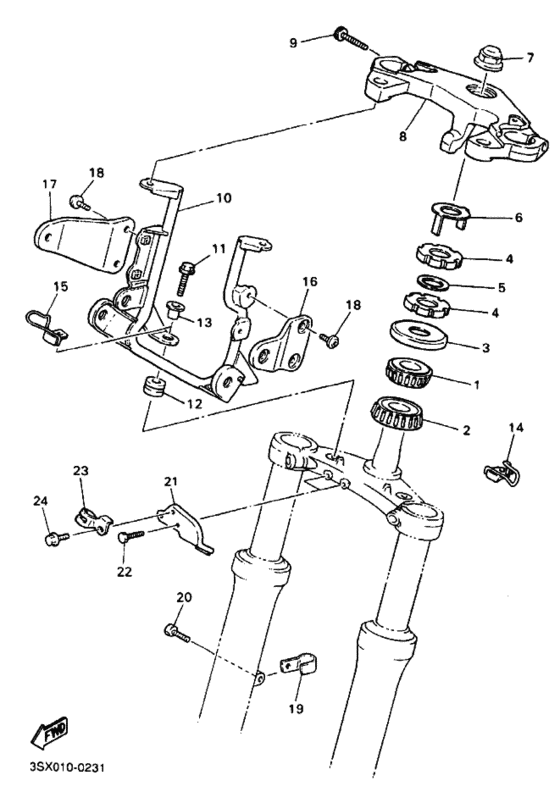

Steering Diagram Yamaha SRX600
- Year
- 1991
- Colour
- Black Metallic 2 (BM2; 0156)
- Model code
- 3SX2
- Sales region
- Japan (010)
- Engine Capacity
- 600
- Color Variant
- B
- Model
- SRX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00023-00 Bearing |
93332-00023-00 |
from US $22.53 |
||
| replacement | |||||
|
1
|
1
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
2
|
2
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
3
|
3
1J7-23415-00-00 Cover, Ball Race 1カバー，ボールレース １; |
1J7-23415-00-00 |
from US $4.16 |
||
|
4
|
4
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
4
|
4
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
4
|
4
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
5
|
5
90202-26142-00 Washer, Plateワツシヤ，プレート; |
90202-26142-00 |
from US $2.08 |
||
|
6
|
6
26H-23418-01-00 Washer, Special |
26H-23418-01-00 |
from US $7.77 |
||
|
7
|
7
90176-22050-00 Nut, Crown |
90176-22050-00 |
from US $15.44 |
||
| replacement | |||||
|
7
|
7
90176-22081-00 Nut, Crown |
90176-22081-00 |
from US $13.74 |
||
|
8
|
8
3SX-23435-00-00
Crown, Handle
|
3SX-23435-00-00 |
— | ||
|
9
|
9
91311-08030-00 Bolt, Hexagon Socket Head |
91311-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
91314-08030-00 Bolt, Hexagon Socket Head |
91314-08030-00 |
from US $1.18 |
||
|
10
|
10
1JK-23174-00-00
Stay, Headlight
ステー，ヘツドライト; |
1JK-23174-00-00 |
— | ||
|
11
|
11
95816-06030-00 Bolt, Flange(36Y) |
95816-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
12
|
12
90480-14105-00 Grommet |
90480-14105-00 |
from US $1.70 |
||
|
13
|
13
90387-06554-00 Collar, Lever 1カラー; |
90387-06554-00 |
from US $6.09 |
||
| replacement | |||||
|
13
|
13
36Y-83913-01-00 Collar, Lever 1カラー; |
36Y-83913-01-00 |
from US $6.09 |
||
|
14
|
14
3SX-2637G-00-00
Holder, Wire
ホルダ，ワイヤ; |
3SX-2637G-00-00 |
— | ||
|
15
|
15
3SX-2637H-00-00
Holder, Wire 2
ホルダ，ワイヤ ２; |
3SX-2637H-00-00 |
— | ||
|
16
|
16
1JK-23121-00-00
Cover, Upper 1
カバー，アツパ １; |
1JK-23121-00-00 |
— | ||
| replacements | |||||
|
16
|
16
3XC-23121-01-00
Cover, Upper 1
カバー，アツパ １; |
3XC-23121-01-00 |
— | ||
|
16
|
16
3XC-23121-00-00
Cover, Upper 1
カバー，アツパ １; |
3XC-23121-00-00 |
— | ||
|
17
|
17
1JK-23131-00-00
Cover, Upper 2
カバー，アツパ ２; |
1JK-23131-00-00 |
— | ||
| replacements | |||||
|
17
|
17
3XC-23131-01-00
Cover, Upper 2
カバー，アツパ ２; |
3XC-23131-01-00 |
— | ||
|
17
|
17
3XC-23131-00-00
Cover,upper 2
カバー，アツパ ２; |
3XC-23131-00-00 |
— | ||
|
18
|
18
901-49062-64-00
Screw(1Xl)
|
901-49062-64-00 |
— | ||
| replacement | |||||
|
18
|
18
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.81 |
||
|
19
|
19
3SX-25887-10-00
Holder, Brake Hose
ホルダ，ブレーキホース; ３ＶＮ−０６７２０１ |
3SX-25887-10-00 |
— | ||
|
20
|
20
95023-06016-00 Bolt, Flange (Small Head)ボルト; |
95023-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
95024-06016-00 Bolt, Flangeボルト; |
95024-06016-00 |
from US $1.56 |
||
|
21
|
21
3SX-21343-00-00
Bracket, Horn
ブラケツト，ホーン; |
3SX-21343-00-00 |
— | ||
|
22
|
22
913-16060-25-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-25-00 |
— | ||
| replacement | |||||
|
22
|
22
913-17060-25-00 Boltボルト，ヘキサゴンソケツトヘツド; |
913-17060-25-00 |
from US $1.39 |
||
|
23
|
23
3SX-25886-00-00
Holder, Brake Hose
ホルダ，ブレーキホース; |
3SX-25886-00-00 |
— | ||
|
24
|
24
95826-06010-00 Bolt, Flange |
95826-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
24
|
24
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
