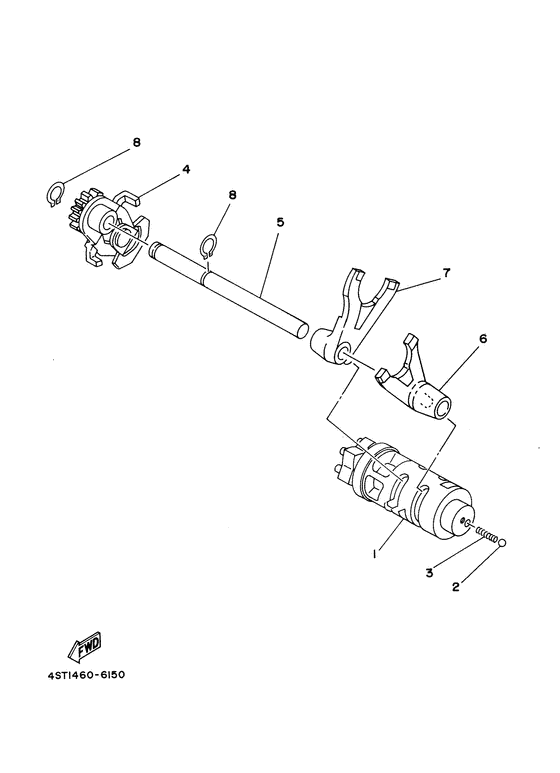

Shift Cam & Fork Diagram Yamaha T105 Crypton R
- Year
- 2002
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5ER3
- Sales region
- Greece (010)
- Engine Capacity
- 100
- Model
- T105
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5KT-18540-00-00
Shift cam assy
|
5KT-18540-00-00 |
— | ||
|
02
|
02
4BA-18542-00-00 Point, Neutral |
4BA-18542-00-00 |
from US $12.53 |
||
|
03
|
03
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.70 |
||
|
04
|
04
4GL-E8120-01-00
Shift lever assy
|
4GL-E8120-01-00 |
— | ||
|
05
|
05
4YS-E8531-00-00
Bar, shift fork guide 1
|
4YS-E8531-00-00 |
— | ||
|
06
|
06
5ER-18511-00-00
Fork, shift 1
|
5ER-18511-00-00 |
— | ||
|
07
|
07
5ER-18512-00-00
Fork, shift 2
|
5ER-18512-00-00 |
— | ||
|
08
|
08
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.50 |
