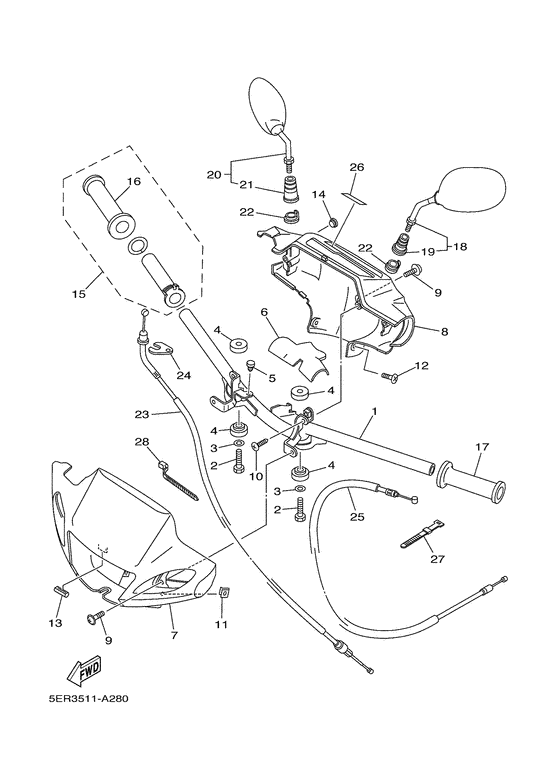

Steering handle & cable Diagram Yamaha T105 Crypton R
- Year
- 2002
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5ER3
- Sales region
- Greece (010)
- Engine Capacity
- 100
- Model
- T105
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4US-F6210-00-91
Handle
Zb |
4US-F6210-00-91 |
— | ||
| replacement | |||||
|
01
|
01
4US-F6210-00-00
Handle
Zb |
4US-F6210-00-00 |
— | ||
|
02
|
02
97007-08016-00 Bolt |
97007-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
02
|
02
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
03
|
03
90201-08612-00 Washer, Plate |
90201-08612-00 |
from US $2.69 |
||
| replacement | |||||
|
03
|
03
90201-088C4-00
Washer, Plate
|
90201-088C4-00 |
— | ||
|
04
|
04
3AY-F6113-00-00
Damper
|
3AY-F6113-00-00 |
— | ||
|
05
|
05
4US-F4724-00-00
Damper, Seat
|
4US-F4724-00-00 |
— | ||
|
06
|
06
4US-F6113-00-00
Damper
|
4US-F6113-00-00 |
— | ||
|
07
|
07
4US-F6143-00-33
Cover, Handlebar Upper 1
Yb |
4US-F6143-00-33 |
— | ||
|
07
|
07
4US-F6143-00-P4
Cover, Handlebar Upper 1
Vrc1 |
4US-F6143-00-P4 |
— | ||
|
07
|
07
4US-F6143-00-P5
Cover, handlebar upper 1
Lgm3 |
4US-F6143-00-P5 |
— | ||
|
08
|
08
4US-F6145-00-00
Cover, Handlebar Upper 2
|
4US-F6145-00-00 |
— | ||
|
09
|
09
90159-05028-00 Screw, With Washer |
90159-05028-00 |
from US $2.83 |
||
| replacement | |||||
|
09
|
09
90159-05121-00 Screw, With Washer |
90159-05121-00 |
from US $3.05 |
||
|
10
|
10
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
10
|
10
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
11
|
11
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
12
|
12
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
13
|
13
3AY-F622G-00-00
Damper, Locating
|
3AY-F622G-00-00 |
— | ||
|
14
|
14
4US-F6199-00-00 Plug, Blind |
4US-F6199-00-00 |
from US $3.40 |
||
|
15
|
15
4YY-F6240-00-00
Grip assy
|
4YY-F6240-00-00 |
— | ||
|
16
|
16
4YY-F6242-00-00
Grip (right)
|
4YY-F6242-00-00 |
— | ||
|
17
|
17
4YY-F6241-00-00
Gripѓ@(left)
|
4YY-F6241-00-00 |
— | ||
|
18
|
18
3XA-F6280-01-00
Rear View Mirror (Lh)
|
3XA-F6280-01-00 |
— | ||
|
19
|
19
3FS-F629T-00-00
Boot 1
|
3FS-F629T-00-00 |
— | ||
|
20
|
20
3XA-F6290-01-00
Rear View Mirror Assy (R)
|
3XA-F6290-01-00 |
— | ||
|
21
|
21
3FS-F629T-00-00
Boot 1
|
3FS-F629T-00-00 |
— | ||
|
22
|
22
3XA-F6326-01-00
Grommet
|
3XA-F6326-01-00 |
— | ||
|
23
|
23
5ER-F6311-00-00
Cable, throttle 1
|
5ER-F6311-00-00 |
— | ||
|
24
|
24
4ST-F6393-00-00
Holder
|
4ST-F6393-00-00 |
— | ||
|
25
|
25
5ER-F6331-00-00
Cable, starter 1
|
5ER-F6331-00-00 |
— | ||
|
26
|
26
4US-F6219-00-00
Emblem
|
4US-F6219-00-00 |
— | ||
|
27
|
27
3AY-H3936-10-00
Band, Switch Cord
|
3AY-H3936-10-00 |
— | ||
|
28
|
28
90460-15126-00 Clamp, Hose |
90460-15126-00 |
from US $1.56 |
||
