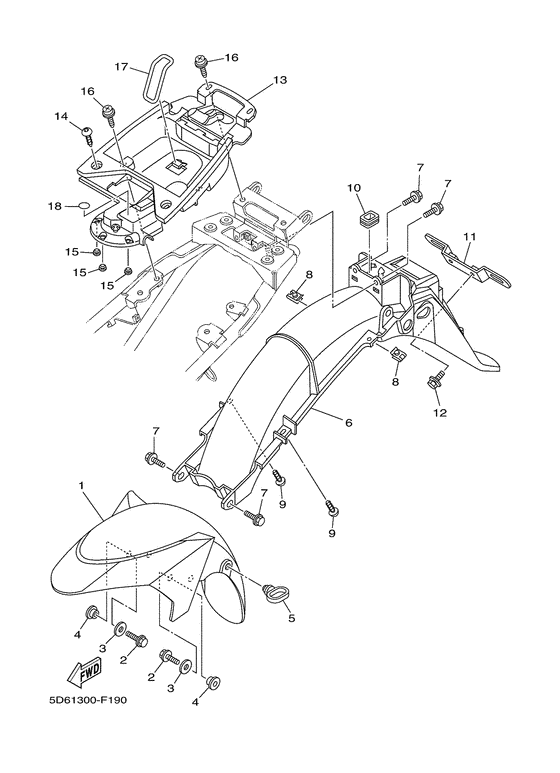

Fender Diagram Yamaha T135 Crypton X
- Year
- 2007
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5D62
- Sales region
- Europe (General) (010)
- Engine Capacity
- 135
- Model
- T135
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5YP-F1511-01-P7
Fender, Front
For mbm3 |
5YP-F1511-01-P7 |
— | ||
|
02
|
02
958-27060-16-00
Bolt, Flange
|
958-27060-16-00 |
— | ||
| replacement | |||||
|
02
|
02
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
03
|
03
90201-06072-00 Washer, Plate |
90201-06072-00 |
from US $1.28 |
||
|
04
|
04
90387-06804-00 Collar |
90387-06804-00 |
US $2.83 |
||
|
05
|
05
5R7-F1518-10-00 Holder, Cable |
5R7-F1518-10-00 |
US $4.53 |
||
|
06
|
06
5D6-F1611-00-00
Fender, Rear
|
5D6-F1611-00-00 |
— | ||
|
07
|
07
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
07
|
07
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
08
|
08
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
08
|
08
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
09
|
09
90160-05009-00 Screw, Round Tapping |
90160-05009-00 |
from US $1.42 |
||
|
10
|
10
90480-01807-00
Grommet
|
90480-01807-00 |
— | ||
|
11
|
11
5D6-F1685-00-00
Bracket, License
|
5D6-F1685-00-00 |
— | ||
|
12
|
12
90119-06119-00
Bolt, With Washer
|
90119-06119-00 |
— | ||
|
13
|
13
2S5-F160E-00-00
Box
|
2S5-F160E-00-00 |
— | ||
|
14
|
14
90160-05009-00 Screw, Round Tapping |
90160-05009-00 |
from US $1.42 |
||
|
15
|
15
5HV-F6199-00-00 Plug, Blind |
5HV-F6199-00-00 |
US $3.40 |
||
|
16
|
16
90159-06848-00
Screw, With Washer
|
90159-06848-00 |
— | ||
|
17
|
17
5VV-H2131-00-00 Band, Battery |
5VV-H2131-00-00 |
from US $2.68 |
||
|
18
|
18
5XV-F415E-00-00
Label, Caution
|
5XV-F415E-00-00 |
— | ||
