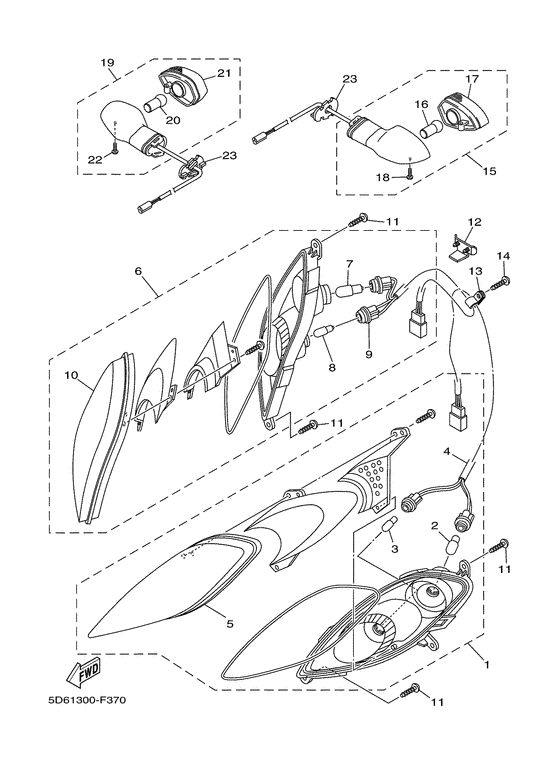

Flasher light Diagram Yamaha T135 Crypton X
- Year
- 2007
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5D62
- Sales region
- Europe (General) (010)
- Engine Capacity
- 135
- Model
- T135
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5D6-H3310-00-00
Front Flasher Light Assy 1
|
5D6-H3310-00-00 |
— | ||
|
02
|
02
5D6-H3311-00-00
Bulb, Flasher (12V-16W)
|
5D6-H3311-00-00 |
— | ||
|
03
|
03
5D6-H5353-00-00
Bulb (12V-3W)
|
5D6-H5353-00-00 |
— | ||
| replacement | |||||
|
03
|
03
5AV-H3517-00-00
Bulb(12V 3.4W)
|
5AV-H3517-00-00 |
— | ||
|
04
|
04
5D6-H331E-00-00
Cord Assy
|
5D6-H331E-00-00 |
— | ||
|
05
|
05
5D6-H3332-00-00
Lens, Flasher
|
5D6-H3332-00-00 |
— | ||
|
06
|
06
5D6-H3320-00-00
Front Flasher Light Assy 2
|
5D6-H3320-00-00 |
— | ||
|
07
|
07
5D6-H3311-00-00
Bulb, Flasher (12V-16W)
|
5D6-H3311-00-00 |
— | ||
|
08
|
08
5D6-H5353-00-00
Bulb (12V-3W)
|
5D6-H5353-00-00 |
— | ||
| replacement | |||||
|
08
|
08
5AV-H3517-00-00
Bulb(12V 3.4W)
|
5AV-H3517-00-00 |
— | ||
|
09
|
09
5D6-H332E-00-00
Cord Assy
|
5D6-H332E-00-00 |
— | ||
|
10
|
10
5D6-H3342-00-00
Lens, Flasher 2
|
5D6-H3342-00-00 |
— | ||
|
11
|
11
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
11
|
11
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
12
|
12
5VV-F835W-00-00
Holder, Wire
|
5VV-F835W-00-00 |
— | ||
|
13
|
13
90461-11800-00
Clamp
|
90461-11800-00 |
— | ||
|
14
|
14
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
14
|
14
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
15
|
15
5PW-83330-00-00 Rear Flasher Light Assy 1 |
5PW-83330-00-00 |
from US $60.57 |
||
|
16
|
16
1KH-83311-00-00
Bulb, Flasher
|
1KH-83311-00-00 |
— | ||
| replacements | |||||
|
16
|
16
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.82 |
||
|
16
|
16
NDH-H3311-00-01 Bulb |
NDH-H3311-00-01 |
US $8.91 |
||
|
17
|
17
5PW-8334A-00-00 Lens Comp 2 |
5PW-8334A-00-00 |
US $24.09 |
||
|
18
|
18
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
18
|
18
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
19
|
19
5PW-83340-00-00 Rear Flasher Light Assy 2 |
5PW-83340-00-00 |
from US $60.57 |
||
|
20
|
20
1KH-83311-00-00
Bulb, Flasher
|
1KH-83311-00-00 |
— | ||
| replacements | |||||
|
20
|
20
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.82 |
||
|
20
|
20
NDH-H3311-00-01 Bulb |
NDH-H3311-00-01 |
US $8.91 |
||
|
21
|
21
5PW-8333A-00-00 Lens Comp 1 |
5PW-8333A-00-00 |
US $24.09 |
||
|
22
|
22
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
22
|
22
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
23
|
23
2D1-83318-00-00 Stay, Flasher 1 |
2D1-83318-00-00 |
from US $3.47 |
||
