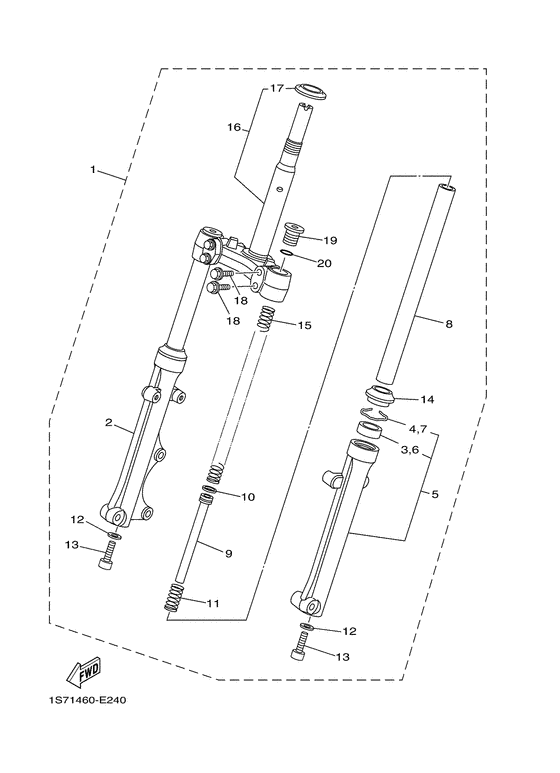

Front fork Diagram Yamaha T135 Crypton X
- Year
- 2007
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5D62
- Sales region
- Europe (General) (010)
- Engine Capacity
- 135
- Model
- T135
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5D6-F3100-10-00
Front Fork Assy
|
5D6-F3100-10-00 |
— | ||
|
02
|
02
5YP-F3136-10-00
Tube, Outer (Right)
|
5YP-F3136-10-00 |
— | ||
|
03
|
03
4XC-F3145-00-00 Oil Seal |
4XC-F3145-00-00 |
US $13.03 |
||
|
04
|
04
1T8-F3156-00-00 Ring, Snap |
1T8-F3156-00-00 |
US $1.42 |
||
|
05
|
05
5YP-F3126-10-00
Tube, Outer (Left)
|
5YP-F3126-10-00 |
— | ||
|
06
|
06
4XC-F3145-00-00 Oil Seal |
4XC-F3145-00-00 |
US $13.03 |
||
|
07
|
07
1T8-F3156-00-00 Ring, Snap |
1T8-F3156-00-00 |
US $1.42 |
||
|
08
|
08
5YP-F3110-00-00
Inner Tube Comp.1
|
5YP-F3110-00-00 |
— | ||
|
09
|
09
5YP-F3170-00-00
Cylinder Comp., Front Fork
|
5YP-F3170-00-00 |
— | ||
|
10
|
10
2JG-F3157-00-00 Ring, Piston |
2JG-F3157-00-00 |
US $1.98 |
||
|
11
|
11
5NM-F3152-00-00
Spring, Sub
|
5NM-F3152-00-00 |
— | ||
|
12
|
12
509-F3158-L0-00 Gasket |
509-F3158-L0-00 |
from US $3.54 |
||
| replacement | |||||
|
12
|
12
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
13
|
13
278-F3181-50-00 Bolt, Hexagon Socket Head |
278-F3181-50-00 |
US $4.82 |
||
|
14
|
14
4XC-F3144-00-00
Seal, Dust
|
4XC-F3144-00-00 |
— | ||
|
15
|
15
5D6-F3141-00-00
Spring, Front Fork
|
5D6-F3141-00-00 |
— | ||
|
16
|
16
5YP-F3340-00-00
Under Bracket Comp
|
5YP-F3340-00-00 |
— | ||
|
17
|
17
156-F3411-00-00 Race, Ball 1 |
156-F3411-00-00 |
US $16.29 |
||
| replacements | |||||
|
17
|
17
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
|
17
|
17
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
18
|
18
5YW-F3346-00-00
Bolt 1
|
5YW-F3346-00-00 |
— | ||
| replacement | |||||
|
18
|
18
5YW-F3346-10-00 Bolt 1 |
5YW-F3346-10-00 |
US $6.38 |
||
|
19
|
19
4VK-F3111-10-00
Bolt, Cap
|
4VK-F3111-10-00 |
— | ||
|
20
|
20
2JG-F3147-00-00 O-Ring |
2JG-F3147-00-00 |
US $6.38 |
||
