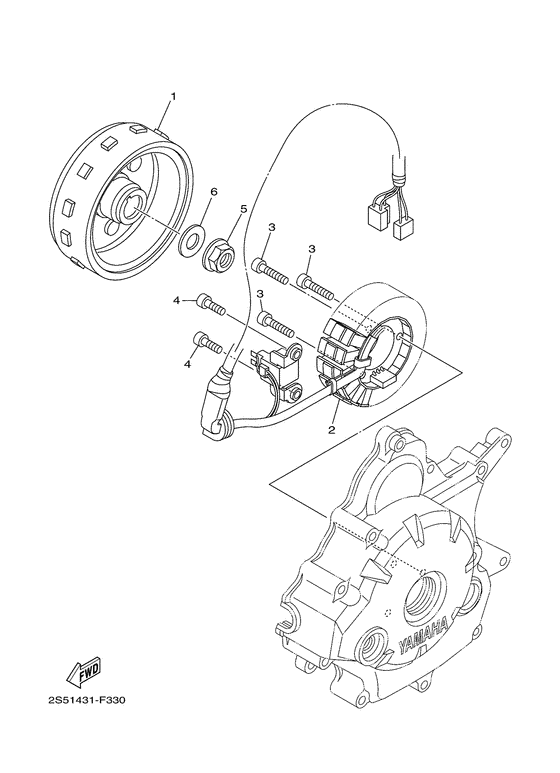

Generator Diagram Yamaha T135 Crypton X
- Year
- 2007
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5D62
- Sales region
- Europe (General) (010)
- Engine Capacity
- 135
- Model
- T135
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2S5-H1450-00-00
Rotor Assy
|
2S5-H1450-00-00 |
— | ||
|
02
|
02
2S5-H1410-00-00
Stator Assy
|
2S5-H1410-00-00 |
— | ||
| replacement | |||||
|
02
|
02
2S5-H1410-01-00
Stator Assy
|
2S5-H1410-01-00 |
— | ||
|
03
|
03
913-17060-30-00
Bolt
|
913-17060-30-00 |
— | ||
| replacement | |||||
|
03
|
03
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
04
|
04
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.39 |
||
|
05
|
05
95707-12500-00 Nut, Flange |
95707-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
05
|
05
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
05
|
05
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
06
|
06
90201-122H1-00 Washer, Plate (35T) |
90201-122H1-00 |
from US $3.83 |
||
