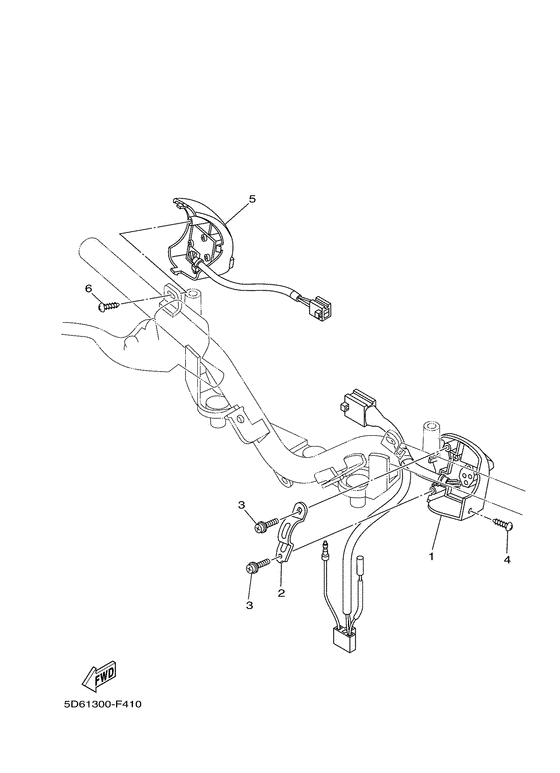

Handle switch & lever Diagram Yamaha T135 Crypton X
- Year
- 2007
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5D62
- Sales region
- Europe (General) (010)
- Engine Capacity
- 135
- Model
- T135
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5D6-H3973-00-00
Switch, Handle 3
|
5D6-H3973-00-00 |
— | ||
|
02
|
02
5TL-H3955-00-00
Bracket 1
|
5TL-H3955-00-00 |
— | ||
|
03
|
03
97607-05216-00
Screw,with Washer
|
97607-05216-00 |
— | ||
|
04
|
04
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
05
|
05
5VW-H3976-01-00
Switch, Handle 1
|
5VW-H3976-01-00 |
— | ||
|
06
|
06
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
06
|
06
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
