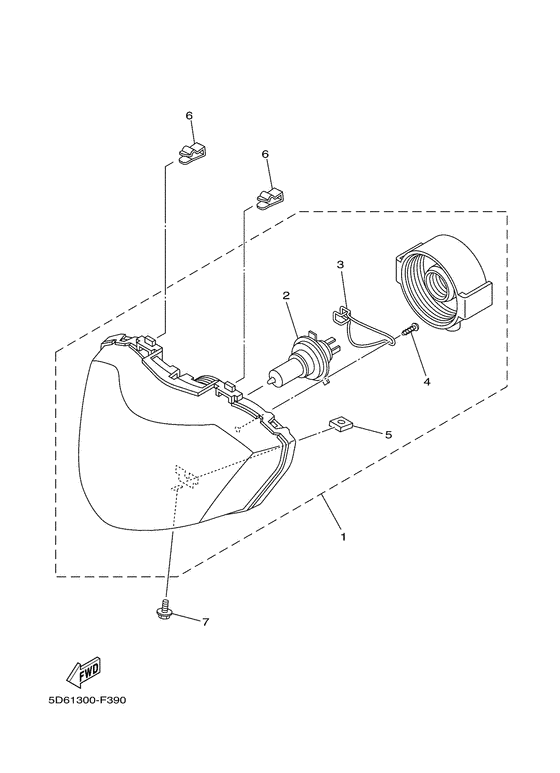

Headlight Diagram Yamaha T135 Crypton X
- Year
- 2007
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5D62
- Sales region
- Europe (General) (010)
- Engine Capacity
- 135
- Model
- T135
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5D6-H4310-00-00
Headlight Unit Assy
|
5D6-H4310-00-00 |
— | ||
|
02
|
02
5B9-H4314-00-00 Bulb, Headlight (12V 35/35W) |
5B9-H4314-00-00 |
US $33.72 |
||
| replacements | |||||
|
02
|
02
5B9-H4314-10-00
Bulb, Headlight
|
5B9-H4314-10-00 |
— | ||
|
02
|
02
1SB-H4314-00-00 Bulb, Headlight (1 |
1SB-H4314-00-00 |
US $21.82 |
||
|
02
|
02
5VL-H4314-10-00 Bulb, Headlight (12V-35/35W) |
5VL-H4314-10-00 |
US $17.57 |
||
|
03
|
03
5B9-H4393-00-00
Spring Support
|
5B9-H4393-00-00 |
— | ||
|
04
|
04
5B9-H4192-00-00 Screw, Special |
5B9-H4192-00-00 |
US $1.28 |
||
|
05
|
05
4NR-H4317-00-00 Nut |
4NR-H4317-00-00 |
US $1.28 |
||
|
06
|
06
5HV-H4374-00-00
Clip
|
5HV-H4374-00-00 |
— | ||
|
07
|
07
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
07
|
07
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
