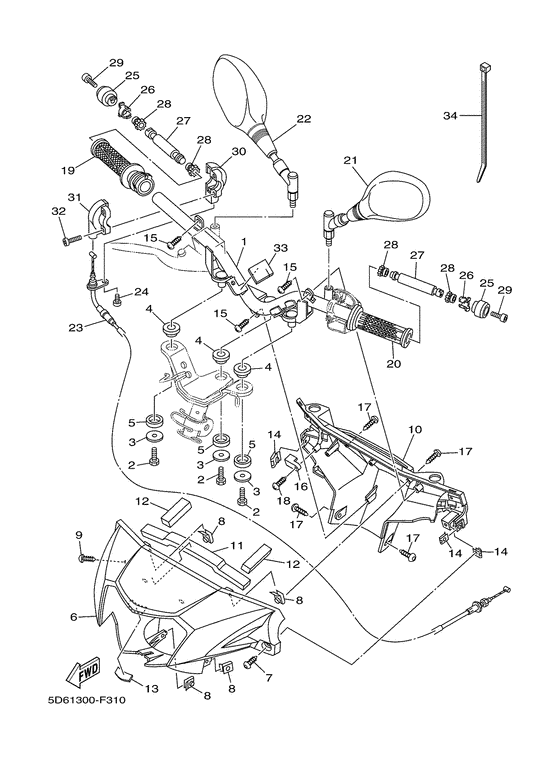

Steering handle & cable Diagram Yamaha T135 Crypton X
- Year
- 2007
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5D62
- Sales region
- Europe (General) (010)
- Engine Capacity
- 135
- Model
- T135
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5D6-F6210-00-00
Handle
|
5D6-F6210-00-00 |
— | ||
|
02
|
02
97007-08016-00 Bolt |
97007-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
02
|
02
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
03
|
03
90201-08612-00 Washer, Plate |
90201-08612-00 |
from US $2.69 |
||
| replacement | |||||
|
03
|
03
90201-088C4-00
Washer, Plate
|
90201-088C4-00 |
— | ||
|
04
|
04
5YP-F8217-00-00
Damper 1
|
5YP-F8217-00-00 |
— | ||
|
05
|
05
5YP-F8227-00-00
Damper 2
|
5YP-F8227-00-00 |
— | ||
|
06
|
06
5D6-F6143-00-P3
Cover,hand,.upper 1(0903,smx)
Smx for mbm3 |
5D6-F6143-00-P3 |
— | ||
|
07
|
07
90160-05009-00 Screw, Round Tapping |
90160-05009-00 |
from US $1.42 |
||
|
08
|
08
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
08
|
08
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
09
|
09
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
10
|
10
5D6-F6145-00-P3
Cover,hand,.upper 2(0903,smx)
Smx for mbm3 |
5D6-F6145-00-P3 |
— | ||
|
11
|
11
5D6-F622F-00-00
Damper, Locating 1
|
5D6-F622F-00-00 |
— | ||
|
12
|
12
5D6-F622G-00-00 Damper, Locating |
5D6-F622G-00-00 |
US $1.35 |
||
|
13
|
13
5D6-2639G-00-00
Seal
|
5D6-2639G-00-00 |
— | ||
|
14
|
14
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
14
|
14
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
15
|
15
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
15
|
15
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
16
|
16
5YP-F622K-00-00
Protector 1
|
5YP-F622K-00-00 |
— | ||
|
17
|
17
90160-05009-00 Screw, Round Tapping |
90160-05009-00 |
from US $1.42 |
||
|
18
|
18
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
19
|
19
5YP-F6240-00-00
Grip Assy
|
5YP-F6240-00-00 |
— | ||
|
20
|
20
5YP-F6241-00-00
Grip
|
5YP-F6241-00-00 |
— | ||
|
21
|
21
5VK-F6280-00-00 Rear View Mirror Assy (Left) |
5VK-F6280-00-00 |
US $194.81 |
||
|
22
|
22
5VK-F6290-00-00 Rear View Mirror Assy (Right) |
5VK-F6290-00-00 |
US $194.81 |
||
|
23
|
23
2S5-F6311-00-00
Cable, Throttle 1
|
2S5-F6311-00-00 |
— | ||
|
24
|
24
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
25
|
25
5D6-F6246-00-00
End, Grip
|
5D6-F6246-00-00 |
— | ||
|
26
|
26
5YP-F6257-00-00 Stopper |
5YP-F6257-00-00 |
US $1.84 |
||
|
27
|
27
5YP-F622H-00-00 Weight |
5YP-F622H-00-00 |
US $10.34 |
||
| replacement | |||||
|
27
|
27
5YP-F622H-10-00
Weight
|
5YP-F622H-10-00 |
— | ||
|
28
|
28
5YP-F622F-00-00 Damper, Locating 1 |
5YP-F622F-00-00 |
from US $1.66 |
||
|
29
|
29
913-17060-30-00
Bolt
|
913-17060-30-00 |
— | ||
| replacement | |||||
|
29
|
29
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
30
|
30
5VV-F6281-00-00
Cap, Grip Upper
|
5VV-F6281-00-00 |
— | ||
|
31
|
31
5YP-F6282-00-00
Cap, Grip Under
|
5YP-F6282-00-00 |
— | ||
|
32
|
32
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
33
|
33
5YP-F317J-00-00
Damper 1
|
5YP-F317J-00-00 |
— | ||
|
34
|
34
90464-75800-00
Clamp
|
90464-75800-00 |
— | ||
