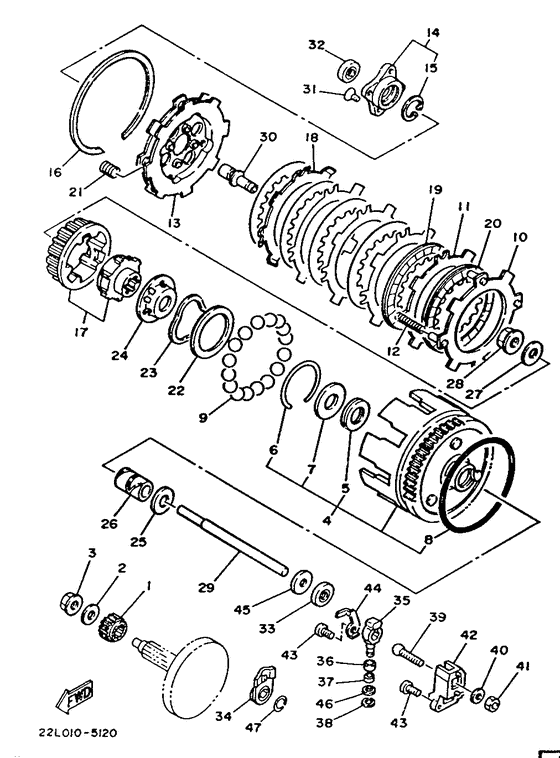

Clutch Diagram Yamaha T80 Town Mate
- Year
- 1986
- Colour
- New High Sparkle Blue (NHB; 001H)
- Model code
- 2FL
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- T80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
22K-15111-00-00
Crankcase 1
|
22K-15111-00-00 |
— | ||
|
02
|
02
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
02
|
02
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
03
|
03
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
03
|
03
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
04
|
04
22K-16150-02-00 Primary Driven Gear Comp |
22K-16150-02-00 |
from US $217.57 |
||
|
05
|
05
93341-22302-00
Bearing, Flat #41
|
93341-22302-00 |
— | ||
|
06
|
06
93450-42112-00 Circlip |
93450-42112-00 |
from US $1.62 |
||
|
07
|
07
22F-16153-00-00
Washer, Thrust
Ur |
22F-16153-00-00 |
— | ||
|
07
|
07
22F-16153-10-00
Washer, Thrust
Ur |
22F-16153-10-00 |
— | ||
|
07
|
07
22F-16153-30-00
Washer, Thrust
Ur |
22F-16153-30-00 |
— | ||
|
07
|
07
22F-16153-40-00 Washer, ThrustUr |
22F-16153-40-00 |
from US $10.72 |
||
|
08
|
08
93211-04665-00
O-Ring
|
93211-04665-00 |
— | ||
|
09
|
09
93505-08030-00 Ball |
93505-08030-00 |
from US $1.84 |
||
|
10
|
10
22K-16520-00-00
Plate, Thrust Weight
|
22K-16520-00-00 |
— | ||
|
11
|
11
517-16524-20-00 Plate, Clutch 1 (1.4T)Ur |
517-16524-20-00 |
from US $17.28 |
||
|
11
|
11
517-16524-30-00 Plate, Clutch 1 (1.6T)Ur |
517-16524-30-00 |
from US $9.44 |
||
|
11
|
11
517-16524-10-00 Plate, Clutch 1 (1.2T)Ur |
517-16524-10-00 |
from US $11.46 |
||
|
12
|
12
90501-10786-00
Spring, Compression
|
90501-10786-00 |
— | ||
|
13
|
13
22F-16550-00-00 Pressure Plate Assy |
22F-16550-00-00 |
from US $26.74 |
||
|
14
|
14
22K-16590-00-00 Push Plate Assy |
22K-16590-00-00 |
from US $44.99 |
||
|
15
|
15
93420-27069-00 Circlip |
93420-27069-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
93420-26077-00 Circlip |
93420-26077-00 |
from US $1.70 |
||
|
16
|
16
93451-08094-00 Circlip |
93451-08094-00 |
from US $4.82 |
||
|
17
|
17
22K-W1657-00-00 Clutch Boss Set |
22K-W1657-00-00 |
from US $149 |
||
| replacement | |||||
|
17
|
17
22K-16570-00-00 Clutch Boss Assy |
22K-16570-00-00 |
from US $128.07 |
||
|
18
|
18
22F-16524-00-00 Plate, Clutch 1 |
22F-16524-00-00 |
from US $7.45 |
||
| replacement | |||||
|
18
|
18
22F-16524-01-00 Plate, Clutch 1 |
22F-16524-01-00 |
from US $9.21 |
||
|
19
|
19
3E5-16521-00-00 Plate, Friction |
3E5-16521-00-00 |
from US $17.62 |
||
|
20
|
20
22F-16521-00-00 Plate, Friction |
22F-16521-00-00 |
from US $18.31 |
||
|
21
|
21
90501-13771-00
Spring, Compression
|
90501-13771-00 |
— | ||
|
22
|
22
22F-16144-00-00 Washer |
22F-16144-00-00 |
from US $2.02 |
||
|
23
|
23
22F-16318-00-00 Spring, Damper |
22F-16318-00-00 |
US $5.81 |
||
|
24
|
24
22K-16129-01-00 Plate, Thrust |
22K-16129-01-00 |
US $8.51 |
||
| replacement | |||||
|
24
|
24
22K-16129-02-00 Plate, Thrust |
22K-16129-02-00 |
from US $8.51 |
||
|
25
|
25
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
26
|
26
90560-17146-00 Spacer |
90560-17146-00 |
from US $20.26 |
||
|
27
|
27
90201-142J3-00 Washer, Plate |
90201-142J3-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
28
|
28
90179-14469-00 Nut |
90179-14469-00 |
from US $3.54 |
||
|
29
|
29
22F-16357-01-00 Rod, Push 2 |
22F-16357-01-00 |
from US $13.70 |
||
|
30
|
30
22K-16356-00-00 Rod, Push 1 |
22K-16356-00-00 |
from US $19.84 |
||
|
31
|
31
90151-06028-00 Screw, Flat Head |
90151-06028-00 |
from US $2.41 |
||
| replacement | |||||
|
31
|
31
98707-06012-00 Screw, Flat Head |
98707-06012-00 |
from US $2.09 |
||
|
32
|
32
93104-10076-00 Oil Seal |
93104-10076-00 |
from US $3.38 |
||
|
33
|
33
931-02072-92-00 Oil Seal |
931-02072-92-00 |
from US $4.64 |
||
|
34
|
34
22F-16362-01-00 Lever, Push 2 |
22F-16362-01-00 |
from US $20.56 |
||
|
35
|
35
22F-16342-01-00 Lever, Push |
22F-16342-01-00 |
from US $19.83 |
||
|
36
|
36
90387-062G9-00 Collar |
90387-062G9-00 |
from US $4.11 |
||
|
37
|
37
90387-062G8-00 Collar |
90387-062G8-00 |
from US $4.57 |
||
|
38
|
38
99001-04600-00 Circlip |
99001-04600-00 |
from US $1.63 |
||
| replacement | |||||
|
38
|
38
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
39
|
39
22F-16382-00-00 Axle, Push Lever |
22F-16382-00-00 |
from US $5.73 |
||
|
40
|
40
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
40
|
40
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
40
|
40
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
40
|
40
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
41
|
41
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
41
|
41
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
42
|
42
22F-16399-00-00 Guide, Push Rod |
22F-16399-00-00 |
from US $39.73 |
||
|
43
|
43
92501-06014-00 Screw, Pan Head (97801-06014) |
92501-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
43
|
43
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
44
|
44
22F-16383-00-00 Spring.,cushion |
22F-16383-00-00 |
from US $4.66 |
||
|
45
|
45
90380-07118-00 Bush, Solid |
90380-07118-00 |
from US $7.93 |
||
|
46
|
46
22F-16163-00-00 Washer, Thrust 2 |
22F-16163-00-00 |
from US $1.31 |
||
|
47
|
47
93440-11128-00 Circlip |
93440-11128-00 |
from US $1.47 |
||
