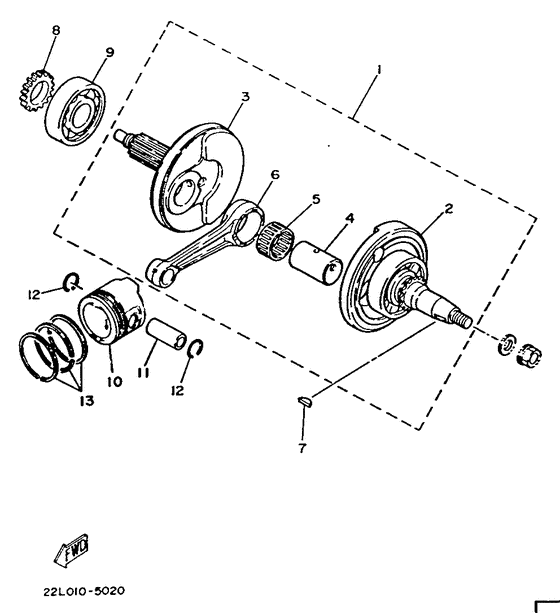

Crankshaft & Piston Diagram Yamaha T80 Town Mate
- Year
- 1986
- Colour
- New High Sparkle Blue (NHB; 001H)
- Model code
- 2FL
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- T80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
22K-11400-01-00 Crankshaft Assy |
22K-11400-01-00 |
US $316.78 |
||
|
02
|
02
22K-W1141-00-00 Crank Sub Assy 1 |
22K-W1141-00-00 |
from US $106.27 |
||
|
03
|
03
22K-11422-00-00 Crank 2 |
22K-11422-00-00 |
from US $62.87 |
||
|
04
|
04
22F-11681-00-00 Pin, Crank 1 |
22F-11681-00-00 |
US $33.16 |
||
|
05
|
05
93311-32353-00 Bearing |
93311-32353-00 |
US $32.60 |
||
|
06
|
06
22K-11651-02-00
Rod, Connecting
|
22K-11651-02-00 |
— | ||
|
07
|
07
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
08
|
08
46J-13324-00-00 Gear, Pump Drive |
46J-13324-00-00 |
from US $19.13 |
||
|
09
|
09
93306-30435-00 Bearing |
93306-30435-00 |
from US $32.44 |
||
| replacements | |||||
|
09
|
09
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
09
|
09
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
|
10
|
10
22K-11631-02-00 Piston (Std) |
22K-11631-02-00 |
US $64.11 |
||
| replacement | |||||
|
10
|
10
55X-11631-00-96 Piston (Std) |
55X-11631-00-96 |
from US $64.11 |
||
|
10
|
10
22K-11636-02-00 Piston (0.50Mm O/s)Ap |
22K-11636-02-00 |
US $64.11 |
||
| replacement | |||||
|
10
|
10
55X-11636-00-00 Piston (0.50Mm O/s)Ap |
55X-11636-00-00 |
from US $64.11 |
||
|
10
|
10
22K-11638-02-00 Piston (1.00Mm O/s)Ap |
22K-11638-02-00 |
US $64.11 |
||
| replacement | |||||
|
10
|
10
55X-11638-00-00 Piston (1.00Mm O/s)Ap |
55X-11638-00-00 |
from US $64.11 |
||
|
11
|
11
22K-11633-01-00 Pin, Piston |
22K-11633-01-00 |
from US $10.91 |
||
|
12
|
12
93450-14088-00 Circlip |
93450-14088-00 |
from US $1.70 |
||
|
13
|
13
22K-11610-01-00 Piston Ring Set |
22K-11610-01-00 |
from US $51.40 |
||
| replacement | |||||
|
13
|
13
55X-11610-00-00 Piston Ring Set (Std) |
55X-11610-00-00 |
from US $51.40 |
||
|
13
|
13
22K-11610-21-00 Piston Ring SetAp |
22K-11610-21-00 |
US $45.81 |
||
| replacement | |||||
|
13
|
13
55X-11610-20-00 Piston Ring Set (0.50Mm O/s)Ap |
55X-11610-20-00 |
US $75.46 |
||
|
13
|
13
22K-11610-41-00 Piston Ring SetAp |
22K-11610-41-00 |
from US $44.71 |
||
| replacement | |||||
|
13
|
13
55X-11610-40-00 Piston Ring Set (1.00Mm O/s)Ap |
55X-11610-40-00 |
from US $51.40 |
||
