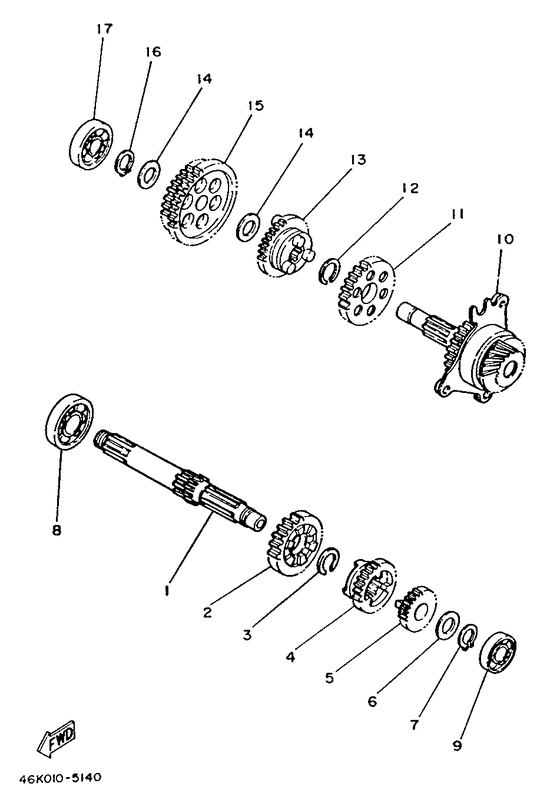

Transmission Diagram Yamaha T80 Town Mate
- Year
- 1986
- Colour
- New High Sparkle Blue (NHB; 001H)
- Model code
- 2FL
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- T80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
29F-17411-00-00 Axle, Main |
29F-17411-00-00 |
US $154.06 |
||
| replacement | |||||
|
01
|
01
29F-17411-01-00 Axle, Main (29F-17411-00-00) |
29F-17411-01-00 |
US $153.97 |
||
|
02
|
02
29F-17141-02-00
Gear, 4Th Pinion
|
29F-17141-02-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
93440-16030-00 Circlip |
93440-16030-00 |
from US $2.13 |
||
| replacement | |||||
|
03
|
03
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
04
|
04
29F-17131-02-00
Gear, 3Rd Pinion
|
29F-17131-02-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
29F-17121-00-00 Gear, 2Nd Pinion |
29F-17121-00-00 |
US $65.15 |
||
|
06
|
06
90201-132G6-00
Washer, Plate (55X)
|
90201-132G6-00 |
— | ||
|
07
|
07
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
08
|
08
933-06203-16-00
Bearing
|
933-06203-16-00 |
— | ||
| replacement | |||||
|
08
|
08
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
09
|
09
93306-00105-00 Bearing |
93306-00105-00 |
from US $9.44 |
||
|
10
|
10
29F-17402-00-00
Drive Axle Assy
|
29F-17402-00-00 |
— | ||
|
11
|
11
29F-17231-00-00
Gear, 3Rd Wheel
|
29F-17231-00-00 |
— | ||
|
12
|
12
93440-16030-00 Circlip |
93440-16030-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
13
|
13
29F-17241-00-00
Gear, 4Th Wheel
|
29F-17241-00-00 |
— | ||
|
14
|
14
90201-132G5-00 Washer, Plate |
90201-132G5-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
15
|
15
29F-17211-00-00 Gear, 1St Wheel |
29F-17211-00-00 |
US $110.58 |
||
|
16
|
16
990-09124-00-00 Circlip |
990-09124-00-00 |
from US $1.66 |
||
|
17
|
17
93306-30101-00 Bearing |
93306-30101-00 |
from US $9.57 |
||
