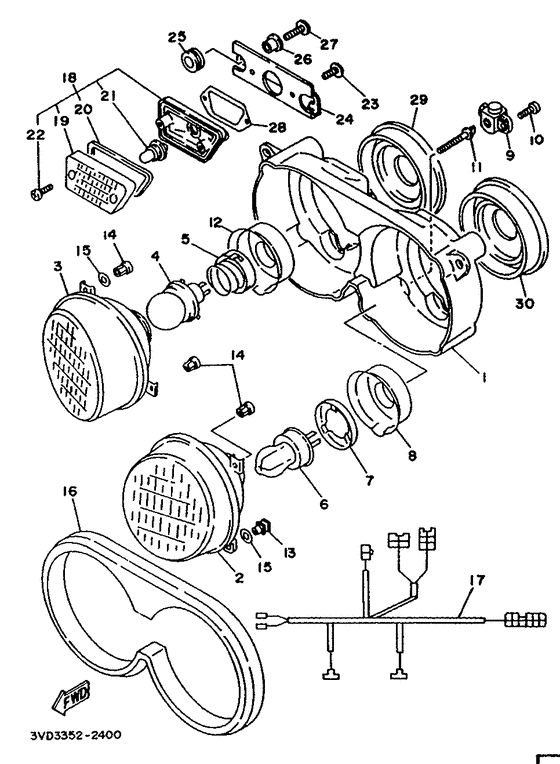

Headlight Diagram Yamaha TDM850
- Year
- 1992
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 3VD3
- Sales region
- Spain (999)
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VD-84330-00-00
Body Assembly
|
3VD-84330-00-00 |
— | ||
|
02
|
02
3VD-84320-20-00
Lens Assy
|
3VD-84320-20-00 |
— | ||
|
03
|
03
3VD-8432A-20-00
Lens Assy
|
3VD-8432A-20-00 |
— | ||
|
05
|
05
341-84393-40-00
Holder, Bulb (Germany)
|
341-84393-40-00 |
— | ||
|
07
|
07
2E9-84397-01-00
Cover, Socket
|
2E9-84397-01-00 |
— | ||
|
09
|
09
3MA-8430M-00-00 Gear Unit Assembly |
3MA-8430M-00-00 |
US $30.13 |
||
| replacement | |||||
|
09
|
09
3LD-8430M-00-00 Gear Unit Assembly |
3LD-8430M-00-00 |
US $30.13 |
||
|
10
|
10
97706-40616-00 Screw, Tapping |
97706-40616-00 |
from US $1.26 |
||
| replacement | |||||
|
10
|
10
97707-40616-00 Screw, Tapping |
97707-40616-00 |
from US $1.42 |
||
|
11
|
11
2AX-84331-00-00
Screw, Rim Adjusting
|
2AX-84331-00-00 |
— | ||
|
12
|
12
24X-84331-00-00
Screw, Rim Adjusting
|
24X-84331-00-00 |
— | ||
|
13
|
13
3AJ-8431U-00-00 Holder |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
14
|
14
51L-84334-00-00 Nut, Adjusting |
51L-84334-00-00 |
from US $10.55 |
||
|
15
|
15
3GM-84344-00-00
Washer, Plain
|
3GM-84344-00-00 |
— | ||
|
16
|
16
3HE-84366-00-00
Damper, Headlight 1
|
3HE-84366-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
3VD-84359-10-00 Cord, Headlight |
3VD-84359-10-00 |
US $225.32 |
||
|
18
|
18
3GM-84301-00-00 Pilot Light Assy 1 |
3GM-84301-00-00 |
from US $56.66 |
||
| replacement | |||||
|
18
|
18
3GM-84301-01-00 Pilot Light Assy 1 |
3GM-84301-01-00 |
from US $56.23 |
||
|
19
|
19
3GM-84321-00-00 Lens Assy |
3GM-84321-00-00 |
from US $6.23 |
||
|
20
|
20
3GM-84322-00-00
Gasket, Lens
|
3GM-84322-00-00 |
— | ||
| replacement | |||||
|
20
|
20
1TX-83313-00-00
Gasket, Flshr Lens
|
1TX-83313-00-00 |
— | ||
|
21
|
21
2JE-84744-00-00 Bulb (12V-5W) |
2JE-84744-00-00 |
from US $2.83 |
||
| replacements | |||||
|
21
|
21
4SV-84347-00-00 Bulb (12V-5W) |
4SV-84347-00-00 |
from US $3.05 |
||
|
21
|
21
1WD-H4744-00-00 Bulb (12V-5W) |
1WD-H4744-00-00 |
from US $6.23 |
||
|
21
|
21
1RC-84347-00-00 Bulb (12V-5W) |
1RC-84347-00-00 |
from US $5.41 |
||
|
21
|
21
1JD-H4347-00-00 Bulb (W3W-12V) |
1JD-H4347-00-00 |
US $4.68 |
||
|
21
|
21
3WW-H4347-00-00
Bulb
|
3WW-H4347-00-00 |
— | ||
|
22
|
22
3GM-84192-00-00
Screw(M4,l=12)
|
3GM-84192-00-00 |
— | ||
|
23
|
23
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
23
|
23
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
24
|
24
3GM-8431R-00-00
Stay, Setting
|
3GM-8431R-00-00 |
— | ||
|
25
|
25
90480-10517-00 Grommet |
90480-10517-00 |
from US $1.98 |
||
|
26
|
26
90387-052U5-00 Collar |
90387-052U5-00 |
from US $1.98 |
||
| replacement | |||||
|
26
|
26
903-87050-26-00 Collar |
903-87050-26-00 |
from US $1.40 |
||
|
27
|
27
90167-05037-00 Screw, Tapping |
90167-05037-00 |
from US $1.21 |
||
|
28
|
28
3GM-84367-10-00
Damper, Headlight 2
|
3GM-84367-10-00 |
— | ||
|
29
|
29
2LA-84397-00-00
Cover, Socket
|
2LA-84397-00-00 |
— | ||
|
30
|
30
2LA-84397-10-00
Cover, Socket
|
2LA-84397-10-00 |
— | ||
