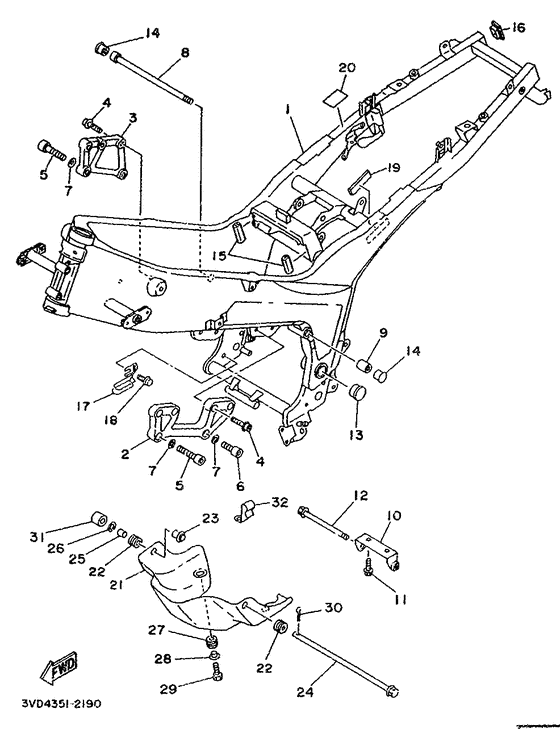

Frame Diagram Yamaha TDM850
- Year
- 1992
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4CF2
- Sales region
- Oceania (999)
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VD-21110-01-LY FrameMidnight gray |
3VD-21110-01-LY |
US $2,744.39 |
||
| replacement | |||||
|
01
|
01
3VD-21110-10-LY
Frame Comp
Midnight gray |
3VD-21110-10-LY |
— | ||
|
02
|
02
3VD-21411-00-00
Bracket, Engine 1
|
3VD-21411-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
3VD-21419-01-00 Bracket, Engine 2 |
3VD-21419-01-00 |
US $156.87 |
||
| replacement | |||||
|
03
|
03
3VD-21419-10-T9
Bracket, Engine 2
|
3VD-21419-10-T9 |
— | ||
|
04
|
04
90109-085F7-00 Bolt |
90109-085F7-00 |
US $4.11 |
||
| replacement | |||||
|
04
|
04
90109-082A1-00 Bolt |
90109-082A1-00 |
from US $4.11 |
||
|
05
|
05
91316-10045-00 Bolt |
91316-10045-00 |
from US $4.11 |
||
| replacements | |||||
|
05
|
05
91312-10045-00 Bolt |
91312-10045-00 |
from US $3.60 |
||
|
05
|
05
91317-10045-00 Bolt |
91317-10045-00 |
from US $4.11 |
||
|
06
|
06
91316-10030-00 Bolt |
91316-10030-00 |
from US $4.25 |
||
| replacement | |||||
|
06
|
06
91317-10030-00 Bolt, Socket |
91317-10030-00 |
from US $4.25 |
||
|
07
|
07
90201-100F7-00 Washer (7A9) |
90201-100F7-00 |
from US $2.27 |
||
|
08
|
08
90110-10175-00 Bolt, Hex Skt Headhexagon Socke |
90110-10175-00 |
US $10.67 |
||
| replacement | |||||
|
08
|
08
90110-10229-00
Bolt, Hexagon Socket Head
|
90110-10229-00 |
— | ||
|
09
|
09
90179-10377-00 Nut |
90179-10377-00 |
from US $8.28 |
||
| replacement | |||||
|
09
|
09
90179-10013-00 Nut |
90179-10013-00 |
from US $9.07 |
||
|
10
|
10
3VD-21489-00-00
Bracket, Eng Lowerengine Lower
|
3VD-21489-00-00 |
— | ||
|
11
|
11
958-21080-20-00
Bolt, Flange (95811-08020-00)
|
958-21080-20-00 |
— | ||
| replacement | |||||
|
11
|
11
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
12
|
12
90105-10328-00 Bolt, Washer Based(37F) |
90105-10328-00 |
from US $9.92 |
||
| replacement | |||||
|
12
|
12
90105-10712-00 Bolt, Flange |
90105-10712-00 |
from US $9.98 |
||
|
13
|
13
3SX-2135F-00-00 Cover |
3SX-2135F-00-00 |
from US $11.05 |
||
|
14
|
14
3LD-2143A-00-00
Cap
|
3LD-2143A-00-00 |
— | ||
|
15
|
15
3VD-24188-00-00 Mold, Fuel Tank |
3VD-24188-00-00 |
from US $6.52 |
||
| replacement | |||||
|
15
|
15
1HX-24188-01-00 Mold, Fuel Tank |
1HX-24188-01-00 |
from US $9.35 |
||
|
16
|
16
2VD-2143A-00-00
Cap
|
2VD-2143A-00-00 |
— | ||
|
17
|
17
3VD-21164-00-00 Holder, Wire |
3VD-21164-00-00 |
US $21.06 |
||
|
18
|
18
95826-06010-00 Bolt, Flange |
95826-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
19
|
19
34M-21639-00-00
Damper 2
|
34M-21639-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
3YL-12232-00-00 Damper |
3YL-12232-00-00 |
from US $1.98 |
||
| replacement | |||||
|
20
|
20
5H0-8235Y-M0-00 Damper |
5H0-8235Y-M0-00 |
from US $1.98 |
||
|
21
|
21
3VD-15491-00-00
Protector
|
3VD-15491-00-00 |
— | ||
|
22
|
22
90480-15397-00 Grommet |
90480-15397-00 |
from US $2.41 |
||
|
23
|
23
3VD-15764-00-00
Collar 1
|
3VD-15764-00-00 |
— | ||
|
24
|
24
3VD-15659-00-00
Shaft
|
3VD-15659-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
3VD-15327-00-00
Spacer, Eng Mount
|
3VD-15327-00-00 |
— | ||
|
26
|
26
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
26
|
26
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
27
|
27
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
28
|
28
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
29
|
29
97001-06025-00 Bolt(53L) |
97001-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
30
|
30
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
30
|
30
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
31
|
31
10V-25188-00-00
Cap
|
10V-25188-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
90465-08252-00 Clamp |
90465-08252-00 |
US $2.41 |
||
| replacement | |||||
|
32
|
32
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
