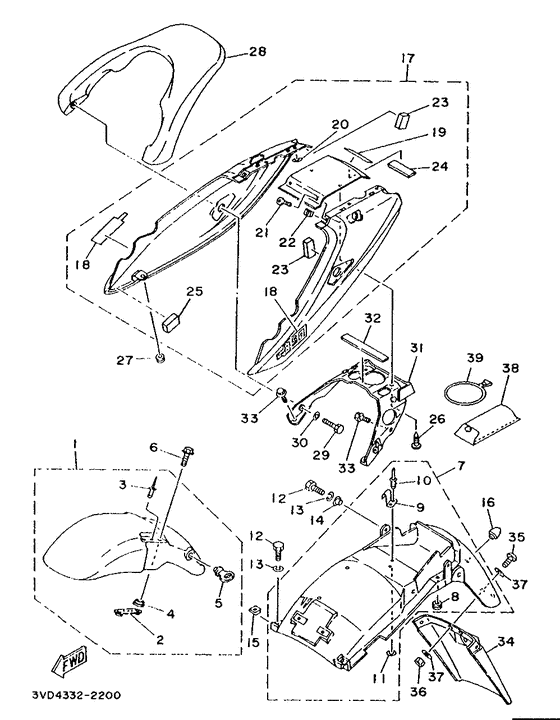

Fender Diagram Yamaha TDM850
- Year
- 1992
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4CM2
- Sales region
- Germany (999)
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VD-Y2151-00-4B
Front Fender Assy
Ur black2 |
3VD-Y2151-00-4B |
— | ||
| replacement | |||||
|
01
|
01
3VD-W2151-00-PD
Front Fender Comp
Ur black2 |
3VD-W2151-00-PD |
— | ||
|
01
|
01
3VD-Y2151-00-P1
Front Fender Comp
Ur light bluish gray metallic |
3VD-Y2151-00-P1 |
— | ||
|
01
|
01
3VD-Y2151-00-PO
Front fender comp
Ur vivid red cocktail 1 |
3VD-Y2151-00-PO |
— | ||
|
02
|
02
3GM-21512-00-00 Bracket, Fender |
3GM-21512-00-00 |
from US $8.08 |
||
|
03
|
03
90267-32071-00 Rivet, Blind |
90267-32071-00 |
from US $2.05 |
||
|
04
|
04
90387-065T2-00 Collar |
90387-065T2-00 |
from US $3.68 |
||
|
05
|
05
1A8-21518-00-00 Holder, Cable |
1A8-21518-00-00 |
from US $4.53 |
||
|
06
|
06
90105-06605-00 Bolt, Flg.(Small Head) |
90105-06605-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
95024-06020-00 Bolt, Flange (Small Head) |
95024-06020-00 |
from US $1.66 |
||
|
07
|
07
3VD-21366-00-00 Hook, Tool Band |
3VD-21366-00-00 |
from US $10.71 |
||
|
08
|
08
90480-10258-00 Grommet |
90480-10258-00 |
from US $1.98 |
||
|
09
|
09
3VD-21366-00-00 Hook, Tool Band |
3VD-21366-00-00 |
from US $10.71 |
||
|
10
|
10
90267-40073-00 Rivet, Blind |
90267-40073-00 |
from US $3.26 |
||
| replacement | |||||
|
10
|
10
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
11
|
11
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
12
|
12
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
13
|
13
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
90387-07717-00 Collar |
90387-07717-00 |
from US $2.36 |
||
|
15
|
15
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
16
|
16
4GO-21639-00-00
Damper 2
|
4GO-21639-00-00 |
— | ||
|
17
|
17
3VD-W247K-00-4B
Cover, Tail Assy
Ur black 2 |
3VD-W247K-00-4B |
— | ||
| replacement | |||||
|
17
|
17
3VD-W247K-00-P6
Cover, Tail Assy
Ur black 2 |
3VD-W247K-00-P6 |
— | ||
|
17
|
17
3VD-W247K-10-PO
Cover, tail assy
Ur vivid red cocktail 1 |
3VD-W247K-10-PO |
— | ||
|
17
|
17
3VD-W247K-20-P1
Cover, Tail Assy
Ur light bluish gray metallic |
3VD-W247K-20-P1 |
— | ||
|
18
|
18
3VD-21737-00-00
Emblem
Ur fur bl2 |
3VD-21737-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
Ur fur bl2 |
999-99999-99-00 |
— | ||
|
18
|
18
3VD-21737-10-00
Emblem
Ur fur vrc1 |
3VD-21737-10-00 |
— | ||
|
18
|
18
3VD-21737-20-00
Emblem
Ur fur lbgm2 |
3VD-21737-20-00 |
— | ||
|
19
|
19
99236-00020-00 Emblem, Yamaha (Silver)Ur fur bl2,vrc1 |
99236-00020-00 |
from US $9.07 |
||
| replacement | |||||
|
19
|
19
992-46000-80-00 Emblem (YAMAHA)Ur fur bl2,vrc1 |
992-46000-80-00 |
from US $9.15 |
||
|
19
|
19
99234-00020-00 Emblem, Yamaha (Black)Ur fur lbgm2 |
99234-00020-00 |
from US $8.64 |
||
| replacement | |||||
|
19
|
19
99244-00080-00 Emblem, YamahaUr fur lbgm2 |
99244-00080-00 |
from US $8.74 |
||
|
20
|
20
90183-08065-00 Nut, Spring |
90183-08065-00 |
from US $1.55 |
||
|
21
|
21
98906-05012-00 Screw, Bind |
98906-05012-00 |
US $1.42 |
||
| replacement | |||||
|
21
|
21
98907-05012-00 Screw, Bind |
98907-05012-00 |
from US $1.42 |
||
|
22
|
22
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
22
|
22
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
23
|
23
2YK-21747-00-00 Damper |
2YK-21747-00-00 |
from US $3.12 |
||
|
24
|
24
1AE-2837J-00-00
Damper 5
|
1AE-2837J-00-00 |
— | ||
|
25
|
25
3VD-21717-00-00
Damper
|
3VD-21717-00-00 |
— | ||
|
26
|
26
97706-50012-00 Screw, Truss Head Tapping |
97706-50012-00 |
from US $1.28 |
||
| replacement | |||||
|
26
|
26
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
27
|
27
90480-12550-00 Grommet |
90480-12550-00 |
from US $1.84 |
||
|
28
|
28
3VD-21645-00-4B
Stay, Rear
Ur black 2 |
3VD-21645-00-4B |
— | ||
| replacement | |||||
|
28
|
28
3VD-21645-00-PC
Stay, Rear
Ur black 2 |
3VD-21645-00-PC |
— | ||
|
28
|
28
3VD-21645-00-P1
Stay, Rear
Ur light bluish gray metallic |
3VD-21645-00-P1 |
— | ||
|
28
|
28
3VD-21645-00-PO
Stay, rear
Ur vivid red cocktail 1 |
3VD-21645-00-PO |
— | ||
|
29
|
29
97026-08035-00 Bolt |
97026-08035-00 |
from US $2.13 |
||
| replacement | |||||
|
29
|
29
97017-08035-00 Bolt |
97017-08035-00 |
from US $2.04 |
||
|
30
|
30
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
30
|
30
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
31
|
31
3VD-2117E-00-00 Bracket, Taillight |
3VD-2117E-00-00 |
US $251.86 |
||
|
32
|
32
J44-78248-00-00 Seal 4 |
J44-78248-00-00 |
from US $1.42 |
||
|
33
|
33
95816-08016-00 Bolt, Flange |
95816-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
33
|
33
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
33
|
33
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
34
|
34
3LD-21621-01-00
Flap
|
3LD-21621-01-00 |
— | ||
|
35
|
35
90149-04278-00 Screw |
90149-04278-00 |
from US $1.70 |
||
|
36
|
36
95606-04100-00 Nut, UNut, u |
95606-04100-00 |
from US $4.25 |
||
| replacement | |||||
|
36
|
36
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $4.25 |
||
|
37
|
37
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
38
|
38
3VD-28100-00-00
Tool Kit
|
3VD-28100-00-00 |
— | ||
|
39
|
39
3YX-21376-00-00 Band, Tool |
3YX-21376-00-00 |
from US $11.33 |
||
