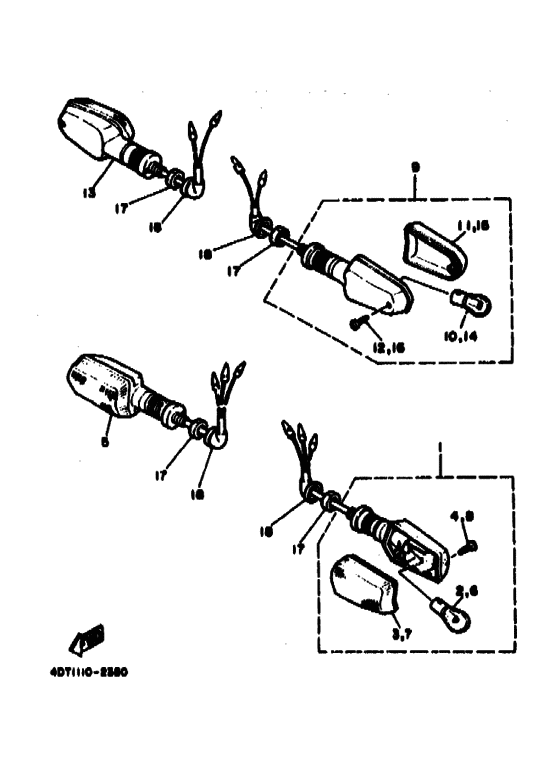

Flasher light Diagram Yamaha TDM850
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4DT3
- Sales region
- Europe (010)
- Engine Capacity
- 850
- Color Variant
- A
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1LJ-83310-20-00 Front Flasher Light Assembly 1 |
1LJ-83310-20-00 |
US $98.24 |
||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
3
|
3
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
4
|
4
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
5
|
5
1LJ-83320-20-00
Front Flasher Light Assembly 2
|
1LJ-83320-20-00 |
— | ||
|
6
|
6
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
6
|
6
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
6
|
6
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
7
|
7
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
8
|
8
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
9
|
9
1VW-83320-00-00 Frt Flshr Lite Assemblyassy 2 |
1VW-83320-00-00 |
US $107.84 |
||
|
10
|
10
256-83311-70-00 Bulb (12V-27W)12V-27W |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
10
|
10
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
11
|
11
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
12
|
12
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
13
|
13
1VW-83310-00-00 Frt Flshr Lite Assemblyassy 1 |
1VW-83310-00-00 |
US $108.20 |
||
|
14
|
14
256-83311-70-00 Bulb (12V-27W)12V-27W |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
14
|
14
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
15
|
15
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
16
|
16
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
17
|
17
95306-12600-00 Nut |
95306-12600-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
18
|
18
18G-83365-00-00 Cap |
18G-83365-00-00 |
from US $6.06 |
||
