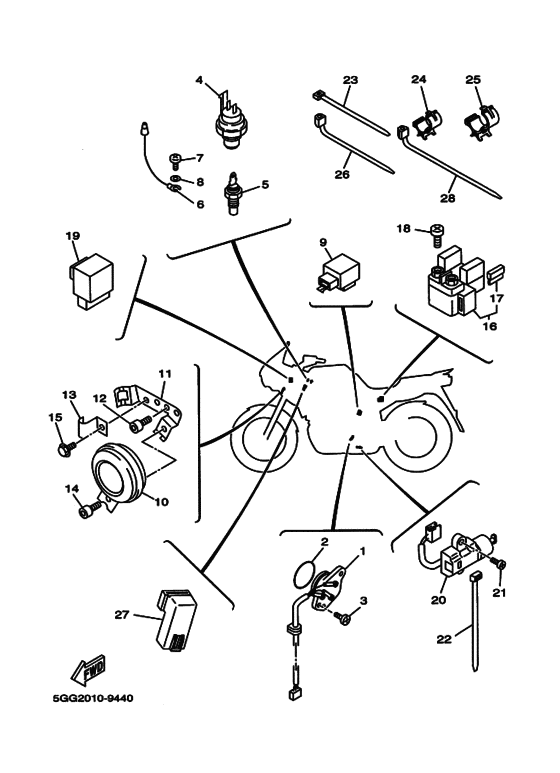

Electrical 2 Diagram Yamaha TDM850
- Year
- 1998
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 5GG1
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GG-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
5GG-82540-00-00 |
— | ||
|
2
|
2
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.66 |
||
|
3
|
3
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
4
|
4
3LN-82560-01-00 Thermo Switch Assyサーモスイツチアセンブリ; |
3LN-82560-01-00 |
from US $61.07 |
||
|
5
|
5
2YK-83591-00-00 Thermo Unitサーモユニツト; |
2YK-83591-00-00 |
from US $41.65 |
||
|
6
|
6
4NX-83354-00-00
Wire, Earth Lead 1
ワイヤ，アースリード １; |
4NX-83354-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
ワイヤ，アースリード １; |
999-99999-99-00 |
— | ||
|
7
|
7
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
8
|
8
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
9
|
9
3GM-83350-01-00
Flasher Relay Assy
フラツシヤリレーアセンブリ; |
3GM-83350-01-00 |
— | ||
| replacements | |||||
|
9
|
9
3GM-83350-02-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
3GM-83350-02-00 |
from US $51.67 |
||
|
9
|
9
3GM-83350-03-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
3GM-83350-03-00 |
US $93.53 |
||
|
10
|
10
4KM-83371-00-00 Hornホーン; |
4KM-83371-00-00 |
from US $55.87 |
||
| replacement | |||||
|
10
|
10
2KG-83371-00-00 Hornホーン; |
2KG-83371-00-00 |
from US $89.25 |
||
|
11
|
11
4TX-23377-00-00
Bracket, Horn
ブラケツト，ホーン; |
4TX-23377-00-00 |
— | ||
|
12
|
12
913-17060-14-00 Boltボルト; |
913-17060-14-00 |
from US $1.39 |
||
|
13
|
13
4TX-23378-00-00
Bracket, Horn
ブラケツト，ホーン; |
4TX-23378-00-00 |
— | ||
|
14
|
14
91317-06010-00 Boltボルト; |
91317-06010-00 |
from US $1.07 |
||
|
15
|
15
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
15
|
15
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
16
|
16
4DN-81940-00-00
Starter Relay Assy (Rc19-003)
スタータリレーアセンブリ; |
4DN-81940-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4DN-81940-12-00 Starter Relay Assy (Rc19-003)スタータリレーアセンブリ; |
4DN-81940-12-00 |
from US $59.26 |
||
|
17
|
17
1AE-82151-00-00 Fuse (30A-Bl)．フユーズ ; ３０Ａ−ＢＬ |
1AE-82151-00-00 |
from US $2.02 |
||
|
18
|
18
98507-06008-00 Screwスクリユ，パンヘツド; |
98507-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
18
|
18
98517-06008-00 Screwスクリユ，パンヘツド; |
98517-06008-00 |
from US $1.70 |
||
|
19
|
19
4EP-81950-00-00
Relay Assembly
リレーアセンブリ; |
4EP-81950-00-00 |
— | ||
|
20
|
20
3LD-82566-50-00 Switch, Side Stand |
3LD-82566-50-00 |
from US $66.18 |
||
| replacement | |||||
|
20
|
20
3LD-82566-51-00 Switch, Side Stand |
3LD-82566-51-00 |
from US $56.36 |
||
|
21
|
21
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
21
|
21
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
22
|
22
25G-83936-01-00 Band, Switch Cordバンド，スイツチコード; |
25G-83936-01-00 |
from US $1.56 |
||
|
23
|
23
90464-25217-00 Clampクランプ; |
90464-25217-00 |
from US $1.81 |
||
|
24
|
24
90464-10190-00 Clamp |
90464-10190-00 |
from US $1.81 |
||
|
25
|
25
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
|
26
|
26
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
26
|
26
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
|
27
|
27
29U-81950-93-00 Relay Assy (Aca12115-1)リレーアセンブリ; マツシタ （昼間点灯用） |
29U-81950-93-00 |
from US $35.70 |
||
