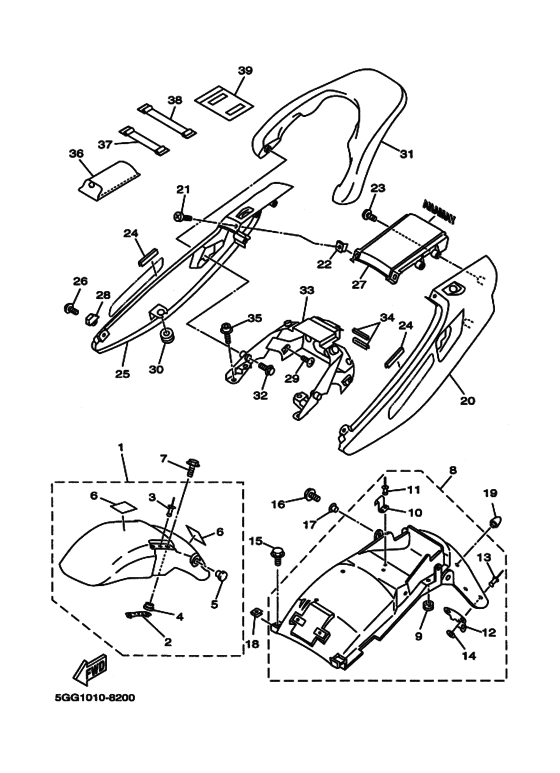

Fender Diagram Yamaha TDM850
- Year
- 1998
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 5GG1
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VD-Y2151-10-P5
Front Fender Assy
フロントフエンダコンプリート; ＵＲ レデイツシユイエローカクテル １ |
3VD-Y2151-10-P5 |
— | ||
|
2
|
2
3GM-21512-00-00 Bracket, Fender．ブラケツト，フエンダ; |
3GM-21512-00-00 |
from US $8.08 |
||
|
3
|
3
90267-32071-00 Rivet, Blind．リベツト，ブラインド; |
90267-32071-00 |
from US $2.05 |
||
|
4
|
4
90387-065T2-00 Collar．カラー; |
90387-065T2-00 |
from US $3.68 |
||
|
5
|
5
90338-12192-00 Plug(2Gu)．プラグ; |
90338-12192-00 |
from US $2.02 |
||
|
6
|
6
3FY-21575-01-00 Seal 1．シール １; |
3FY-21575-01-00 |
from US $8.08 |
||
|
7
|
7
90105-06477-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-06477-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
950-27060-20-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
950-27060-20-00 |
from US $1.52 |
||
|
8
|
8
3VD-Y2161-01-00 Rear Fender Compリヤフエンダコンプリート; |
3VD-Y2161-01-00 |
US $205.42 |
||
|
9
|
9
90480-10258-00 Grommet．グロメツト; |
90480-10258-00 |
from US $1.98 |
||
|
10
|
10
3VD-21366-00-00 Hook, Tool Band．フツク，ツールバンド; |
3VD-21366-00-00 |
from US $10.71 |
||
|
11
|
11
90267-40073-00 Rivet, Blind．リベツト，ブラインド; |
90267-40073-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
90267-40029-00 Rivet, Blind (4X18 Black)．リベツト，ブラインド; |
90267-40029-00 |
from US $3.54 |
||
|
12
|
12
3HE-85132-01-00 Bracket, Reflector 1．ブラケツト，リフレクタ １; |
3HE-85132-01-00 |
US $15.73 |
||
|
13
|
13
90267-40035-00 Rivet, Blind．リベツト，ブラインド; |
90267-40035-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
90267-40029-00 Rivet, Blind (4X18 Black)．リベツト，ブラインド; |
90267-40029-00 |
from US $3.54 |
||
|
14
|
14
90201-04018-00 Washer (4Fm)．ワツシヤ，プレート; |
90201-04018-00 |
from US $1.80 |
||
| replacement | |||||
|
14
|
14
90201-044H9-00 Washer, Plate．ワツシヤ，プレート; |
90201-044H9-00 |
from US $1.84 |
||
|
15
|
15
950-27060-10-00 Bolt, Flange(4My)ボルト，フランジ; |
950-27060-10-00 |
from US $1.18 |
||
|
16
|
16
950-27060-20-00 Bolt, Flangeボルト，フランジ; |
950-27060-20-00 |
from US $1.52 |
||
|
17
|
17
903-87064-J1-00
Collar
カラー; |
903-87064-J1-00 |
— | ||
| replacement | |||||
|
17
|
17
903-87061-07-00 Collarカラー; |
903-87061-07-00 |
from US $4.43 |
||
|
18
|
18
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
19
|
19
2MG-21639-00-00 Damper 2 |
2MG-21639-00-00 |
from US $6.52 |
||
|
20
|
20
4TX-2471K-00-P1
Cover, Tail 1
カバー，テール １; ＵＲ レデイツシユイエローカクテル １グラフィック無 |
4TX-2471K-00-P1 |
— | ||
|
21
|
21
98907-05010-00 Screw, Bindスクリユ，バインド; |
98907-05010-00 |
from US $1.21 |
||
|
22
|
22
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
22
|
22
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
23
|
23
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
24
|
24
4KB-21268-00-00 Sealシール; |
4KB-21268-00-00 |
from US $6.32 |
||
|
25
|
25
4TX-2472K-00-P1
Cover, Tail 2
カバー，テール ２; ＵＲ レデイツシユイエローカクテル １グラフィック無 |
4TX-2472K-00-P1 |
— | ||
|
26
|
26
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
27
|
27
4TX-21651-00-P1
Cover, Rear Fender
カバー，リヤフエンダ; ＵＲ レデイツシユイエローカクテル １グラフィック無 |
4TX-21651-00-P1 |
— | ||
|
28
|
28
4TX-2161A-00-00
Bracket 3
|
4TX-2161A-00-00 |
— | ||
|
29
|
29
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
30
|
30
90480-12550-00 Grommet |
90480-12550-00 |
from US $1.84 |
||
|
31
|
31
3VD-21645-00-P5
Stay, Rear
ステー，リヤ; ＵＲ レデイツシユイエローカクテル １ |
3VD-21645-00-P5 |
— | ||
|
32
|
32
95827-08040-00 Bolt, Flangeボルト，フランジ; |
95827-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
32
|
32
95817-08040-00 Bolt, Flangeボルト，フランジ; |
95817-08040-00 |
from US $1.07 |
||
|
33
|
33
4TX-2117E-00-00
Bracket, Taillight
ブラケツト，テールライト; |
4TX-2117E-00-00 |
— | ||
|
34
|
34
46X-21269-00-00 Sealシール; |
46X-21269-00-00 |
from US $5.38 |
||
|
35
|
35
90109-085E2-00 Bolt (2Kf) |
90109-085E2-00 |
from US $1.70 |
||
|
36
|
36
4TX-28100-00-00
Tool Kit
ツールキツト; |
4TX-28100-00-00 |
— | ||
|
37
|
37
116-82131-00-00 Band, Battery |
116-82131-00-00 |
from US $10.48 |
||
|
38
|
38
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $14.29 |
||
|
39
|
39
4KG-28186-10-00 Pouchポーチ; |
4KG-28186-10-00 |
from US $7.65 |
||
| replacement | |||||
|
39
|
39
4KG-28186-11-00 Pouchポーチ; |
4KG-28186-11-00 |
from US $10.06 |
||
