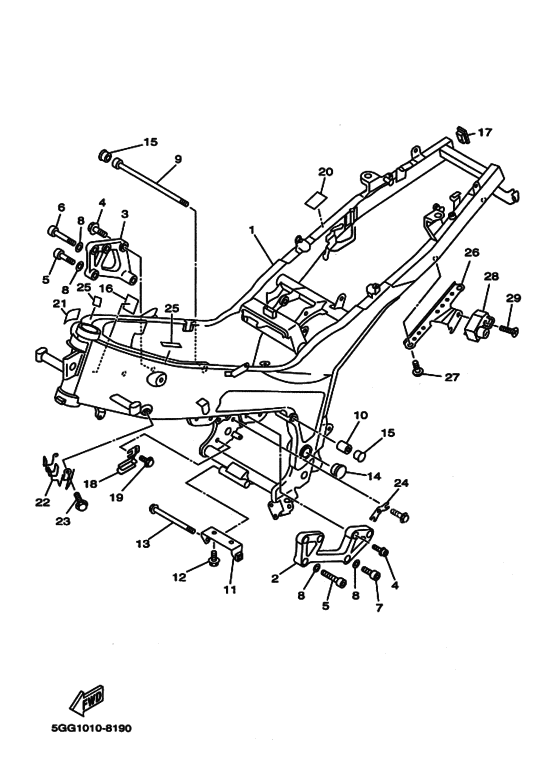

Frame Diagram Yamaha TDM850
- Year
- 1998
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 5GG1
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TX-21110-02-35
Frame Comp
フレームコンプリート; シルバー |
4TX-21110-02-35 |
— | ||
|
2
|
2
3VD-21411-10-35 Bracket, Engine 1シルバー |
3VD-21411-10-35 |
US $296.77 |
||
|
3
|
3
4TX-21419-00-35
Bracket, Engine 2
シルバー |
4TX-21419-00-35 |
— | ||
|
4
|
4
90109-083G1-00 Boltボルト; |
90109-083G1-00 |
from US $2.69 |
||
|
5
|
5
91314-10045-00 Bolt, Hexagon Socket Headボルト; |
91314-10045-00 |
from US $3.24 |
||
|
6
|
6
91314-10060-00 Bolt, Hexagon Socket Headボルト; |
91314-10060-00 |
from US $3.35 |
||
|
7
|
7
91314-10025-00 Bolt, Hexagon Socket Headボルト; |
91314-10025-00 |
from US $4.11 |
||
|
8
|
8
90201-10430-00 Washer, Plateワツシヤ，プレート; |
90201-10430-00 |
from US $2.27 |
||
| replacement | |||||
|
8
|
8
90201-100F7-00 Washer (7A9)ワツシヤ，プレート; |
90201-100F7-00 |
from US $2.27 |
||
|
9
|
9
90110-10229-00
Bolt, Hexagon Socket Head
ボルト，ヘキサゴンソケツトヘツド; |
90110-10229-00 |
— | ||
|
10
|
10
90179-10377-00 Nut |
90179-10377-00 |
from US $8.28 |
||
| replacement | |||||
|
10
|
10
90179-10013-00 Nut |
90179-10013-00 |
from US $9.07 |
||
|
11
|
11
3VD-21489-00-00
Bracket, Eng Lowerengine Lower
|
3VD-21489-00-00 |
— | ||
|
12
|
12
90105-08752-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-08752-00 |
from US $0.85 |
||
| replacement | |||||
|
12
|
12
958-17080-20-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
958-17080-20-00 |
from US $0.83 |
||
|
13
|
13
90105-10328-00 Bolt, Washer Based(37F)ボルト，ワツシヤベースドヘツド; |
90105-10328-00 |
from US $9.92 |
||
| replacement | |||||
|
13
|
13
90105-10712-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10712-00 |
from US $9.98 |
||
|
14
|
14
3SX-2135F-00-00 Coverカバー; |
3SX-2135F-00-00 |
from US $11.05 |
||
|
15
|
15
3LD-2143A-00-00
Cap
|
3LD-2143A-00-00 |
— | ||
|
16
|
16
11H-21747-00-00 Damper |
11H-21747-00-00 |
US $5.74 |
||
|
17
|
17
3VD-2143A-00-00 Cap |
3VD-2143A-00-00 |
US $8.10 |
||
|
18
|
18
3VD-21164-00-00 Holder, Wireホルダ，ケーブル; |
3VD-21164-00-00 |
US $21.06 |
||
|
19
|
19
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
19
|
19
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
20
|
20
3YL-12232-00-00 Damper |
3YL-12232-00-00 |
from US $1.98 |
||
| replacement | |||||
|
20
|
20
5H0-8235Y-M0-00 Damper |
5H0-8235Y-M0-00 |
from US $1.98 |
||
|
21
|
21
1JK-21735-00-00 Seal 2シール ２; |
1JK-21735-00-00 |
from US $6.52 |
||
|
22
|
22
4TX-21161-00-00
Holder, Cable
ホルダ，ケーブル; |
4TX-21161-00-00 |
— | ||
|
23
|
23
90105-06446-00 Bolt, Washer Basedボルト，ワツシヤベースドヘツド; |
90105-06446-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
958-17060-12-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
958-17060-12-00 |
from US $1.07 |
||
|
24
|
24
4TX-2148U-00-00
Bracket 1
|
4TX-2148U-00-00 |
— | ||
|
25
|
25
4KB-21268-00-00 Sealシール; |
4KB-21268-00-00 |
from US $6.32 |
||
|
26
|
26
5GG-21158-00-00
Bracket
|
5GG-21158-00-00 |
— | ||
|
27
|
27
5EA-22277-00-00 Bolt |
5EA-22277-00-00 |
US $2.69 |
||
|
28
|
28
4R8-21308-00-00
Helmet Hanger Assy
ヘルメツトハンガーアセンブリ; |
4R8-21308-00-00 |
— | ||
| replacement | |||||
|
28
|
28
26H-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
26H-21308-01-00 |
from US $44.85 |
||
|
29
|
29
90151-06038-00 Screw, Countersunk |
90151-06038-00 |
from US $1.98 |
||
| replacement | |||||
|
29
|
29
90149-06150-00 Screw, Countersunk |
90149-06150-00 |
from US $1.98 |
||
