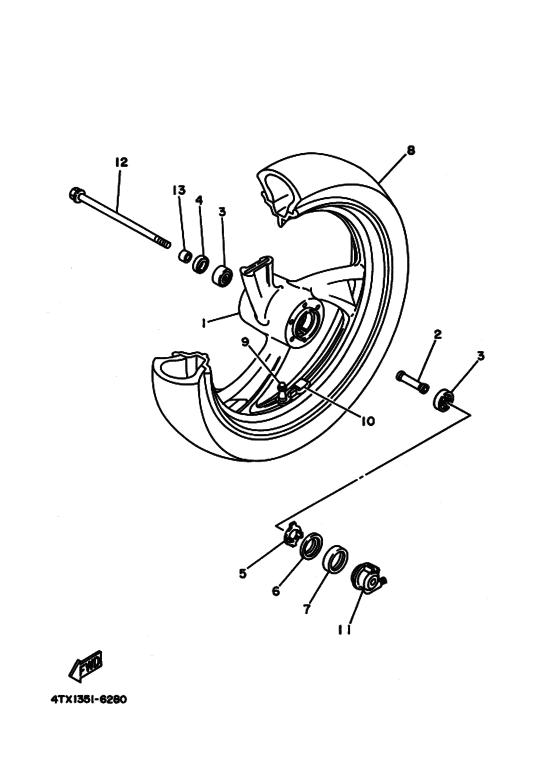

Front wheel Diagram Yamaha TDM850
- Year
- 1998
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 5GG1
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VD-25168-00-7B
Cast Wheel, Front
キヤストホイール，フロント; ブルーイツシユブラツク ２ |
3VD-25168-00-7B |
— | ||
|
2
|
2
90560-17233-00
Spacer
スペーサ; |
90560-17233-00 |
— | ||
|
3
|
3
93306-30319-00 Bearing |
93306-30319-00 |
from US $28.19 |
||
| replacement | |||||
|
3
|
3
93306-30317-00 Bearing |
93306-30317-00 |
from US $27.74 |
||
|
4
|
4
93102-28022-00 Oil Sealオイルシール; |
93102-28022-00 |
from US $7.07 |
||
|
5
|
5
341-25149-00-00 Clutch, Meterクラツチ，メータ; |
341-25149-00-00 |
from US $4.43 |
||
|
6
|
6
341-25846-00-00 Retainer, Clutchリテーナ，クラツチ; |
341-25846-00-00 |
from US $3.33 |
||
|
7
|
7
93105-45017-00 Oil Sealオイルシール; |
93105-45017-00 |
from US $10.83 |
||
|
9
|
9
939-00000-30-00 Valve, Rim (Tr412)バルブ，リム; |
939-00000-30-00 |
from US $7.65 |
||
|
10
|
10
29L-25398-00-00
Balancer, Wheel (10G)
バランサ，ホイール ; １０Ｇ; ＵＲ |
29L-25398-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイール ; １０Ｇ; ＵＲ |
5MT-25398-00-00 |
from US $8.46 |
||
|
10
|
10
29L-25398-10-00
Balancer, Wheel (20G)
バランサ，ホイール ; ２０Ｇ; ＵＲ |
29L-25398-10-00 |
— | ||
| replacement | |||||
|
10
|
10
5MT-25398-10-00 Balancer, Wheel (20G)バランサ，ホイール ; ２０Ｇ; ＵＲ |
5MT-25398-10-00 |
from US $8.46 |
||
|
10
|
10
29L-25398-20-00 Balancer, Wheel (30G)バランサ，ホイール ; ３０Ｇ; ＵＲ |
29L-25398-20-00 |
from US $7.65 |
||
| replacement | |||||
|
10
|
10
5MT-25398-20-00 Balancer, Wheel (30G)バランサ，ホイール ; ３０Ｇ; ＵＲ |
5MT-25398-20-00 |
from US $8.46 |
||
|
11
|
11
4TX-25190-10-00 Gear Unit Assy |
4TX-25190-10-00 |
from US $74.79 |
||
| replacement | |||||
|
11
|
11
1FK-25190-02-00 Gear Unit Assy |
1FK-25190-02-00 |
from US $88.01 |
||
|
12
|
12
3GM-25181-03-00 Axle, Wheelアクスル，ホイール; |
3GM-25181-03-00 |
from US $83.59 |
||
|
13
|
13
90387-177R1-00 Collarカラー; |
90387-177R1-00 |
from US $9.44 |
||
