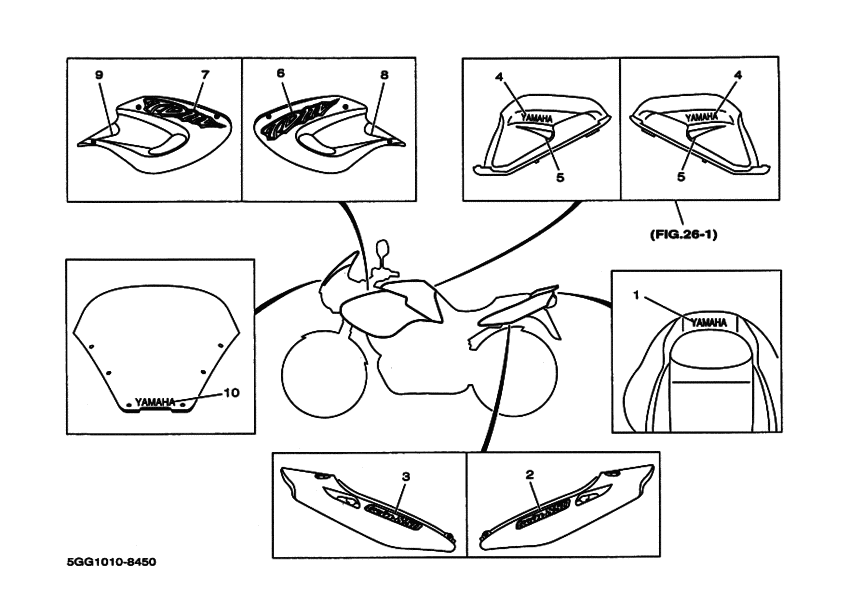

Graphic & Emblem (5GG1) Diagram Yamaha TDM850
- Year
- 1998
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 5GG1
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- TDM850
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
99237-00080-00 Emblem, Yamaha |
99237-00080-00 |
from US $7.90 |
||
| replacement | |||||
|
1
|
1
992-47000-80-00 Emblem, Yamaha |
992-47000-80-00 |
from US $7.76 |
||
|
2
|
2
4TX-21781-10-00
Emblem 1
|
4TX-21781-10-00 |
— | ||
|
3
|
3
4TX-21781-10-00
Emblem 1
|
4TX-21781-10-00 |
— | ||
|
4
|
4
99224-00140-00 Emblem, Yamaha(4Ga)＊エンブレム，ＹＡＭＡＨＡ; |
99224-00140-00 |
from US $11.76 |
||
| replacement | |||||
|
4
|
4
99244-00140-00 Emblem, Yamaha＊エンブレム，ＹＡＭＡＨＡ; |
99244-00140-00 |
from US $11.76 |
||
|
5
|
5
4TX-24240-10-00 Graphic Set＊グラフイツクセツト; |
4TX-24240-10-00 |
US $61.96 |
||
|
6
|
6
4TX-28328-10-00
Emblem
|
4TX-28328-10-00 |
— | ||
|
7
|
7
4TX-28338-10-00 Emblem |
4TX-28338-10-00 |
US $28.85 |
||
|
8
|
8
4TX-28391-11-00
Graphic 1
グラフイツク １; |
4TX-28391-11-00 |
— | ||
|
9
|
9
4TX-28392-11-00
Graphic 2
グラフイツク ２; |
4TX-28392-11-00 |
— | ||
|
10
|
10
992-47000-80-00 Emblem, Yamahaエンブレム，ヤマハ; |
992-47000-80-00 |
from US $7.76 |
||
