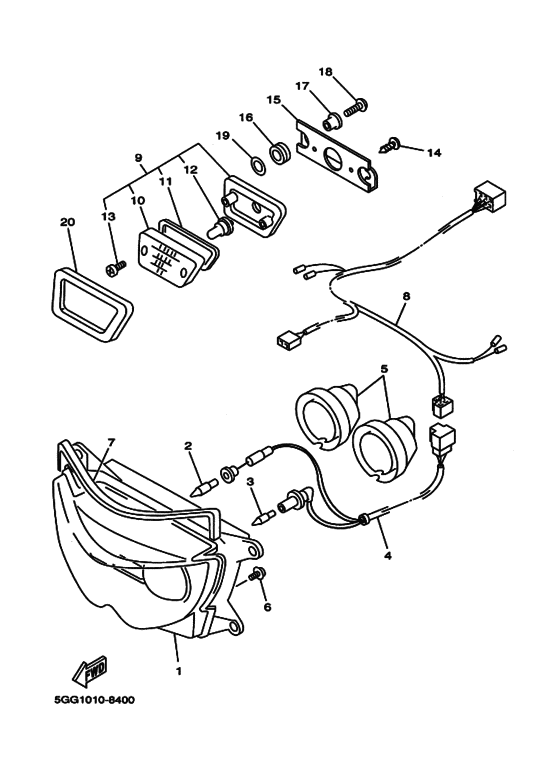

Headlight Diagram Yamaha TDM850
- Year
- 1998
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 5GG1
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TX-84320-10-00
Lens Assy
|
4TX-84320-10-00 |
— | ||
|
2
|
2
3GM-84314-40-00 Bulb (12V-55W-H3)バルブ ; １２Ｖ−５５Ｗ−Ｈ３; ハロゲン |
3GM-84314-40-00 |
US $35.85 |
||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
バルブ ; １２Ｖ−５５Ｗ−Ｈ３; ハロゲン |
999-99999-99-00 |
— | ||
|
3
|
3
2LA-84314-G0-00 Bulb (12V-55W H1)バルブ ; １２Ｖ−５５Ｗ; ハロゲン |
2LA-84314-G0-00 |
from US $30.04 |
||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
バルブ ; １２Ｖ−５５Ｗ; ハロゲン |
999-99999-99-00 |
— | ||
|
4
|
4
3GM-84340-40-00
Socket Cord Assy 1
ソケツトコードアセンブリ １; |
3GM-84340-40-00 |
— | ||
|
5
|
5
3GM-84397-40-00
Cover, Socket
カバー，ソケツト; |
3GM-84397-40-00 |
— | ||
|
6
|
6
3TJ-84351-00-00
Clamp, Cord
スクリユ; |
3TJ-84351-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3TJ-84526-00-00
Screw
スクリユ; |
3TJ-84526-00-00 |
— | ||
|
7
|
7
4TX-84163-00-00 Damper |
4TX-84163-00-00 |
US $1.49 |
||
|
8
|
8
5GG-84359-00-00
Cord, Headlight
コード，ヘツドライト; |
5GG-84359-00-00 |
— | ||
|
9
|
9
3GM-84301-00-00 Pilot Light Assy 1 |
3GM-84301-00-00 |
from US $56.66 |
||
| replacement | |||||
|
9
|
9
3GM-84301-01-00 Pilot Light Assy 1 |
3GM-84301-01-00 |
from US $56.23 |
||
|
10
|
10
3GM-84321-00-00 Lens Assy．レンズアセンブリ; |
3GM-84321-00-00 |
from US $6.23 |
||
|
11
|
11
3GM-84322-00-00
Gasket, Lens
．ガスケツト，レンズ; |
3GM-84322-00-00 |
— | ||
| replacement | |||||
|
11
|
11
1TX-83313-00-00
Gasket, Flshr Lens
．ガスケツト，レンズ; |
1TX-83313-00-00 |
— | ||
|
12
|
12
47G-85353-00-00 Bulb (12V-5W)．バルブ ; １２Ｖ−５Ｗ |
47G-85353-00-00 |
US $2.83 |
||
| replacements | |||||
|
12
|
12
4SV-84347-00-00 Bulb (12V-5W)．バルブ ; １２Ｖ−５Ｗ |
4SV-84347-00-00 |
from US $3.05 |
||
|
12
|
12
1WD-H4744-00-00 Bulb (12V-5W)．バルブ ; １２Ｖ−５Ｗ |
1WD-H4744-00-00 |
from US $6.23 |
||
|
12
|
12
1RC-84347-00-00 Bulb (12V-5W)．バルブ ; １２Ｖ−５Ｗ |
1RC-84347-00-00 |
from US $5.41 |
||
|
12
|
12
1JD-H4347-00-00 Bulb (W3W-12V)．バルブ ; １２Ｖ−５Ｗ |
1JD-H4347-00-00 |
US $4.68 |
||
|
12
|
12
3WW-H4347-00-00
Bulb
．バルブ ; １２Ｖ−５Ｗ |
3WW-H4347-00-00 |
— | ||
|
13
|
13
3GM-84192-10-00 Screw, Special．スクリユ，スペシヤル; |
3GM-84192-10-00 |
US $2.69 |
||
|
14
|
14
90167-05025-00 Screw, Truss Head Tapping |
90167-05025-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
15
|
15
4TX-8431R-00-00 Stay, Settingステイ，セツテイング; |
4TX-8431R-00-00 |
US $11.62 |
||
|
16
|
16
90480-10517-00 Grommet |
90480-10517-00 |
from US $1.98 |
||
|
17
|
17
90387-052U5-00 Collarカラー; |
90387-052U5-00 |
from US $1.98 |
||
| replacement | |||||
|
17
|
17
903-87050-26-00 Collarカラー; |
903-87050-26-00 |
from US $1.40 |
||
|
18
|
18
90167-05037-00 Screw, Tapping |
90167-05037-00 |
from US $1.21 |
||
|
19
|
19
90201-054K4-00 Washer, Plate(81H)ワツシヤ，プレート; |
90201-054K4-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
90201-05556-00 Washer, Plateワツシヤ，プレート; |
90201-05556-00 |
from US $1.42 |
||
|
20
|
20
3GM-84367-50-00 Damper, Headlight 2 |
3GM-84367-50-00 |
from US $4.07 |
||
