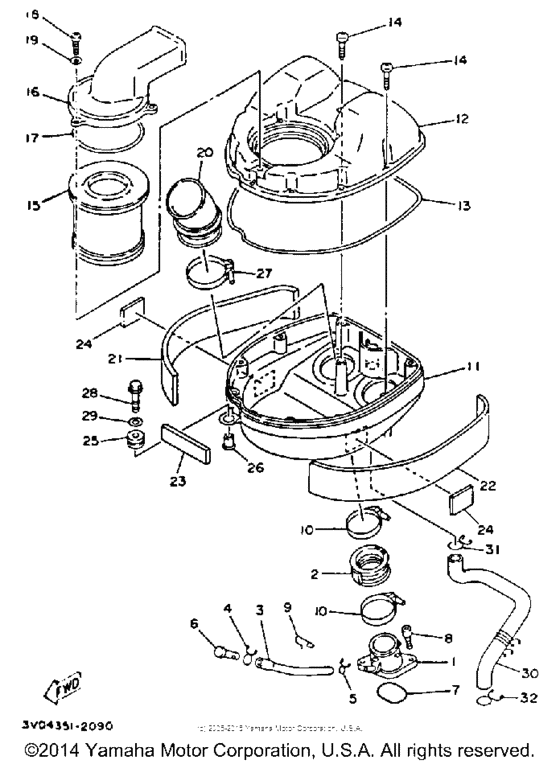

Air filter Diagram Yamaha TDM850
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LD-13586-01-00
Joint, Carburetor 1
|
3LD-13586-01-00 |
— | ||
|
2
|
2
3LD-13597-00-00
Joint,carb 3
|
3LD-13597-00-00 |
— | ||
| replacement | |||||
|
2
|
2
3LD-13597-01-00 Joint, Carburetor 3 |
3LD-13597-01-00 |
from US $36.58 |
||
|
3
|
3
1VJ-13929-00-00
Pipe, Impulse
|
1VJ-13929-00-00 |
— | ||
|
4
|
4
90467-08017-00 Clip |
90467-08017-00 |
from US $1.56 |
||
|
5
|
5
904-67080-21-00 Clip |
904-67080-21-00 |
from US $1.81 |
||
|
6
|
6
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
7
|
7
932-10445-45-00 O-Ring |
932-10445-45-00 |
from US $7.07 |
||
|
8
|
8
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
8
|
8
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
9
|
9
90465-20035-00
Clamp
|
90465-20035-00 |
— | ||
|
10
|
10
904-50570-34-00
Hose Clamp
|
904-50570-34-00 |
— | ||
| replacement | |||||
|
10
|
10
904-50570-16-00 Hose Clamp |
904-50570-16-00 |
from US $7.08 |
||
|
11
|
11
3VD-14411-00-00
Case, Air Cleaner 1
|
3VD-14411-00-00 |
— | ||
|
12
|
12
3VD-14421-00-00 Case, Air Cleaner 2 |
3VD-14421-00-00 |
US $118.37 |
||
|
13
|
13
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $11.12 |
||
|
14
|
14
97780-50125-00 Screw, Tapping |
97780-50125-00 |
from US $2.55 |
||
|
15
|
15
1AE-14451-00-00 Element, Air Cleaner |
1AE-14451-00-00 |
from US $37.71 |
||
|
16
|
16
3VD-14422-00-00
Cap, Cleaner Case 2
|
3VD-14422-00-00 |
— | ||
|
17
|
17
5T0-14457-00-00
Seal
|
5T0-14457-00-00 |
— | ||
| replacement | |||||
|
17
|
17
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $11.12 |
||
|
18
|
18
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
19
|
19
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
19
|
19
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
19
|
19
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
20
|
20
3GM-14453-00-00 Joint, Air Cleaner 1 |
3GM-14453-00-00 |
from US $34.71 |
||
|
21
|
21
3VD-14425-00-00 Damper 1 |
3VD-14425-00-00 |
US $17.44 |
||
|
22
|
22
3VD-14426-00-00 Damper 1 |
3VD-14426-00-00 |
US $17.69 |
||
| replacement | |||||
|
22
|
22
3VD-14425-00-00 Damper 1 |
3VD-14425-00-00 |
US $17.44 |
||
|
23
|
23
3VD-1442G-00-00 Damper 3 |
3VD-1442G-00-00 |
US $4.34 |
||
|
24
|
24
3BB-22261-00-00 Damper, Sub Tank |
3BB-22261-00-00 |
US $2.66 |
||
|
25
|
25
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
26
|
26
90387-060M9-00 Collar |
90387-060M9-00 |
from US $4.39 |
||
|
27
|
27
90450-67033-00 Hose Clamp Assy |
90450-67033-00 |
from US $8.91 |
||
| replacement | |||||
|
27
|
27
90450-67002-00 Hose Clamp Assy |
90450-67002-00 |
from US $12.61 |
||
|
28
|
28
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
28
|
28
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
28
|
28
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
29
|
29
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
30
|
30
3VD-11166-00-00
Pipe, Breather 1
|
3VD-11166-00-00 |
— | ||
|
31
|
31
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
32
|
32
904-67241-13-00
Clip, Scissor
|
904-67241-13-00 |
— | ||
| replacement | |||||
|
32
|
32
90467-24096-00 Clip(8V0) |
90467-24096-00 |
from US $1.84 |
||
