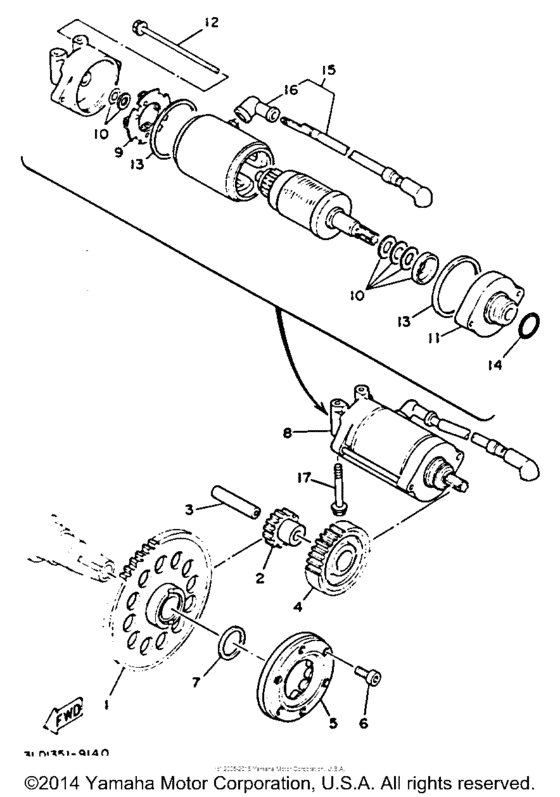

Starter clutch Diagram Yamaha TDM850
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LD-15515-00-00 Gear 3 |
3LD-15515-00-00 |
US $150.32 |
||
| replacement | |||||
|
1
|
1
4NX-15515-00-00
Gear 3
|
4NX-15515-00-00 |
— | ||
|
2
|
2
3LD-15517-00-00 Gear, Idler 2 |
3LD-15517-00-00 |
from US $51.95 |
||
|
3
|
3
26H-15521-00-00 Shaft 1 |
26H-15521-00-00 |
from US $9.21 |
||
|
4
|
4
3LD-15512-00-00 Gear, Idler 1 |
3LD-15512-00-00 |
US $76.73 |
||
|
5
|
5
3LD-15590-01-00 Starter One-Way Assy |
3LD-15590-01-00 |
from US $175.46 |
||
| replacement | |||||
|
5
|
5
3LD-15590-02-00 Starter One-Way Assy |
3LD-15590-02-00 |
from US $200.47 |
||
|
6
|
6
913-16060-18-00
Bolt
|
913-16060-18-00 |
— | ||
| replacement | |||||
|
6
|
6
91317-06018-00 Bolt,socket |
91317-06018-00 |
from US $1.56 |
||
|
7
|
7
90201-301P3-00 Washer, Plate |
90201-301P3-00 |
from US $2.65 |
||
| replacement | |||||
|
7
|
7
90201-30008-00 Washer, Plate |
90201-30008-00 |
from US $4.11 |
||
|
8
|
8
3LD-81800-00-00 Starting Motor Assembly |
3LD-81800-00-00 |
from US $300.11 |
||
| replacement | |||||
|
8
|
8
3LD-81890-00-00 Motor Assy |
3LD-81890-00-00 |
from US $535.61 |
||
|
9
|
9
3AJ-81801-00-00 Brush Set |
3AJ-81801-00-00 |
from US $65.70 |
||
|
10
|
10
3AJ-81809-00-00 Washer Kit |
3AJ-81809-00-00 |
from US $7.36 |
||
|
11
|
11
3AJ-81830-00-00 Front Bracket Assembly |
3AJ-81830-00-00 |
from US $271.06 |
||
|
12
|
12
3AJ-81826-00-00 Bolt |
3AJ-81826-00-00 |
from US $12.61 |
||
|
13
|
13
11H-81844-00-00
Gasket
|
11H-81844-00-00 |
— | ||
| replacement | |||||
|
13
|
13
35C-81844-00-00 Gasket |
35C-81844-00-00 |
from US $20.97 |
||
|
14
|
14
26H-81847-00-00
O-Ring
|
26H-81847-00-00 |
— | ||
| replacement | |||||
|
14
|
14
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
15
|
15
3LD-81815-00-00 Wire, Starter |
3LD-81815-00-00 |
US $65 |
||
| replacement | |||||
|
15
|
15
3LD-81815-01-00 Cord, Starter Motor |
3LD-81815-01-00 |
US $65 |
||
|
16
|
16
5H0-81871-00-00
Cover Terminal
|
5H0-81871-00-00 |
— | ||
|
17
|
17
95811-06050-00 Bolt, Flange(53Y) |
95811-06050-00 |
from US $1.21 |
||
| replacement | |||||
|
17
|
17
95817-06050-00 Bolt, Flange |
95817-06050-00 |
from US $1.21 |
||
