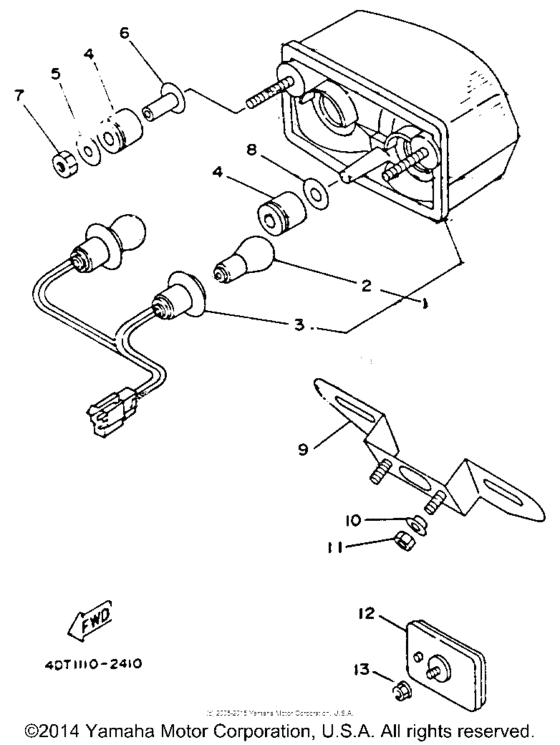

Tailight Diagram Yamaha TDM850
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LK-84710-20-00
Taillight Unit Assembly
|
3LK-84710-20-00 |
— | ||
|
2
|
2
31L-84714-00-00
Bulb (12V-21/5W)
12V-21/5W |
31L-84714-00-00 |
— | ||
| replacements | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W)12V-21/5W |
1A2-84714-50-00 |
from US $5.28 |
||
|
2
|
2
1A2-84714-41-00
Bulb
12V-21/5W |
1A2-84714-41-00 |
— | ||
|
3
|
3
3LK-8473A-00-00
Cord Assy
|
3LK-8473A-00-00 |
— | ||
|
4
|
4
90480-18407-00
Grommet
|
90480-18407-00 |
— | ||
|
5
|
5
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
6
|
6
903-87062-W3-00 Collar |
903-87062-W3-00 |
US $3.83 |
||
|
7
|
7
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
8
|
8
92906-10200-00 Washer, Plain |
92906-10200-00 |
from US $1.07 |
||
| replacements | |||||
|
8
|
8
92907-10200-00 Washer, Plain |
92907-10200-00 |
from US $0.90 |
||
|
8
|
8
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
9
|
9
4DT-84751-00-90
Bracket, License
|
4DT-84751-00-90 |
— | ||
| replacement | |||||
|
9
|
9
4DU-84751-00-90
Bracket, License
|
4DU-84751-00-90 |
— | ||
|
10
|
10
90387-07717-00 Collar |
90387-07717-00 |
from US $2.36 |
||
|
11
|
11
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
12
|
12
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
12
|
12
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
13
|
13
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
