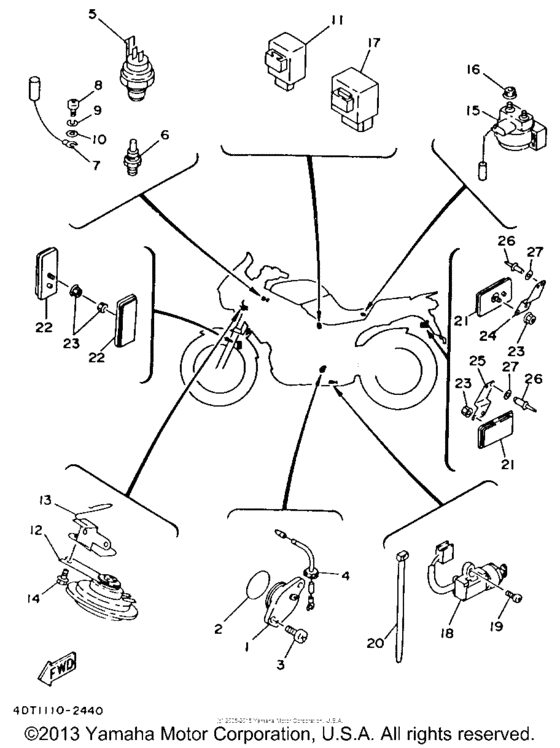

Electrical (2) Diagram Yamaha TDM850
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1AE-82540-00-00 Neutral Switch Assy |
1AE-82540-00-00 |
from US $23.16 |
||
|
2
|
2
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.66 |
||
|
3
|
3
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.77 |
||
| replacement | |||||
|
3
|
3
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
4
|
4
3LD-82541-00-00 Wire, Lead |
3LD-82541-00-00 |
from US $9.63 |
||
| replacement | |||||
|
4
|
4
3FA-82541-00-00 Wire, Lead |
3FA-82541-00-00 |
from US $11.76 |
||
|
5
|
5
2EL-82560-00-00 Thermo Switch Assy |
2EL-82560-00-00 |
from US $59.22 |
||
| replacement | |||||
|
5
|
5
3LN-82560-01-00 Thermo Switch Assy |
3LN-82560-01-00 |
from US $61.07 |
||
|
6
|
6
11H-83591-00-00 Thermo Unit |
11H-83591-00-00 |
from US $90.36 |
||
|
7
|
7
26H-83354-00-00
Wire, Earth Lead 1
|
26H-83354-00-00 |
— | ||
| replacements | |||||
|
7
|
7
4NK-83354-00-00
Wire, Earth Lead 1
|
4NK-83354-00-00 |
— | ||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
11
|
11
3YA-83350-10-00
Flasher Relay Assembly
UR N.D. |
3YA-83350-10-00 |
— | ||
| replacement | |||||
|
11
|
11
3YA-83350-00-00 Flasher Relay AssemblyUR N.D. |
3YA-83350-00-00 |
from US $75.16 |
||
|
11
|
11
3YA-83350-00-00 Flasher Relay AssemblyUR OMRON |
3YA-83350-00-00 |
from US $75.16 |
||
|
12
|
12
2TV-83371-00-00 Horn |
2TV-83371-00-00 |
from US $59.20 |
||
| replacement | |||||
|
12
|
12
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
13
|
13
3VD-2317E-00-00
Stay 1
|
3VD-2317E-00-00 |
— | ||
|
14
|
14
91026-06010-00 Bolt |
91026-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
15
|
15
36Y-81940-00-00 Starter Relay Assy |
36Y-81940-00-00 |
from US $87.73 |
||
|
16
|
16
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
17
|
17
2UJ-81950-00-00 Relay Assy (2Uj-00)2UJ-00 |
2UJ-81950-00-00 |
from US $73.64 |
||
| replacements | |||||
|
17
|
17
2UJ-81950-01-00 2UJ-00 |
2UJ-81950-01-00 |
from US $73.64 |
||
|
17
|
17
2UJ-81950-02-00 Relay Assy2UJ-00 |
2UJ-81950-02-00 |
US $73.04 |
||
|
18
|
18
3LD-82566-50-00 Switch, Side Stand |
3LD-82566-50-00 |
from US $66.18 |
||
| replacement | |||||
|
18
|
18
3LD-82566-51-00 Switch, Side Stand |
3LD-82566-51-00 |
from US $56.36 |
||
|
19
|
19
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
19
|
19
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
20
|
20
90465-13169-00 Band |
90465-13169-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
21
|
21
3G1-85130-01-00
Rear Reflector Assy
|
3G1-85130-01-00 |
— | ||
| replacement | |||||
|
21
|
21
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
22
|
22
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $12.46 |
||
|
23
|
23
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
23
|
23
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
24
|
24
2LJ-21688-00-00
Bracket, Rear Stay
|
2LJ-21688-00-00 |
— | ||
|
25
|
25
2LJ-21689-00-00
Bracket, Rear Stay 2
|
2LJ-21689-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
27
|
27
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
27
|
27
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
