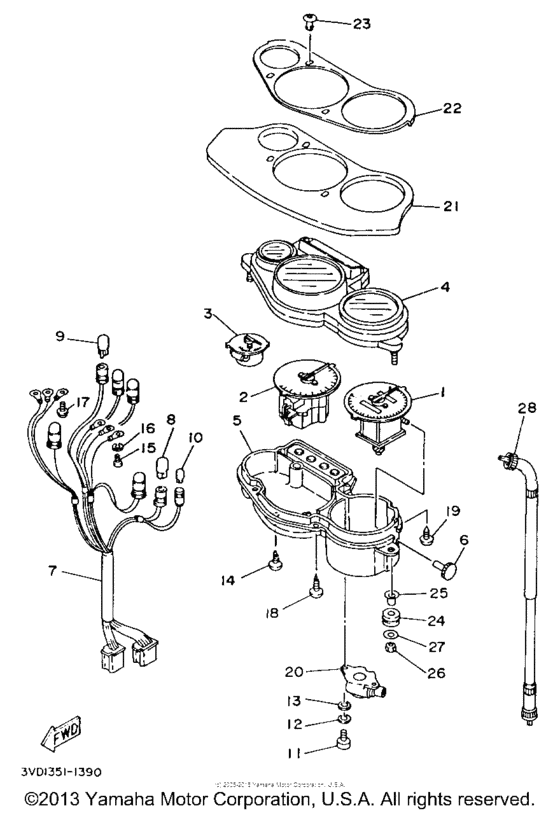

Meter Diagram Yamaha TDM850
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4DT-83570-00-00
Speedometer Asy
|
4DT-83570-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3VD-83570-10-00
Speedometer Assy
|
3VD-83570-10-00 |
— | ||
|
2
|
2
3VD-83540-00-00
Tachometer Assembly
|
3VD-83540-00-00 |
— | ||
|
3
|
3
3GM-83590-00-00
Water Temperature As
AS |
3GM-83590-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4TX-83590-00-00
Water Temperature Assy
AS |
4TX-83590-00-00 |
— | ||
|
4
|
4
3VD-83559-00-00 Cover, Meter |
3VD-83559-00-00 |
US $149.38 |
||
| replacement | |||||
|
4
|
4
3GM-83559-00-00 Cover, Meter |
3GM-83559-00-00 |
US $180.50 |
||
|
5
|
5
4DT-8353H-00-00 Case, Inner |
4DT-8353H-00-00 |
US $85.77 |
||
| replacement | |||||
|
5
|
5
3VD-8353H-00-00 Case, Under |
3VD-8353H-00-00 |
US $85.77 |
||
|
6
|
6
2GH-83578-00-00 Knob, Trip Meter |
2GH-83578-00-00 |
US $15.46 |
||
|
7
|
7
3VD-83509-00-00
Socket Cord Assembly
|
3VD-83509-00-00 |
— | ||
|
8
|
8
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W T10 |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
8
|
8
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W T10 |
4G1-84744-00-XX |
— | ||
|
9
|
9
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W T10 |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
9
|
9
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W T10 |
4G1-84744-00-XX |
— | ||
|
10
|
10
42X-83517-00-00 Bulb (14V-3.4W)12V-3W |
42X-83517-00-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
3FV-83517-00-00 Bulb (12V-1.7W)12V-3W |
3FV-83517-00-00 |
from US $4.99 |
||
|
11
|
11
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
14
|
14
90167-04057-00 Screw, Tapping |
90167-04057-00 |
from US $1.98 |
||
|
15
|
15
98580-03010-00 Screw Pan Head |
98580-03010-00 |
from US $1.98 |
||
|
16
|
16
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
17
|
17
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
18
|
18
90164-04008-00 Screw, Tapping |
90164-04008-00 |
from US $2.55 |
||
|
19
|
19
90167-03058-00 Screw, Tapping |
90167-03058-00 |
from US $1.57 |
||
| replacement | |||||
|
19
|
19
90167-03053-00 Screw, Tapping(3Bc) |
90167-03053-00 |
US $2.50 |
||
|
20
|
20
3GM-83520-00-00 Socket Cord Assy |
3GM-83520-00-00 |
from US $140.82 |
||
| replacement | |||||
|
20
|
20
4FM-83520-00-00 Socket Cord Assy |
4FM-83520-00-00 |
from US $140.82 |
||
|
21
|
21
3VD-83513-10-00
Damper
|
3VD-83513-10-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
3VD-83611-00-00
Panel, Meter
|
3VD-83611-00-00 |
— | ||
|
23
|
23
3GM-83525-00-00
Clip
|
3GM-83525-00-00 |
— | ||
|
24
|
24
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.94 |
||
|
25
|
25
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
26
|
26
95316-06600-00 Nut (31A) |
95316-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
26
|
26
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
27
|
27
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
27
|
27
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
27
|
27
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
28
|
28
1FK-83550-10-00 Speedometer Cable Assembly |
1FK-83550-10-00 |
from US $45.73 |
||
| replacement | |||||
|
28
|
28
1FK-83550-11-00 Speedometer Cable Assembly |
1FK-83550-11-00 |
from US $21.22 |
||
