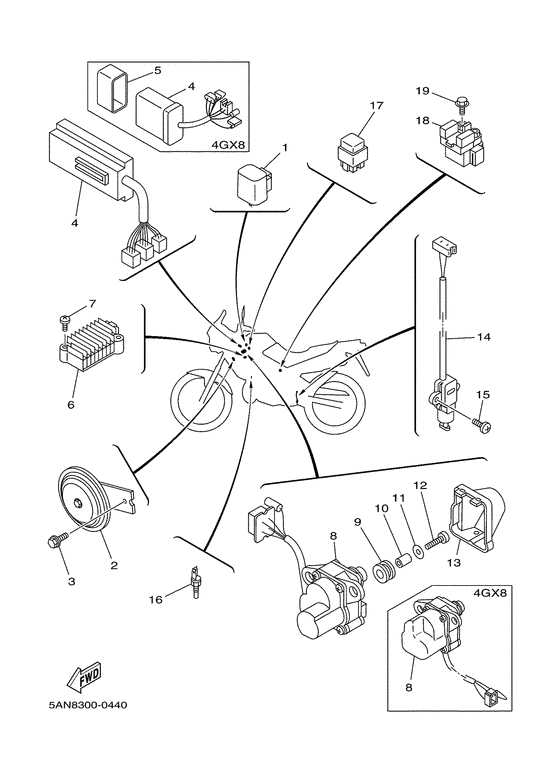

Electrical 2 Diagram Yamaha TDR125
- Year
- 2000
- Colour
- Black 2 (BL2; 004B)
- Model code
- 5AN8
- Sales region
- Belgium (020)
- Engine Capacity
- 125
- Model
- TDR125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1LK-83350-00-00 Flasher Relay Assy |
1LK-83350-00-00 |
US $50.15 |
||
| replacement | |||||
|
01
|
01
34L-83350-20-00 Flasher Relay Assy |
34L-83350-20-00 |
from US $30.31 |
||
|
02
|
02
3BN-83371-00-00 Horn |
3BN-83371-00-00 |
from US $59.65 |
||
| replacement | |||||
|
02
|
02
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
03
|
03
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
03
|
03
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
04
|
04
5AE-85540-20-00
C.d.i. Unit Assy
|
5AE-85540-20-00 |
— | ||
|
06
|
06
3TJ-81960-02-00 Rectifier & Regulator Assy |
3TJ-81960-02-00 |
from US $198.22 |
||
|
07
|
07
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
07
|
07
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
08
|
08
5AE-85820-00-00
Servo Motor Assy
|
5AE-85820-00-00 |
— | ||
|
09
|
09
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
10
|
10
90387-06299-00 Collar |
90387-06299-00 |
from US $1.70 |
||
| replacements | |||||
|
10
|
10
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.63 |
||
|
10
|
10
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
11
|
11
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
12
|
12
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
12
|
12
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
13
|
13
34X-85825-01-00 Cover, Wire |
34X-85825-01-00 |
US $18.59 |
||
|
14
|
14
3LD-82566-40-00 Switch, Side Stand |
3LD-82566-40-00 |
from US $61.74 |
||
| replacement | |||||
|
14
|
14
3LD-82566-41-00 Switch, Side Stand |
3LD-82566-41-00 |
US $77.69 |
||
|
15
|
15
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
16
|
16
4FU-83591-00-00 Thermo Unit |
4FU-83591-00-00 |
US $91.74 |
||
|
17
|
17
25G-81950-01-00 Relay Assy (25G-01) |
25G-81950-01-00 |
from US $34.43 |
||
| replacement | |||||
|
17
|
17
25G-81950-02-00 реле в сборереле в сборе |
25G-81950-02-00 |
from US $33.05 |
||
|
18
|
18
4FU-81940-00-00 Starter Relay Assy |
4FU-81940-00-00 |
from US $84.28 |
||
| replacement | |||||
|
18
|
18
4FU-81940-02-00 Starter Relay Assy (Rc19-004) |
4FU-81940-02-00 |
from US $71.42 |
||
|
19
|
19
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
