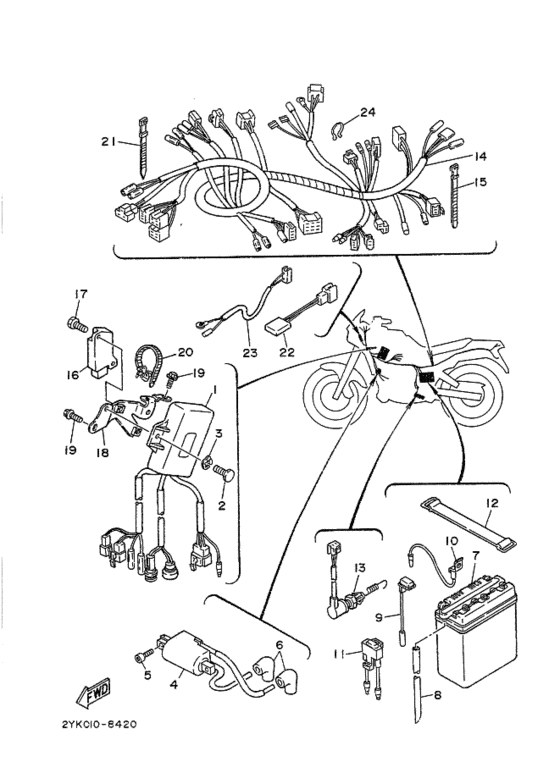

Electrical 1 Diagram Yamaha TDR250
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2YK1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2YK-85540-00-00
C.d.i. Unit Assy
．．．ＣＤＩユニツトアセンブリ; |
2YK-85540-00-00 |
— | ||
|
2
|
2
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
2
|
2
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
3
|
3
92901-06700-00 Washer,waveワツシヤ， ウエイブ; |
92901-06700-00 |
from US $1.26 |
||
| replacement | |||||
|
3
|
3
92907-06700-00 Washer(6Ta)ワツシヤ， ウエイブ; |
92907-06700-00 |
from US $2.13 |
||
|
4
|
4
2YK-82310-00-00 Ignition Coil Assy |
2YK-82310-00-00 |
US $203.10 |
||
| replacement | |||||
|
4
|
4
3LC-82310-01-00 Ignition Coil Assy |
3LC-82310-01-00 |
from US $203.10 |
||
|
5
|
5
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
6
|
6
1M1-82370-21-00 Plug Cap Assyウイズ ノイズ サプレツサ |
1M1-82370-21-00 |
from US $28.34 |
||
| replacement | |||||
|
6
|
6
8DG-82370-00-00 Plug Cap Assyウイズ ノイズ サプレツサ |
8DG-82370-00-00 |
from US $28.34 |
||
|
7
|
7
43F-82110-60-00
Battery Assy
|
43F-82110-60-00 |
— | ||
| replacements | |||||
|
7
|
7
907-9R242-85-00
Battery (Yb5L-B)
|
907-9R242-85-00 |
— | ||
|
7
|
7
YB5-LB000-00-00
Bat Yb5L-B Yu
|
YB5-LB000-00-00 |
— | ||
|
7
|
7
CB5-LB000-00-00
12N5.5A-3B GS BATTE
|
CB5-LB000-00-00 |
— | ||
|
8
|
8
90445-08171-00
Pipe, Breather
ホース; |
90445-08171-00 |
— | ||
| replacements | |||||
|
8
|
8
999-99999-99-00
Not Available
ホース; |
999-99999-99-00 |
— | ||
|
8
|
8
2RH-21826-00-00
Pipe, Breather
ホース; |
2RH-21826-00-00 |
— | ||
|
9
|
9
1M1-82115-00-00 Wire, Plus Leadワイヤ， プラスリード; |
1M1-82115-00-00 |
from US $26.21 |
||
|
10
|
10
2J2-82116-00-00 Wire, Minus Leadワイヤ， マイナスリード; |
2J2-82116-00-00 |
US $13.63 |
||
|
11
|
11
51Y-82180-00-00
Circuit Brkr.assemblyassy
サーキツトブレーカーアセンブリ; |
51Y-82180-00-00 |
— | ||
|
12
|
12
43G-14455-00-00 Band |
43G-14455-00-00 |
US $275.50 |
||
|
13
|
13
2TK-82530-00-00 Stop Switch Assy |
2TK-82530-00-00 |
US $21.96 |
||
| replacement | |||||
|
13
|
13
2TK-82530-02-00 Stop Switch Assy |
2TK-82530-02-00 |
US $21.96 |
||
|
14
|
14
2YK-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
2YK-82590-00-00 |
— | ||
|
15
|
15
437-83936-10-00 Band, Switch Cordバンド， スイツチコード; |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
437-83936-11-00 Band, Switch Cordバンド， スイツチコード; |
437-83936-11-00 |
from US $1.56 |
||
|
16
|
16
47X-81960-A1-00
Rectifier & Regulator Assembly
レクチフアイヤアンドレギユレータアセンブリ; |
47X-81960-A1-00 |
— | ||
| replacement | |||||
|
16
|
16
47X-81960-A3-00 Rectifier & Regulator Assemblyレクチフアイヤアンドレギユレータアセンブリ; |
47X-81960-A3-00 |
from US $220.41 |
||
|
17
|
17
91312-06012-00 Bolt, Hext. Socket Head |
91312-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
18
|
18
2YK-21274-00-00
Bracket, C.d.i. Unit
．．．ブラケツト， ＣＤＩユニツト; |
2YK-21274-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
．．．ブラケツト， ＣＤＩユニツト; |
999-99999-99-00 |
— | ||
|
19
|
19
95801-06010-00 Bolt, Flangeボツト， フランジ; |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
19
|
19
95817-06010-00 Bolt, Flangeボツト， フランジ; |
95817-06010-00 |
from US $1.18 |
||
|
19
|
19
95812-06010-00 Bolt, Flangeボツト， フランジ; |
95812-06010-00 |
from US $1.07 |
||
|
20
|
20
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.39 |
||
| replacement | |||||
|
20
|
20
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
21
|
21
437-83936-00-00
Band, Switch Cord
バンド， スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
21
|
21
437-83936-01-00 Band, Switch Cordバンド， スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
22
|
22
4L6-81980-M0-00 Diodeダイオード; |
4L6-81980-M0-00 |
US $54.76 |
||
|
23
|
23
2YK-82509-00-00
Wire, Sub Lead
ワイヤ， リブレード; |
2YK-82509-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
ワイヤ， リブレード; |
999-99999-99-00 |
— | ||
|
24
|
24
90464-13066-00 Clamp |
90464-13066-00 |
from US $1.73 |
||
