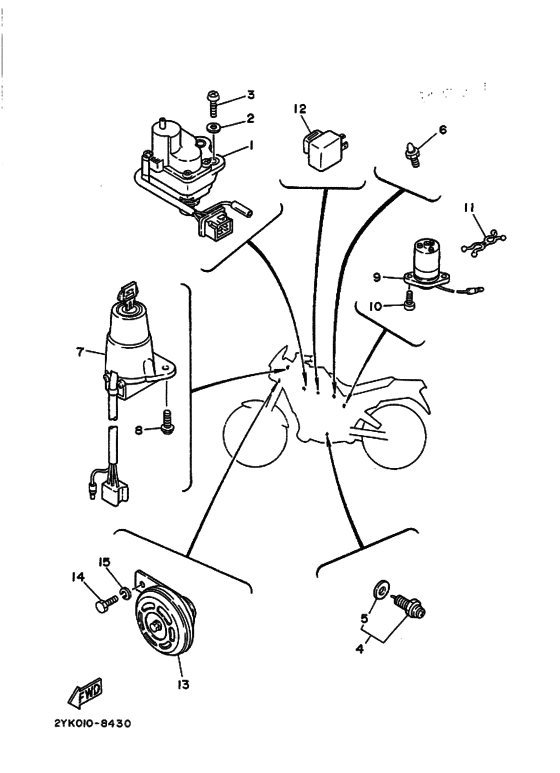

Electrical 2 Diagram Yamaha TDR250
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2YK1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1KT-85820-01-00
Servo Motor Assy
サーボモータアセンブリ; |
1KT-85820-01-00 |
— | ||
|
2
|
2
90201-06067-00 Washer, Plateワツシヤ， プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
2
|
2
90201-06380-00 Washer Plainワツシヤ， プレート; |
90201-06380-00 |
from US $0.86 |
||
|
3
|
3
92501-06025-00 Screw, Pan Headスクリユ， パンヘツド; |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
98517-06025-00 Screw, Pan Headスクリユ， パンヘツド; |
98517-06025-00 |
from US $1.42 |
||
|
4
|
4
341-82540-01-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
341-82540-01-00 |
— | ||
| replacements | |||||
|
4
|
4
4KM-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
4KM-82540-00-00 |
— | ||
|
4
|
4
4GY-82540-10-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
4GY-82540-10-00 |
from US $26.22 |
||
|
5
|
5
341-82543-00-00
Gasket
．ガスケツト; |
341-82543-00-00 |
— | ||
| replacement | |||||
|
5
|
5
296-82543-00-00 Gasket．ガスケツト; |
296-82543-00-00 |
from US $2.69 |
||
|
6
|
6
2YK-83591-00-00 Thermo Unitサーモユニツト; |
2YK-83591-00-00 |
from US $41.65 |
||
|
7
|
7
2AL-82025-00-00
Key Set
キーセツト; ＡＰ＊１ |
2AL-82025-00-00 |
— | ||
| replacement | |||||
|
7
|
7
2AL-82031-00-00
Key Set
キーセツト; ＡＰ＊１ |
2AL-82031-00-00 |
— | ||
|
7
|
7
2AL-82501-00-00 Main Switch Steering Lock |
2AL-82501-00-00 |
from US $81.75 |
||
| replacement | |||||
|
7
|
7
3TU-82501-00-00 Main Switch Steering Lock |
3TU-82501-00-00 |
US $268.88 |
||
|
8
|
8
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
9
|
9
5G9-85720-00-00
Oil Level Gauge Assy
オイルレベルゲージアセンブリ; |
5G9-85720-00-00 |
— | ||
|
10
|
10
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.52 |
||
| replacement | |||||
|
10
|
10
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
11
|
11
90464-10038-00 Clamp |
90464-10038-00 |
from US $1.55 |
||
|
12
|
12
34L-83350-20-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
34L-83350-20-00 |
from US $30.31 |
||
|
13
|
13
33M-83371-20-00 Hornホーン; |
33M-83371-20-00 |
from US $55.54 |
||
| replacement | |||||
|
13
|
13
4KG-83371-11-00 Hornホーン; |
4KG-83371-11-00 |
from US $55.54 |
||
|
14
|
14
97001-06012-00 Bolt, Hexagonボルト; |
97001-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
14
|
14
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $2.22 |
||
|
14
|
14
970-13060-12-00
Bolt
ボルト; |
970-13060-12-00 |
— | ||
|
15
|
15
929-90061-00-00
Washer, Spring
ワツシヤ， スプリング; |
929-90061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Springワツシヤ， スプリング; |
929-95061-00-00 |
from US $0.97 |
||
