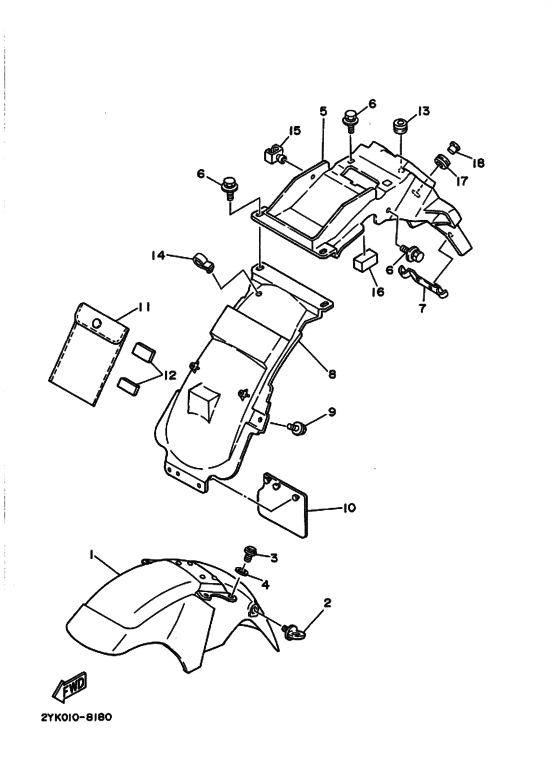

Fender Diagram Yamaha TDR250
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2YK1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2YK-21510-00-33
Front Fender Comp
フロントフエンダコンプリート; ＵＲ ヤマハ ブラツク |
2YK-21510-00-33 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
フロントフエンダコンプリート; ＵＲ ヤマハ ブラツク |
999-99999-99-00 |
— | ||
|
2
|
2
1A8-21518-00-00 Holder, Cableボルダ， ケーブル; |
1A8-21518-00-00 |
from US $4.53 |
||
|
3
|
3
95023-06012-00 Bolt, Flange (Small Head)ボルト， フランジ; |
95023-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
95024-06012-00 Bolt, Flange (Small Head)ボルト， フランジ; |
95024-06012-00 |
from US $1.56 |
||
|
4
|
4
92990-06200-00 Washer, Plainワツシヤ， プレーン; |
92990-06200-00 |
from US $1.18 |
||
|
5
|
5
2YK-21611-00-00
Fender, Rear
フエンダ， リヤ; |
2YK-21611-00-00 |
— | ||
|
6
|
6
90119-06108-00 Bolt, With Washerボルト， ウイズワツシヤ; |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
97017-06016-00 Boltボルト， ウイズワツシヤ; |
97017-06016-00 |
from US $1.39 |
||
|
7
|
7
2YK-21688-00-00
Bracket, Rear Stay
ブラケツト， リヤステー; |
2YK-21688-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
ブラケツト， リヤステー; |
999-99999-99-00 |
— | ||
|
8
|
8
2YK-21629-00-00
Guard, Mud
ガード， マツド; |
2YK-21629-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
ガード， マツド; |
999-99999-99-00 |
— | ||
|
9
|
9
90119-06117-00 Bolt, With Washerボルト， ウイズワツシヤ; |
90119-06117-00 |
from US $1.81 |
||
| replacement | |||||
|
9
|
9
97017-06012-00 Boltボルト， ウイズワツシヤ; |
97017-06012-00 |
from US $1.39 |
||
|
10
|
10
34X-21691-00-00 Flap |
34X-21691-00-00 |
from US $17.57 |
||
|
11
|
11
4K5-28186-00-00 Pouchポーチ; |
4K5-28186-00-00 |
from US $13.88 |
||
|
12
|
12
4K5-2814E-10-00 Hook |
4K5-2814E-10-00 |
from US $3.26 |
||
|
13
|
13
90480-10258-00 Grommet |
90480-10258-00 |
from US $1.98 |
||
|
14
|
14
90464-12027-00 Clamp |
90464-12027-00 |
from US $3.74 |
||
|
15
|
15
90464-08020-00 Clamp |
90464-08020-00 |
from US $1.98 |
||
|
16
|
16
2YK-21747-00-00 Damper |
2YK-21747-00-00 |
from US $3.12 |
||
|
17
|
17
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.66 |
||
|
18
|
18
903-87063-88-00
Collar
カラー; |
903-87063-88-00 |
— | ||
| replacement | |||||
|
18
|
18
90387-06158-00 Collarカラー; |
90387-06158-00 |
from US $1.66 |
||
