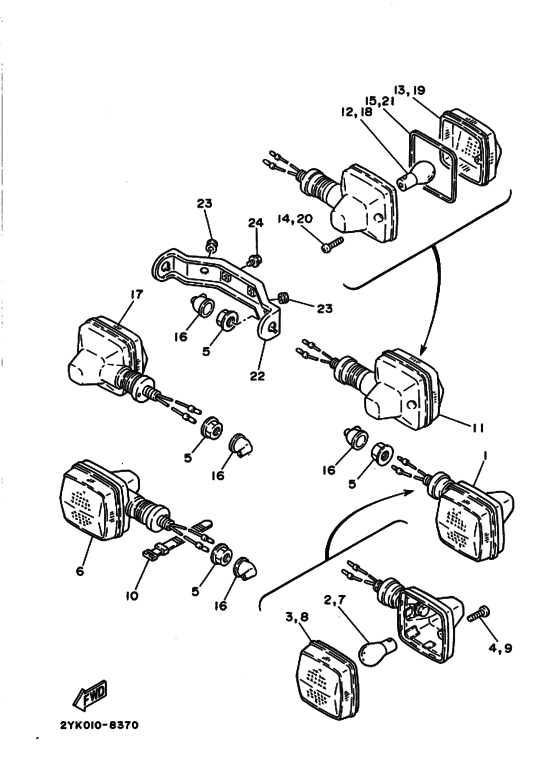

Flasher light Diagram Yamaha TDR250
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2YK1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34X-83310-20-00
Front Flasher Light Assy 1
|
34X-83310-20-00 |
— | ||
| replacement | |||||
|
1
|
1
34X-83330-20-00
Rear Flasher Light Assy 1
|
34X-83330-20-00 |
— | ||
|
2
|
2
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
2
|
2
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
3
|
3
47J-83312-00-00 Lens, Flasher．レンズ， フラツシヤ; |
47J-83312-00-00 |
US $11.76 |
||
|
4
|
4
97706-40520-00 Screw, Tapping．スクリユ， タツピング; |
97706-40520-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
97707-40520-00 Screw, Tapping．スクリユ， タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
5
|
5
95701-12500-00 P66 Nut, Flange (1Uv)ナツト， フランジ; |
95701-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
5
|
5
90179-12657-00 Nutナツト， フランジ; |
90179-12657-00 |
from US $7.21 |
||
|
5
|
5
90179-12588-00 Nut, Flangeナツト， フランジ; |
90179-12588-00 |
from US $2.22 |
||
|
6
|
6
34X-83330-20-00
Rear Flasher Light Assy 1
フロントフラツシヤライトアセンブリ １; |
34X-83330-20-00 |
— | ||
|
7
|
7
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
7
|
7
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
8
|
8
47J-83322-00-00 Lens, Flasher 2．レンズ， フラツシヤ ２; |
47J-83322-00-00 |
US $11.76 |
||
|
9
|
9
97706-40520-00 Screw, Tapping．スクユル， タツピング; |
97706-40520-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
97707-40520-00 Screw, Tapping．スクユル， タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
10
|
10
437-83936-00-00
Band, Switch Cord
バンド， スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cordバンド， スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
2YK-83330-20-00
Rear Flasher Light Assy 1
リヤフラツシヤライトアセンブリ １; |
2YK-83330-20-00 |
— | ||
| replacement | |||||
|
11
|
11
34X-83330-20-00
Rear Flasher Light Assy 1
リヤフラツシヤライトアセンブリ １; |
34X-83330-20-00 |
— | ||
|
12
|
12
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
12
|
12
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
13
|
13
47J-83322-00-00 Lens, Flasher 2．レンズ， フラツシヤ ２; |
47J-83322-00-00 |
US $11.76 |
||
|
14
|
14
97706-40520-00 Screw, Tapping．スクリユ， タツピング; |
97706-40520-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
97707-40520-00 Screw, Tapping．スクリユ， タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
15
|
15
47J-83313-00-00 Gasket, Flasher Lens．ガスケツト， フラツシヤレンズ; |
47J-83313-00-00 |
US $3.26 |
||
|
16
|
16
18G-83365-00-00 Cap |
18G-83365-00-00 |
from US $6.06 |
||
|
17
|
17
2YK-83340-20-00
Rear Flasher Light Assy 2
リヤフラツシヤライトアセンブリ ２; |
2YK-83340-20-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
リヤフラツシヤライトアセンブリ ２; |
999-99999-99-00 |
— | ||
|
18
|
18
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
18
|
18
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
19
|
19
47J-83312-00-00 Lens, Flasher．レンズ， フラツシヤ; |
47J-83312-00-00 |
US $11.76 |
||
|
20
|
20
97706-40520-00 Screw, Tapping．スクリユ， タツピング; |
97706-40520-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
97707-40520-00 Screw, Tapping．スクリユ， タツピング; |
97707-40520-00 |
from US $1.56 |
||
|
21
|
21
47J-83313-00-00 Gasket, Flasher Lens．ガスケツト， フラツシヤレンズ; |
47J-83313-00-00 |
US $3.26 |
||
|
22
|
22
2YK-83318-00-00
Stay, Flasher 1
ステー， フラツシヤ １; |
2YK-83318-00-00 |
— | ||
|
23
|
23
90480-09364-00
Grommet
|
90480-09364-00 |
— | ||
|
24
|
24
98006-06025-00 Bolt |
98006-06025-00 |
US $1.42 |
||
| replacement | |||||
|
24
|
24
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
