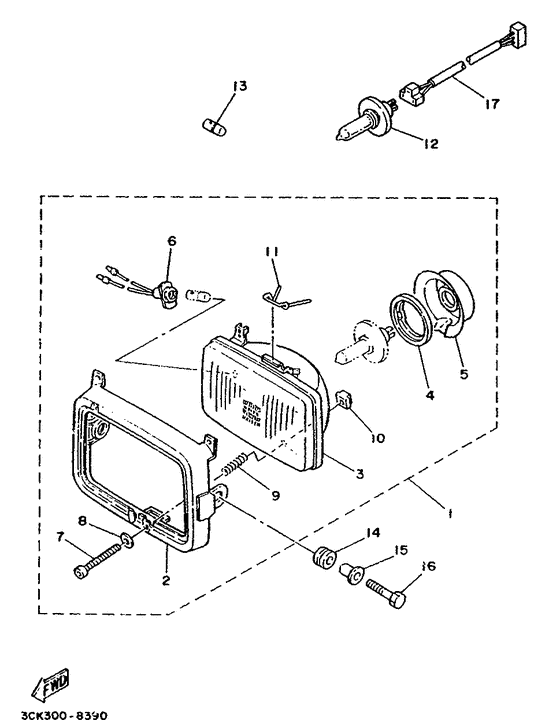

Headlight Diagram Yamaha TDR250
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3CK1
- Sales region
- Germany (999)
- Engine Capacity
- 250
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3CK-84303-00-00
Headlight Unit Assy
|
3CK-84303-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
47J-84115-00-00 Rim, Headlight |
47J-84115-00-00 |
from US $91.98 |
||
|
03
|
03
3CK-84320-00-00
Lens Assy
|
3CK-84320-00-00 |
— | ||
|
04
|
04
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
05
|
05
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
06
|
06
34L-84346-00-00 Socket, Pilot Light |
34L-84346-00-00 |
US $21.11 |
||
| replacement | |||||
|
06
|
06
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
07
|
07
90110-04117-00 Bolt, Hexagon Socket Head |
90110-04117-00 |
US $5.67 |
||
| replacement | |||||
|
07
|
07
43F-84131-00-00 Screw, Rim Adjuster |
43F-84131-00-00 |
from US $5.97 |
||
|
08
|
08
233-84127-60-00 Washer, Special |
233-84127-60-00 |
from US $4.84 |
||
|
09
|
09
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
10
|
10
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
11
|
11
14T-84124-00-00 Set Spring (5G2-84324-A0) |
14T-84124-00-00 |
from US $7.08 |
||
|
12
|
12
2F9-84314-00-00 Bulb (12V 60/55W Halogen)Lm halogen |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
12
|
12
5V2-84314-00-XX
Bulb (12V-60/55W)
Lm halogen |
5V2-84314-00-XX |
— | ||
|
12
|
12
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
Lm halogen |
YMC-00903-00-00 |
— | ||
|
12
|
12
5VK-H4314-00-00 Bulb, HeadlightLm halogen |
5VK-H4314-00-00 |
US $45.92 |
||
|
12
|
12
8V0-84314-10-00 Bulb, HeadlightLm halogen |
8V0-84314-10-00 |
from US $45.92 |
||
|
13
|
13
4E2-84347-00-00 Bulb (12V-4W)Lm |
4E2-84347-00-00 |
US $4.82 |
||
|
14
|
14
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
15
|
15
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
15
|
15
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
16
|
16
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
17
|
17
2YK-84359-00-00
Cord, Headlight
|
2YK-84359-00-00 |
— | ||
