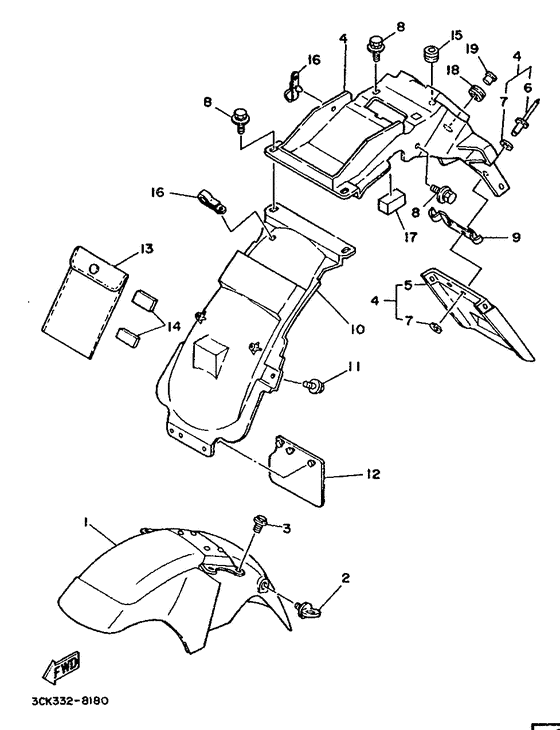

Fender Diagram Yamaha TDR250
- Year
- 1990
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3CK2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3CK-21510-00-00
Front Fender Comp
Ur yamaha black |
3CK-21510-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur yamaha black |
999-99999-99-00 |
— | ||
|
01
|
01
3CK-21510-20-00
Front Fender Comp
Ur sweet blue |
3CK-21510-20-00 |
— | ||
|
02
|
02
1A8-21518-00-00 Holder, Cable |
1A8-21518-00-00 |
from US $4.53 |
||
|
03
|
03
90105-06551-00 Bolt, Flange |
90105-06551-00 |
US $1.56 |
||
| replacement | |||||
|
03
|
03
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
04
|
04
3CK-W2161-00-00
Rear Fender Comp
|
3CK-W2161-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
3CK-21621-00-00
Flap
|
3CK-21621-00-00 |
— | ||
|
06
|
06
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
07
|
07
90201-40029-00
Washer, Plate
|
90201-40029-00 |
— | ||
|
08
|
08
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
08
|
08
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
09
|
09
2YK-21688-01-00
Bracket, Rear Stay
|
2YK-21688-01-00 |
— | ||
|
10
|
10
2YK-21629-00-00
Guard, Mud
|
2YK-21629-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.81 |
||
| replacement | |||||
|
11
|
11
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
12
|
12
34X-21691-00-00 Flap |
34X-21691-00-00 |
from US $17.57 |
||
|
13
|
13
4K5-28186-00-00 Pouch |
4K5-28186-00-00 |
from US $13.88 |
||
|
14
|
14
4K5-2814E-10-00 Hook |
4K5-2814E-10-00 |
from US $3.26 |
||
|
15
|
15
90480-10258-00 Grommet |
90480-10258-00 |
from US $1.98 |
||
|
16
|
16
90464-12027-00 Clamp |
90464-12027-00 |
from US $3.74 |
||
|
17
|
17
2YK-21747-00-00 Damper |
2YK-21747-00-00 |
from US $3.12 |
||
|
18
|
18
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.66 |
||
|
19
|
19
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
19
|
19
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
