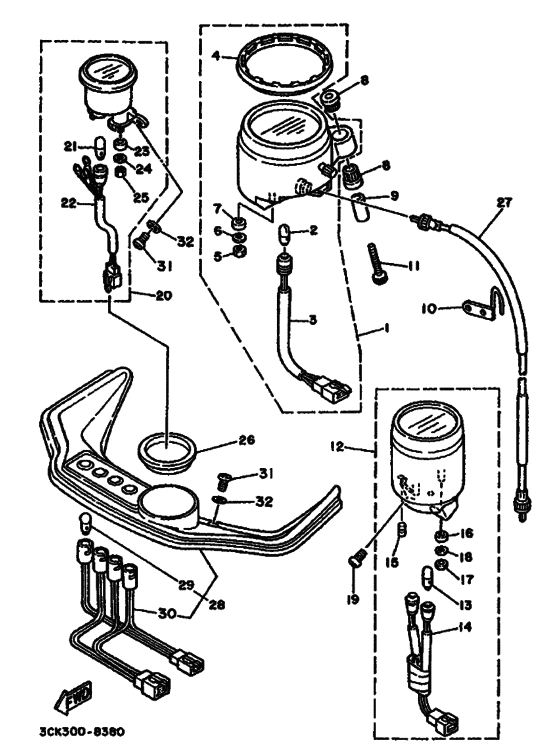

Meter Diagram Yamaha TDR250
- Year
- 1990
- Colour
- Sweet Blue (SWB; 00HN)
- Model code
- 3NR2
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3CL-83580-00-00
Speedometer Assy
|
3CL-83580-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
2
|
2
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W |
4G1-84744-00-XX |
— | ||
|
3
|
3
3CL-83509-00-00
Socket Cord Assy
|
3CL-83509-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
1AE-83513-00-00 Damper |
1AE-83513-00-00 |
from US $26.05 |
||
|
5
|
5
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
5
|
5
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
|
6
|
6
902-01052-E2-00
Washer, Plate
|
902-01052-E2-00 |
— | ||
| replacement | |||||
|
6
|
6
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.81 |
||
|
7
|
7
584-83523-00-00 Damper |
584-83523-00-00 |
from US $8.36 |
||
| replacement | |||||
|
7
|
7
21L-H3523-10-00
Damper
|
21L-H3523-10-00 |
— | ||
|
8
|
8
1JK-83541-00-00 Damper |
1JK-83541-00-00 |
from US $7.23 |
||
|
9
|
9
90387-06676-00 Collar |
90387-06676-00 |
from US $3.10 |
||
|
10
|
10
2YK-25887-00-00
Holder, Brake Hose
|
2YK-25887-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
913-16060-40-00
Bolt
|
913-16060-40-00 |
— | ||
| replacement | |||||
|
11
|
11
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
12
|
12
2YK-83540-00-00
Tachometer Assy
|
2YK-83540-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
2GV-83517-00-00 Bulb (12V-1.7W)12V-1.7W |
2GV-83517-00-00 |
from US $4.53 |
||
| replacement | |||||
|
13
|
13
3FV-83517-00-00 Bulb (12V-1.7W)12V-1.7W |
3FV-83517-00-00 |
from US $4.99 |
||
|
14
|
14
2YK-83509-10-00
Socket Cord Assy
|
2YK-83509-10-00 |
— | ||
|
15
|
15
29L-83523-00-00 Damper |
29L-83523-00-00 |
from US $22.53 |
||
|
16
|
16
1FG-83523-00-00 Damper |
1FG-83523-00-00 |
from US $7.37 |
||
|
17
|
17
95306-05600-00 Nut |
95306-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
17
|
17
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
|
18
|
18
902-01052-E2-00
Washer, Plate
|
902-01052-E2-00 |
— | ||
| replacement | |||||
|
18
|
18
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.81 |
||
|
19
|
19
98506-06010-00 Screw, Pan Head |
98506-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
20
|
20
2YK-83590-00-00
Water Temperature Assy
|
2YK-83590-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
2GV-83517-00-00 Bulb (12V-1.7W)12V-1.7W |
2GV-83517-00-00 |
from US $4.53 |
||
| replacement | |||||
|
21
|
21
3FV-83517-00-00 Bulb (12V-1.7W)12V-1.7W |
3FV-83517-00-00 |
from US $4.99 |
||
|
22
|
22
2YK-83509-20-00
Socket Cord Assy
|
2YK-83509-20-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
1FK-83523-00-00 Damper |
1FK-83523-00-00 |
from US $3.60 |
||
|
24
|
24
55F-83524-V0-00
Washer, Special
|
55F-83524-V0-00 |
— | ||
|
25
|
25
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
26
|
26
1AA-83592-00-00
Damper
|
1AA-83592-00-00 |
— | ||
|
27
|
27
2YK-83550-00-00
Speedometer Cable Assy
|
2YK-83550-00-00 |
— | ||
| replacement | |||||
|
27
|
27
2YK-83550-01-00
Speedometer Cable Assy
|
2YK-83550-01-00 |
— | ||
|
28
|
28
2YK-8357X-00-00
Panel Assy
|
2YK-8357X-00-00 |
— | ||
|
29
|
29
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
29
|
29
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
30
|
30
2YK-83536-00-00
Socket, Meter
|
2YK-83536-00-00 |
— | ||
|
31
|
31
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
31
|
31
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
32
|
32
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
