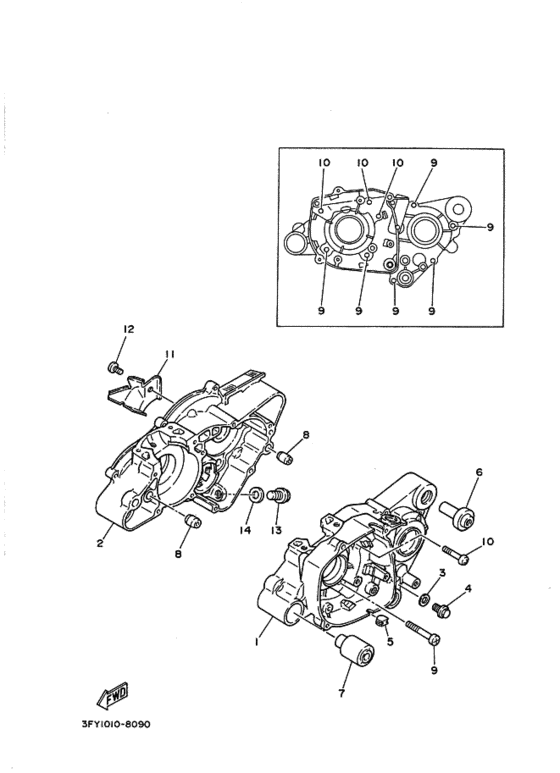

Crankcase Diagram Yamaha TDR50
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 3FY1
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- TDR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5R2-15111-02-00 Crankcase 1クランクケース １; （＊１） |
5R2-15111-02-00 |
from US $419.45 |
||
| replacement | |||||
|
1
|
1
5R2-15111-09-00 Crankcase 1クランクケース １; （＊１） |
5R2-15111-09-00 |
from US $292.18 |
||
|
2
|
2
5R2-15121-02-00 Crankcase 2クランクケース ２; |
5R2-15121-02-00 |
US $303.80 |
||
|
3
|
3
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
4
|
4
95801-10014-00 Bolt, Flangeボルト， フランジ; |
95801-10014-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
90105-10147-00 Bolt, Flangeボルト， フランジ; |
90105-10147-00 |
from US $2.13 |
||
|
5
|
5
90480-08349-00 Grommet |
90480-08349-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
90338-09206-00 Plug(2Xj) |
90338-09206-00 |
from US $1.56 |
||
|
6
|
6
53V-15317-00-00 Spacer, Eng Mountスペーサ， エンジンマウント; |
53V-15317-00-00 |
from US $10.13 |
||
|
7
|
7
3GA-15327-00-00
Spacer, Engine Mount
スペーサ， エンジンマウント; |
3GA-15327-00-00 |
— | ||
|
8
|
8
995-10120-16-00
Pin, Dowel
ピン， ダウエル; |
995-10120-16-00 |
— | ||
| replacement | |||||
|
8
|
8
99530-12016-00 Pin, Dowelピン， ダウエル; |
99530-12016-00 |
from US $1.52 |
||
|
9
|
9
92503-06045-00 Screw, Pan Head (92503-06045-00スクリユ， パンヘツド; |
92503-06045-00 |
from US $4.25 |
||
| replacement | |||||
|
9
|
9
98580-06545-00 Screw, Pan Head (92503-06045-00スクリユ， パンヘツド; |
98580-06545-00 |
from US $4.25 |
||
|
10
|
10
92501-06035-00 Screw, Pan Headスクリユ， パンヘツド; |
92501-06035-00 |
from US $1.21 |
||
| replacements | |||||
|
10
|
10
98507-06035-00 Screw, Pan Headスクリユ， パンヘツド; |
98507-06035-00 |
from US $1.39 |
||
|
10
|
10
97885-06035-00 Screw, Pan Headスクリユ， パンヘツド; |
97885-06035-00 |
from US $2.13 |
||
|
11
|
11
5R2-15113-00-00 Plateプレート; |
5R2-15113-00-00 |
US $2.32 |
||
| replacement | |||||
|
11
|
11
2RA-15113-00-00 Plateプレート; |
2RA-15113-00-00 |
US $2.09 |
||
|
12
|
12
92501-06012-00 Screw, Pan Headスクリユ， パンヘツド; |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
985-17060-12-00 Screw, Pan Headスクリユ， パンヘツド; |
985-17060-12-00 |
from US $1.66 |
||
|
13
|
13
90340-12059-00 Plug, Straight Screwプラグ， ストレイトスクリユ; |
90340-12059-00 |
US $1.66 |
||
| replacement | |||||
|
13
|
13
90340-12006-00 Plug, Straight Screwプラグ， ストレイトスクリユ; |
90340-12006-00 |
from US $1.66 |
||
|
14
|
14
90430-12038-00 Gasket |
90430-12038-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
90430-12207-00 Gasket |
90430-12207-00 |
from US $2.35 |
||
