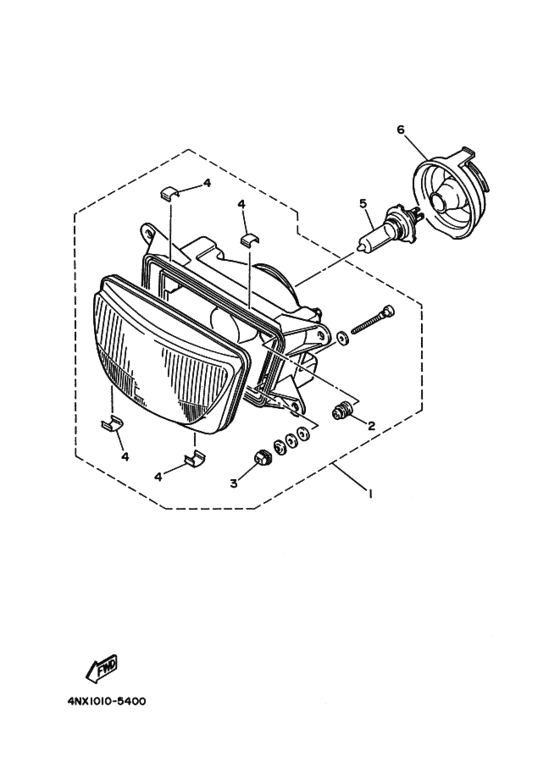

Headlight Diagram Yamaha TRX850
- Year
- 1998
- Colour
- Heat Red (HTR; 00EY)
- Model code
- 4NX2
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- A
- Model
- TRX850
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HH-84320-00-00
Lens Assembly
|
3HH-84320-00-00 |
— | ||
|
2
|
2
3AJ-8431U-00-00 Holder．ホルダ; |
3AJ-8431U-00-00 |
from US $8.93 |
||
|
3
|
3
51L-84334-00-00 Nut, Adjusting．ナツト，アジヤステイング; |
51L-84334-00-00 |
from US $10.55 |
||
|
4
|
4
3MA-8413H-00-00
Plate, Spring
．プレート，スプリング; |
3MA-8413H-00-00 |
— | ||
|
5
|
5
2F9-84314-00-00 Bulb (12V 60/55W Halogen)バルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
5
|
5
5V2-84314-00-XX
Bulb (12V-60/55W)
バルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
5V2-84314-00-XX |
— | ||
|
5
|
5
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
バルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
YMC-00903-00-00 |
— | ||
|
5
|
5
5VK-H4314-00-00 Bulb, Headlightバルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
5VK-H4314-00-00 |
US $45.92 |
||
|
5
|
5
8V0-84314-10-00 Bulb, Headlightバルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
8V0-84314-10-00 |
from US $45.92 |
||
|
6
|
6
36Y-84397-00-00 Cover, Socketカバー，ソケツト; |
36Y-84397-00-00 |
from US $21.82 |
||
