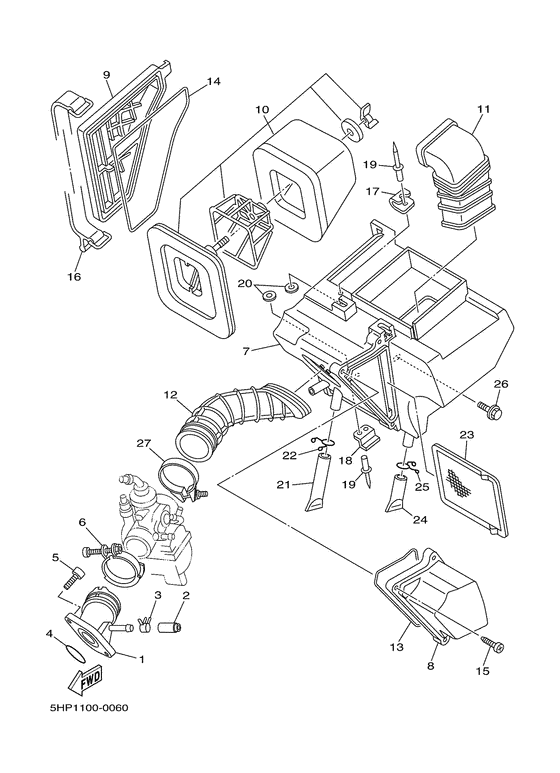

Intake Diagram Yamaha TTR125 TT-R125
- Year
- 2007
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 1B2M
- Sales region
- Australia (020)
- Engine Capacity
- 125
- Model
- TTR125L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5HP-13586-00-00 Joint, Carburetor 1 |
5HP-13586-00-00 |
from US $54.85 |
||
|
02
|
02
16G-13569-00-00 Plug, Blind |
16G-13569-00-00 |
from US $2.36 |
||
|
03
|
03
90467-10819-00 Clip |
90467-10819-00 |
from US $1.35 |
||
| replacement | |||||
|
03
|
03
90467-10039-00 Clip |
90467-10039-00 |
from US $1.39 |
||
|
04
|
04
93210-30611-00 O-Ring |
93210-30611-00 |
from US $6.06 |
||
|
05
|
05
9131M-06020-00 Bolt |
9131M-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
06
|
06
904-50440-62-00
Hose Clamp Assy
|
904-50440-62-00 |
— | ||
| replacement | |||||
|
06
|
06
904-50440-46-00 Hose Clamp Assy |
904-50440-46-00 |
from US $6.40 |
||
|
07
|
07
1B2-E4411-00-00 Case, Air Cleaner 1 |
1B2-E4411-00-00 |
from US $35.37 |
||
|
08
|
08
1B2-E4412-20-00 Cap, Cleaner Case 1 |
1B2-E4412-20-00 |
from US $12.75 |
||
|
09
|
09
1B2-E4422-00-00 Cap, Cleaner Case 2 |
1B2-E4422-00-00 |
from US $10.37 |
||
|
10
|
10
5HP-14450-00-00 Element Assy, Air Cleaner |
5HP-14450-00-00 |
from US $27.95 |
||
|
11
|
11
1B2-E4437-00-00 Duct |
1B2-E4437-00-00 |
from US $15.64 |
||
|
12
|
12
1B2-E4453-00-00 Joint, Air Cleaner 1 |
1B2-E4453-00-00 |
from US $15.91 |
||
|
13
|
13
1B2-E4452-00-00 Seal |
1B2-E4452-00-00 |
from US $2.47 |
||
|
14
|
14
1B2-E4452-10-00 Seal |
1B2-E4452-10-00 |
from US $2.74 |
||
|
15
|
15
9770M-50520-00 Screw, Tapping |
9770M-50520-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
97707-50620-00 Screw, Tapping |
97707-50620-00 |
from US $1.22 |
||
|
16
|
16
1B2-F811G-00-00 Band |
1B2-F811G-00-00 |
from US $9.49 |
||
|
17
|
17
1B2-E4484-00-00 Plate, Cleaner Case Fitting |
1B2-E4484-00-00 |
from US $1.21 |
||
|
18
|
18
1B2-E4436-00-00 Hook |
1B2-E4436-00-00 |
from US $0.79 |
||
|
19
|
19
90267-40804-00 Rivet, Blind |
90267-40804-00 |
from US $3.26 |
||
| replacement | |||||
|
19
|
19
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
20
|
20
9290M-04200-00 Washer |
9290M-04200-00 |
from US $0.45 |
||
|
21
|
21
1B2-E443E-00-00 Pipe, Drain |
1B2-E443E-00-00 |
from US $1.71 |
||
| replacement | |||||
|
21
|
21
1B2-E443E-20-00 Pipe, Drain |
1B2-E443E-20-00 |
from US $1.71 |
||
|
22
|
22
90467-15012-00 Clip |
90467-15012-00 |
from US $1.56 |
||
|
23
|
23
1B2-E4472-00-00 Plate, Element |
1B2-E4472-00-00 |
from US $9.49 |
||
|
24
|
24
1B2-E443E-10-00 Pipe, Drain |
1B2-E443E-10-00 |
from US $2.47 |
||
|
25
|
25
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
26
|
26
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
26
|
26
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
27
|
27
90460-46206-00 Hose Clamp Assy |
90460-46206-00 |
from US $6.66 |
||
| replacement | |||||
|
27
|
27
904-50470-02-00 Hose Clamp Assy |
904-50470-02-00 |
from US $6.66 |
||
