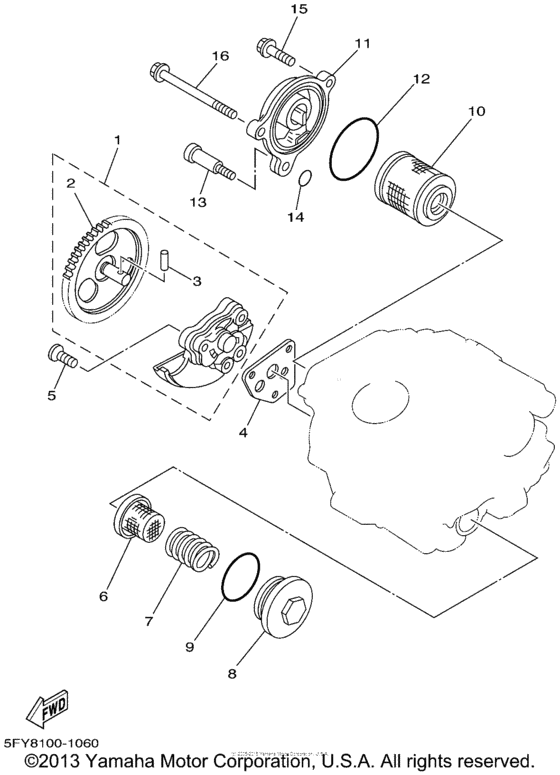

Oil pump Diagram Yamaha TW200
- Year
- 2002
- Sales region
- USA
- Базовая модель
- TW200PC
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-13300-02-00 Oil Pump Assy |
5H0-13300-02-00 |
from US $78.44 |
||
|
2
|
2
5H0-13326-01-00 Gear, Pump Driven 245T |
5H0-13326-01-00 |
from US $20.88 |
||
|
3
|
3
93603-12030-00 Pin, Dowel |
93603-12030-00 |
from US $1.84 |
||
|
4
|
4
4BE-13329-01-00 Gasket, Pump Cover |
4BE-13329-01-00 |
from US $2.69 |
||
| replacement | |||||
|
4
|
4
3GD-13329-00-00 Gasket, Pump Cover |
3GD-13329-00-00 |
from US $1.70 |
||
|
5
|
5
98707-06030-00 Screw, Flat Head |
98707-06030-00 |
from US $1.56 |
||
|
6
|
6
51Y-13411-00-00 Strainer, Oil |
51Y-13411-00-00 |
from US $7.42 |
||
| replacement | |||||
|
6
|
6
5YP-E3411-00-00 Strainer, Oil |
5YP-E3411-00-00 |
from US $4.90 |
||
|
7
|
7
90501-18576-00 Spring, Compression |
90501-18576-00 |
from US $1.70 |
||
|
8
|
8
5H0-15351-00-00 Plug, Drain |
5H0-15351-00-00 |
from US $19.69 |
||
|
9
|
9
93210-347A1-00 O-Ring |
93210-347A1-00 |
from US $1.70 |
||
|
10
|
10
5H0-13440-00-00
Element Assy, Oil Cleaner
|
5H0-13440-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5H0-13440-09-00 Element Assy, Oil Cleaner |
5H0-13440-09-00 |
from US $12.21 |
||
|
11
|
11
3AW-13447-00-00 Cover, Oil Element |
3AW-13447-00-00 |
from US $24.50 |
||
| replacement | |||||
|
11
|
11
3AW-13447-01-00 Cover, Oil Element |
3AW-13447-01-00 |
from US $22.86 |
||
|
12
|
12
932-10541-75-00 O-Ring |
932-10541-75-00 |
from US $4.04 |
||
|
13
|
13
901-09064-19-00 Bolt (583 Oil Drain) |
901-09064-19-00 |
from US $5.13 |
||
|
14
|
14
932-10071-35-00 O-Ring (Small) |
932-10071-35-00 |
from US $2.22 |
||
|
15
|
15
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
15
|
15
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
16
|
16
90105-065A1-00 Bolt, Flange |
90105-065A1-00 |
from US $1.70 |
||
