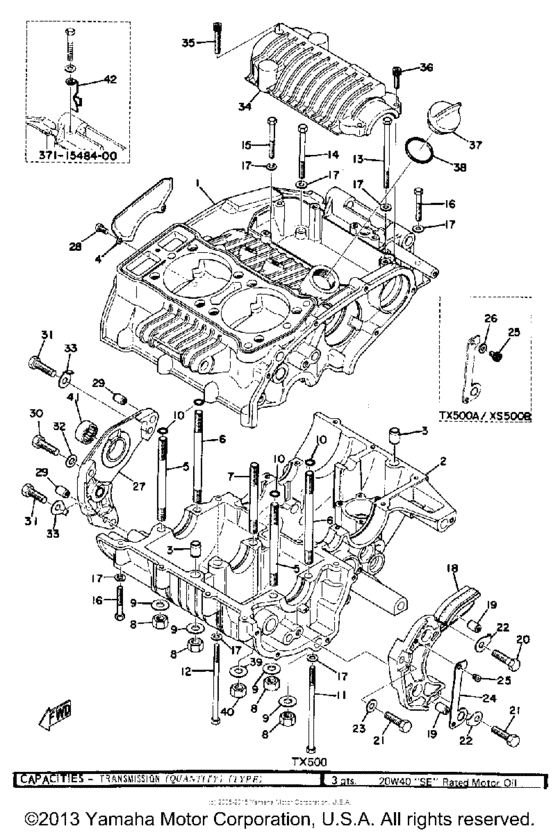

Crankcase Diagram Yamaha TX500
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
371-15100-01-00
Crankcase Assembly
|
371-15100-01-00 |
— | ||
|
3
|
3
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
4
|
4
371-15492-00-00
Cover
|
371-15492-00-00 |
— | ||
|
5
|
5
90116-10090-00
Bolt, Stud
M10-119L |
90116-10090-00 |
— | ||
|
6
|
6
90116-10091-00
Bolt, Stud
M10-131L |
90116-10091-00 |
— | ||
|
7
|
7
90116-10111-00
Bolt, Stud
M10-98L |
90116-10111-00 |
— | ||
|
8
|
8
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
9
|
9
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
10
|
10
93210-09192-00 O-Ring |
93210-09192-00 |
from US $4.68 |
||
|
11
|
11
90101-06335-00 Bolt |
90101-06335-00 |
from US $8.22 |
||
|
12
|
12
90101-06335-00 Bolt |
90101-06335-00 |
from US $8.22 |
||
|
13
|
13
97313-06095-00 Bolt (6G8)6G8 |
97313-06095-00 |
from US $1.70 |
||
| replacements | |||||
|
13
|
13
97095-06095-00 Bolt6G8 |
97095-06095-00 |
from US $1.70 |
||
|
13
|
13
97D95-06095-00 6G8 |
97D95-06095-00 |
from US $1.81 |
||
|
14
|
14
973-13060-70-00
Nut (97301-06070)
|
973-13060-70-00 |
— | ||
| replacement | |||||
|
14
|
14
97013-06070-00 Bolt |
97013-06070-00 |
from US $3.64 |
||
|
15
|
15
97313-06050-00 Bolt (661)661 |
97313-06050-00 |
from US $1.58 |
||
| replacement | |||||
|
15
|
15
97013-06050-00 Bolt661 |
97013-06050-00 |
from US $1.57 |
||
|
16
|
16
97313-06040-00 Bolt (682)682 |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
97095-06040-00 Bolt682 |
97095-06040-00 |
from US $1.39 |
||
|
17
|
17
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
18
|
18
371-15151-00-00
Bracket, Idle Shaft
|
371-15151-00-00 |
— | ||
|
19
|
19
90250-10021-00
Pin, Straight
|
90250-10021-00 |
— | ||
|
20
|
20
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
20
|
20
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
20
|
20
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
20
|
20
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
21
|
21
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
22
|
22
371-15186-00-00
Washer, Lock
|
371-15186-00-00 |
— | ||
|
23
|
23
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
24
|
24
371-15153-02-00
Cover, Idle Shaft
|
371-15153-02-00 |
— | ||
|
25
|
25
91316-05010-00 Bolt |
91316-05010-00 |
from US $1.21 |
||
| replacement | |||||
|
25
|
25
91317-05010-00 Bolt |
91317-05010-00 |
from US $1.21 |
||
|
25
|
25
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
25
|
25
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.18 |
||
|
26
|
26
90201-05027-00 Washer, Plate |
90201-05027-00 |
from US $1.70 |
||
|
27
|
27
371-15152-00-00
Bracket, Brkr Shaft
|
371-15152-00-00 |
— | ||
|
28
|
28
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
28
|
28
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.18 |
||
|
29
|
29
90250-10021-00
Pin, Straight
|
90250-10021-00 |
— | ||
|
30
|
30
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
30
|
30
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
30
|
30
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
30
|
30
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
31
|
31
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
32
|
32
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
33
|
33
371-15186-00-00
Washer, Lock
|
371-15186-00-00 |
— | ||
|
34
|
34
371-15436-00-00
Cover, Strtg Motor
|
371-15436-00-00 |
— | ||
|
35
|
35
913-16060-35-00
Bolt
|
913-16060-35-00 |
— | ||
| replacements | |||||
|
35
|
35
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
35
|
35
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
35
|
35
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
36
|
36
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
36
|
36
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
37
|
37
371-15363-00-00 Plug, Oil |
371-15363-00-00 |
from US $14.89 |
||
|
38
|
38
93210-29198-00 O-Ring |
93210-29198-00 |
from US $3.72 |
||
|
39
|
39
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
39
|
39
90201-10128-00 Washer Plate 341839090000 |
90201-10128-00 |
from US $1.66 |
||
|
40
|
40
90176-10008-00 Nut, Crown |
90176-10008-00 |
from US $4.39 |
||
| replacement | |||||
|
40
|
40
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $5.41 |
||
|
40
|
40
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
40
|
40
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
41
|
41
93315-32516-00 Bearing |
93315-32516-00 |
from US $11.33 |
||
|
42
|
42
371-15484-00-00
Clamp 2
|
371-15484-00-00 |
— | ||
