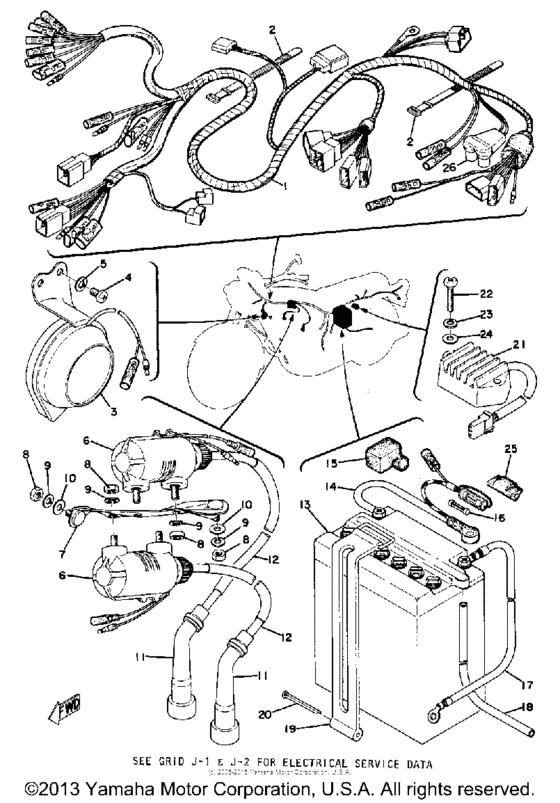

Electrical (1) Diagram Yamaha TX500
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
371-82590-42-00
Wire Harness Assembly
|
371-82590-42-00 |
— | ||
|
1
|
1
371-82590-43-00
Wire Harness Assembly
|
371-82590-43-00 |
— | ||
|
1
|
1
371-82590-44-00
Wire Harness Assembly
|
371-82590-44-00 |
— | ||
|
1
|
1
371-82590-60-00
Wire Harness Assembly
|
371-82590-60-00 |
— | ||
|
2
|
2
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
3
|
3
371-83371-22-00
Horn
|
371-83371-22-00 |
— | ||
|
4
|
4
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
254-82310-60-00
Ignition Coil Assembly
|
254-82310-60-00 |
— | ||
|
6
|
6
371-82310-60-00
Ignition Coil Assembly
|
371-82310-60-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
371-82316-02-00
Bracket, Ign Coil
|
371-82316-02-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
11
|
11
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
11
|
11
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $32.74 |
||
|
12
|
12
4X7-82341-00-00 Cord, High Tension 1 |
4X7-82341-00-00 |
from US $36.75 |
||
|
13
|
13
BTY-YB14L-A2-00
Yb14La2 Yuasa Batte
|
BTY-YB14L-A2-00 |
— | ||
| replacement | |||||
|
13
|
13
YB1-4LA20-00-00
Bat Yb14L-A2 (Cb14L-A2) Yu
|
YB1-4LA20-00-00 |
— | ||
|
14
|
14
371-82115-00-00
Wire, Plus Lead
|
371-82115-00-00 |
— | ||
|
15
|
15
371-82119-00-00
Cover, Lead Wire
|
371-82119-00-00 |
— | ||
|
16
|
16
1A0-82161-00-00 Fuse (12V-20A)12V-20A |
1A0-82161-00-00 |
from US $11.96 |
||
|
17
|
17
371-82116-00-00
Wire, Minus Lead
|
371-82116-00-00 |
— | ||
|
18
|
18
371-82112-60-00
Pipe, Breather
|
371-82112-60-00 |
— | ||
|
18
|
18
90445-08249-00
Hose
|
90445-08249-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
371-82131-00-00 Band, Battery |
371-82131-00-00 |
from US $17.57 |
||
|
20
|
20
91401-40040-00 Pin,cotter |
91401-40040-00 |
from US $3.54 |
||
| replacement | |||||
|
20
|
20
91490-40045-00 Pin. Cotter |
91490-40045-00 |
from US $3.04 |
||
|
21
|
21
2G7-81910-50-00
Voltage Reg Assembly
|
2G7-81910-50-00 |
— | ||
|
22
|
22
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
22
|
22
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
25
|
25
371-82150-01-00
Fuse Holder Assembly
|
371-82150-01-00 |
— | ||
|
26
|
26
371-82549-00-00
Cover, Stop Switch
|
371-82549-00-00 |
— | ||
