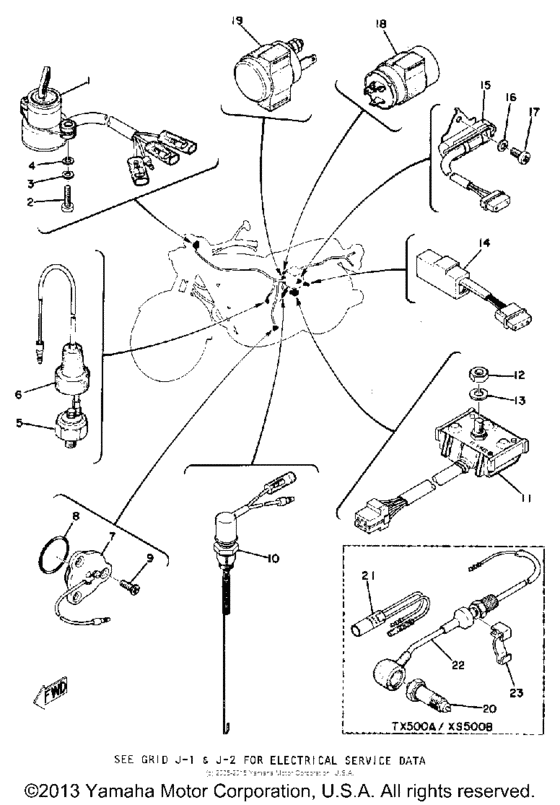

Electrical (2) Diagram Yamaha TX500
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
360-82508-09-00
Main Switch Assembly
|
360-82508-09-00 |
— | ||
|
2
|
2
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
3
|
3
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
4
|
4
902-09051-16-00
Washer, Spec''l Shap
|
902-09051-16-00 |
— | ||
|
5
|
5
341-82504-02-00
Oil Pressure Switch Assembly
|
341-82504-02-00 |
— | ||
|
6
|
6
371-82507-00-00
Wire, Lead
|
371-82507-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
1L9-82540-00-00 Neutral Switch Assy |
1L9-82540-00-00 |
from US $14.82 |
||
|
8
|
8
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.81 |
||
|
9
|
9
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
9
|
9
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.36 |
||
|
10
|
10
371-82530-03-00
Stop Switch Assembly
|
371-82530-03-00 |
— | ||
|
11
|
11
371-81970-10-00
Rectifier Assembly
|
371-81970-10-00 |
— | ||
|
12
|
12
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
14
|
14
371-84708-02-00
Checker, Light
|
371-84708-02-00 |
— | ||
|
14
|
14
371-84708-00-00
Checker, Light
|
371-84708-00-00 |
— | ||
|
15
|
15
371-81625-10-00
Condenser 1
|
371-81625-10-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
18
|
18
371-83350-71-00 Flasher Relay Assembly |
371-83350-71-00 |
US $144.05 |
||
|
19
|
19
1J3-81940-10-00
Starter Switch Assembly (371-81
371-81 |
1J3-81940-10-00 |
— | ||
|
20
|
20
341-82503-01-00
Switch, Alarm
|
341-82503-01-00 |
— | ||
|
21
|
21
341-81980-31-00
New Genuine Part
IN PRICE BOOK 341- |
341-81980-31-00 |
— | ||
|
22
|
22
371-82531-00-00
Wire, Lead
|
371-82531-00-00 |
— | ||
|
23
|
23
904-64200-17-00
Clamp
|
904-64200-17-00 |
— | ||
