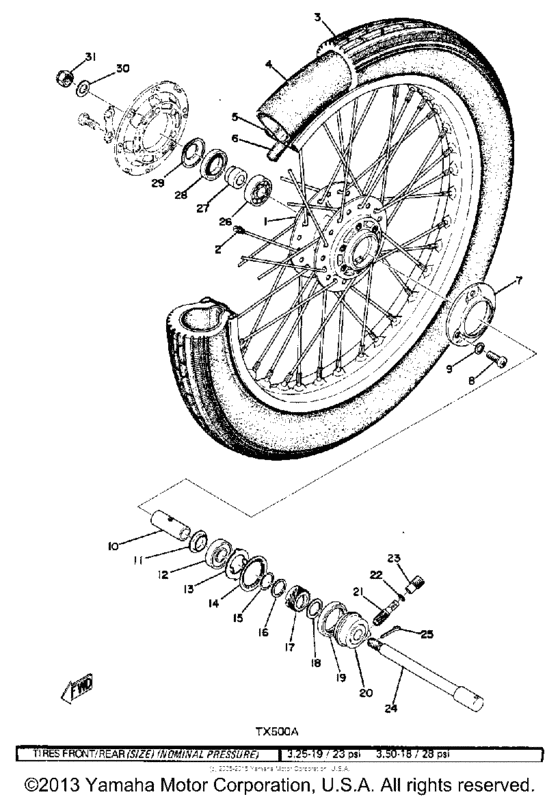

Front wheel Diagram Yamaha TX500
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TX500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
371-25111-00-00
Hub, Front
|
371-25111-00-00 |
— | ||
|
2
|
2
371-25196-90-00
Spoke Set, Inner 1
|
371-25196-90-00 |
— | ||
|
2
|
2
371-25197-90-00
Spoke Set, Outer 1
|
371-25197-90-00 |
— | ||
|
2
|
2
371-25104-00-00
Spoke Set, Front
|
371-25104-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
941-32193-57-00
325H19Y986Spedmstr
|
941-32193-57-00 |
— | ||
|
4
|
4
942-32190-64-00
Tube
|
942-32190-64-00 |
— | ||
|
5
|
5
944-18190-59-00
Rim 1.85X19
1.85X19 |
944-18190-59-00 |
— | ||
|
6
|
6
94325-19027-00 Band, Rim (2.00-19)2.00-19 |
94325-19027-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
943-27191-11-00 Band, Rim (2.00-19)2.00-19 |
943-27191-11-00 |
from US $4.39 |
||
|
7
|
7
371-25847-00-00
Cover, Housing
|
371-25847-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
98501-08012-00
Screw, Pan Head (9806-08012)
9806-08012 |
98501-08012-00 |
— | ||
| replacement | |||||
|
8
|
8
985-80080-12-00
Screw, Pan Head (9806-08012)
9806-08012 |
985-80080-12-00 |
— | ||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
10
|
10
90560-17125-00
Spacer
|
90560-17125-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.74 |
||
|
12
|
12
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
12
|
12
93306-30317-00 Bearing |
93306-30317-00 |
from US $27.74 |
||
|
13
|
13
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $4.43 |
||
|
14
|
14
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $3.33 |
||
|
15
|
15
341-25137-00-00
Ring, Stop
|
341-25137-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
90201-25286-00 Washer, Plate (341-25147-00) |
90201-25286-00 |
from US $3.40 |
||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
341-25135-01-00 Gear, Drive |
341-25135-01-00 |
US $62.71 |
||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
90201-25490-00 Washer, Plate |
90201-25490-00 |
from US $3.29 |
||
|
19
|
19
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $10.83 |
||
|
20
|
20
341-25190-01-00 Gear Unit Assy |
341-25190-01-00 |
from US $82.51 |
||
| replacement | |||||
|
20
|
20
4TR-25190-20-00 Gear Unit Assy |
4TR-25190-20-00 |
from US $103.49 |
||
|
21
|
21
306-25138-00-00
Gear, Meter (10T)
|
306-25138-00-00 |
— | ||
|
22
|
22
102-18416-00-00
Shim, Rod
|
102-18416-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
306-25136-00-00
Bush
|
306-25136-00-00 |
— | ||
|
24
|
24
351-25181-10-00
Axle, Wheel
|
351-25181-10-00 |
— | ||
|
25
|
25
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
25
|
25
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
26
|
26
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
27
|
27
90387-17433-00
Collar
|
90387-17433-00 |
— | ||
|
28
|
28
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $7.07 |
||
|
29
|
29
341-25118-00-00
Cover, Hub Dust
|
341-25118-00-00 |
— | ||
|
30
|
30
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.66 |
||
|
31
|
31
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
31
|
31
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
