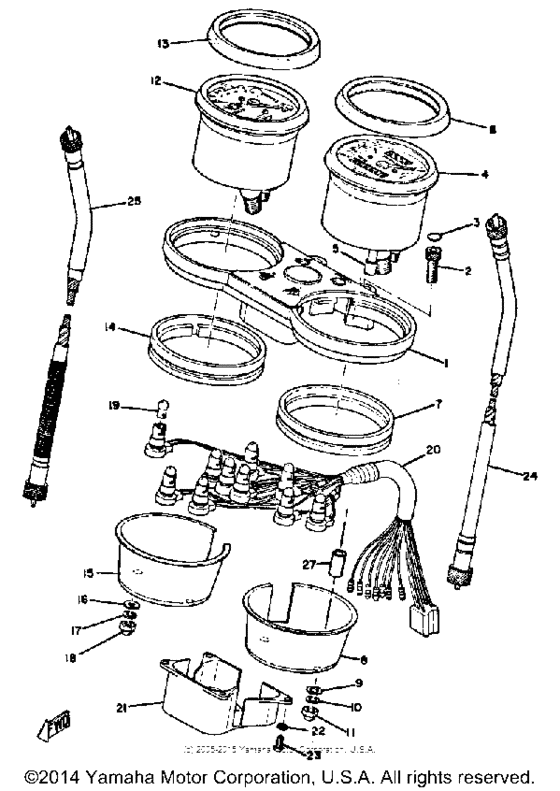

Meter Diagram Yamaha TX650
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 650
- Model
- TX650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
447-83519-40-98
Bracket, Meter
|
447-83519-40-98 |
— | ||
|
2
|
2
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
3
|
3
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.91 |
||
|
4
|
4
371-83570-43-00
Speedometer Assembly
M6-025 |
371-83570-43-00 |
— | ||
|
5
|
5
371-83578-70-00
Knob, Trip Meter
|
371-83578-70-00 |
— | ||
|
6
|
6
371-83513-70-00
Damper
|
371-83513-70-00 |
— | ||
|
7
|
7
371-83523-70-00
Damper
|
371-83523-70-00 |
— | ||
|
8
|
8
371-83507-72-00
Cover, Speedometer
073~M6-025 |
371-83507-72-00 |
— | ||
|
8
|
8
371-83507-70-00
Cover, Speedometer
M6-025 |
371-83507-70-00 |
— | ||
|
9
|
9
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
11
|
11
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
12
|
12
447-83540-02-00
Tachometer Assembly
M6-025 |
447-83540-02-00 |
— | ||
|
13
|
13
371-83513-70-00
Damper
M6-025 |
371-83513-70-00 |
— | ||
|
14
|
14
371-83523-70-00
Damper
|
371-83523-70-00 |
— | ||
|
15
|
15
371-83508-70-00
Cover, Tachometer
M6-025 |
371-83508-70-00 |
— | ||
|
15
|
15
371-83508-71-00
Cover, Tachometer
M6-025 |
371-83508-71-00 |
— | ||
|
16
|
16
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
19
|
19
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
19
|
19
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
20
|
20
447-83509-40-00
Socket Cord Assembly
|
447-83509-40-00 |
— | ||
|
21
|
21
371-83547-70-00
Cover, Socket
|
371-83547-70-00 |
— | ||
|
22
|
22
92906-04100-00 Washer, Spring |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
22
|
22
92907-04100-00 Washer, Spring |
92907-04100-00 |
from US $1.21 |
||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
98506-04010-00 Screw, Pan Head |
98506-04010-00 |
from US $1.21 |
||
| replacement | |||||
|
23
|
23
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.39 |
||
|
24
|
24
34X-83550-01-00
Spdmtr, Cable
|
34X-83550-01-00 |
— | ||
| replacement | |||||
|
24
|
24
16M-83550-01-00 Speedometer Cable Assy |
16M-83550-01-00 |
from US $48.55 |
||
|
25
|
25
447-83560-01-00 Tachometer Cable |
447-83560-01-00 |
US $49.61 |
||
|
26
|
26
447-82519-00-00
Wire, Earth Lead
|
447-82519-00-00 |
— | ||
|
27
|
27
360-83522-00-00
Collar
M6-025 |
360-83522-00-00 |
— | ||
