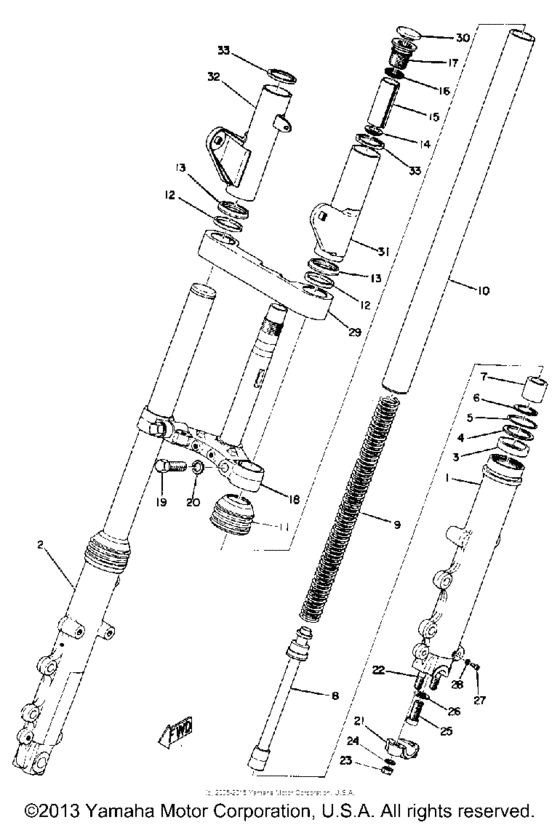

Front fork Diagram Yamaha TX750
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 750
- Model
- TX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
341-23101-51-00
Front Fork Assembly
|
341-23101-51-00 |
— | ||
|
1
|
1
341-23126-50-00
Tube, Outer 1
|
341-23126-50-00 |
— | ||
|
2
|
2
341-23136-50-00
Tube, Outer 2
|
341-23136-50-00 |
— | ||
|
3
|
3
341-23145-51-00
Oil Seal
|
341-23145-51-00 |
— | ||
|
4
|
4
341-23146-50-00 Washer, Oil Seal |
341-23146-50-00 |
from US $10.58 |
||
|
5
|
5
341-23156-50-00 Clip, Oil Seal |
341-23156-50-00 |
from US $19.69 |
||
|
6
|
6
934-50300-33-00
Circlip, Inner
|
934-50300-33-00 |
— | ||
|
7
|
7
278-23171-50-00
Piston, Front Fork
|
278-23171-50-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
341-23170-50-00
Cylinder, Frtfrk
|
341-23170-50-00 |
— | ||
|
9
|
9
341-23141-50-00
Spring, Front Fork
|
341-23141-50-00 |
— | ||
|
10
|
10
341-23124-50-00
Tube, Inner 1
|
341-23124-50-00 |
— | ||
|
11
|
11
341-23144-50-00
Seal, Dust
|
341-23144-50-00 |
— | ||
|
12
|
12
291-23163-61-00
Gasket (Lamp Stay)
|
291-23163-61-00 |
— | ||
|
13
|
13
256-23116-61-00
Guide, Cover Lower
|
256-23116-61-00 |
— | ||
|
14
|
14
278-23142-50-00
Seat, Spring Upper
|
278-23142-50-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
33Y-23118-00-00
Spacer
|
33Y-23118-00-00 |
— | ||
|
16
|
16
214-23114-00-00
Gasket
|
214-23114-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
341-23111-51-00
Bolt, Cap
|
341-23111-51-00 |
— | ||
|
18
|
18
341-23340-31-33
Under Bracket
|
341-23340-31-33 |
— | ||
|
19
|
19
306-23346-60-00
Bolt 1
|
306-23346-60-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
21
|
21
341-23167-50-00 Holder, Axle |
341-23167-50-00 |
from US $46.97 |
||
|
22
|
22
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
23
|
23
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
23
|
23
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
24
|
24
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
25
|
25
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
25
|
25
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
26
|
26
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
27
|
27
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
28
|
28
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
29
|
29
341-23122-51-00
Cover, Outer 1
|
341-23122-51-00 |
— | ||
|
30
|
30
371-23168-60-00
Cap, Front Fork
|
371-23168-60-00 |
— | ||
|
31
|
31
341-23121-50-M5
Cover, Upper 1
METALLIC FLAKE GOLD1 |
341-23121-50-M5 |
— | ||
|
31
|
31
341-23121-50-R6
Cover, Upper 1
BURGUNDY WINE FLAKE1 |
341-23121-50-R6 |
— | ||
|
32
|
32
341-23131-50-M5
Cover, Upper 2
METALLIC FLAKE GOLD1 |
341-23131-50-M5 |
— | ||
|
32
|
32
341-23131-50-R6
Cover, Upper 2
BURGUNDY WINE FLAKE1 |
341-23131-50-R6 |
— | ||
|
33
|
33
2H7-23115-00-00
Guide, Cover Upper
|
2H7-23115-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
