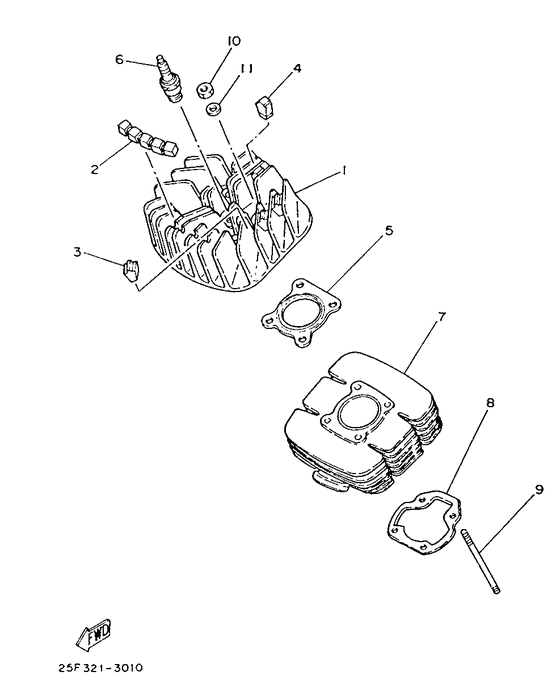

Cylinder Diagram Yamaha TY
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 451
- Sales region
- England (999)
- Engine Capacity
- 80
- Model
- TY80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
451-11111-00-00
Head, Cylinder 1
|
451-11111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
492-11181-00-00
Gasket, Cylinder Head 1
|
492-11181-00-00 |
— | ||
| replacement | |||||
|
02
|
02
598-11181-00-00
Gasket, Cylinder Head 1
|
598-11181-00-00 |
— | ||
|
03
|
03
94701-00039-00
Plug, Spark
|
94701-00039-00 |
— | ||
| replacements | |||||
|
03
|
03
B6H-S0000-00-00 element |
B6H-S0000-00-00 |
US $4.23 |
||
|
03
|
03
BR6-HS000-00-00 Plug, Spark (Ngk Br6Hs) |
BR6-HS000-00-00 |
US $27.36 |
||
|
03
|
03
BR6-HS000-00-00 Plug, Spark (Ngk Br6Hs) |
BR6-HS000-00-00 |
US $27.36 |
||
|
03
|
03
BR6-HS000-00-00 Plug, Spark (Ngk Br6Hs) |
BR6-HS000-00-00 |
US $27.36 |
||
|
04
|
04
451-11311-00-00
Cylinder 1
|
451-11311-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
367-11351-00-00 Gasket,cylinder |
367-11351-00-00 |
from US $7.08 |
||
| replacement | |||||
|
05
|
05
367-11351-01-00 Gasket, Cylinder |
367-11351-01-00 |
from US $5.29 |
||
|
06
|
06
90116-06139-00
Bolt, Stud
|
90116-06139-00 |
— | ||
|
07
|
07
90179-06180-00
Nut, Spec''l Shape (90179-06005
|
90179-06180-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
