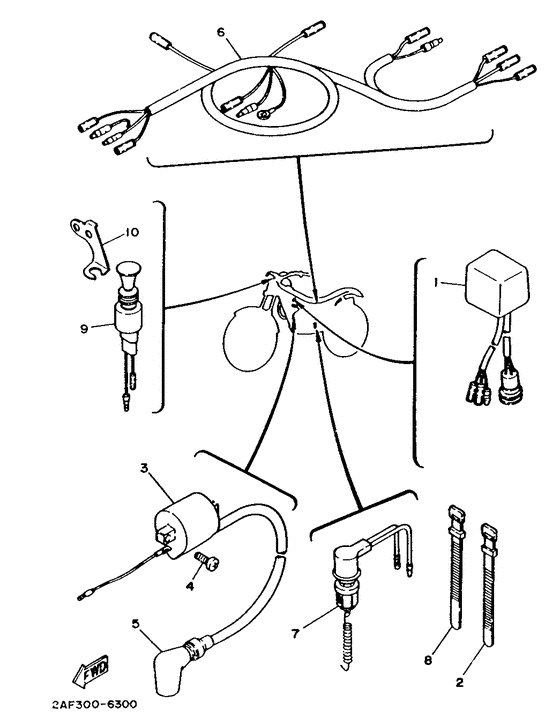

Electrical 1 Diagram Yamaha TY250
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2AF
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
38V-85540-20-00
Cdi Unit Assembly
|
38V-85540-20-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
437-83936-10-00 Band, Switch Cord |
437-83936-10-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
03
|
03
43G-82310-40-00 Ignition Coil Assembly |
43G-82310-40-00 |
US $136.12 |
||
|
04
|
04
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
04
|
04
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
05
|
05
1M1-82370-21-00 Plug Cap AssyWith noise suppressor |
1M1-82370-21-00 |
from US $28.34 |
||
| replacement | |||||
|
05
|
05
8DG-82370-00-00 Plug Cap AssyWith noise suppressor |
8DG-82370-00-00 |
from US $28.34 |
||
|
06
|
06
44H-82590-00-00
Wire Harness Assembly
|
44H-82590-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
5R2-82530-00-00 Stop Switch Assy |
5R2-82530-00-00 |
from US $28.73 |
||
| replacements | |||||
|
07
|
07
5R2-82530-02-00 Stop Switch Assembly |
5R2-82530-02-00 |
from US $16.02 |
||
|
07
|
07
5R2-82530-03-00 Stop Switch Assy |
5R2-82530-03-00 |
from US $26.26 |
||
|
08
|
08
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
08
|
08
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
09
|
09
4V5-82520-00-00
Light Switch Assembly
|
4V5-82520-00-00 |
— | ||
|
10
|
10
44H-82527-00-00
Stay, Lamp Switch
|
44H-82527-00-00 |
— | ||
