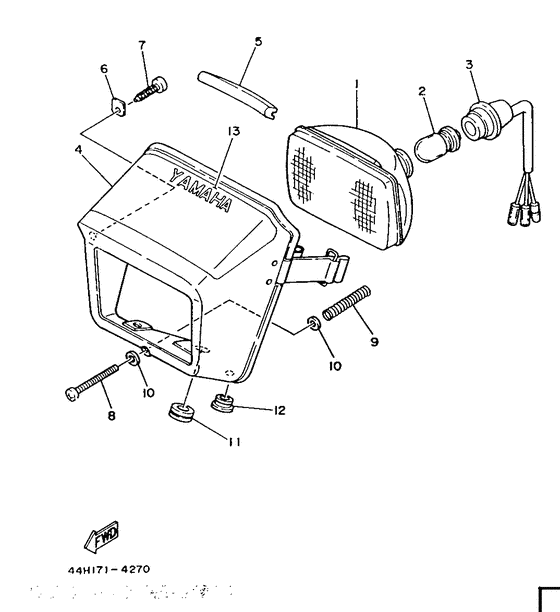

Headlight Diagram Yamaha TY250
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 2AF
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TY250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
18A-84120-00-00 Lens Assembly (26A-84110-00) |
18A-84120-00-00 |
from US $31.59 |
||
|
02
|
02
4G2-84114-00-00 Bulb, HeadlightBulb, headlight (6v-25/25w) |
4G2-84114-00-00 |
from US $6.94 |
||
| replacement | |||||
|
02
|
02
206-84114-60-00 Bulb (6V-25/25W) |
206-84114-60-00 |
from US $6.94 |
||
|
03
|
03
26A-84140-00-00
Socket Cord Assembly
|
26A-84140-00-00 |
— | ||
|
04
|
04
44H-84130-00-00
Body Assembly, Headlight
White |
44H-84130-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
White |
999-99999-99-00 |
— | ||
|
05
|
05
26A-84143-00-00
Damper, Headlight Stay
|
26A-84143-00-00 |
— | ||
|
06
|
06
26A-8411H-00-00 Plate, Stopper |
26A-8411H-00-00 |
US $3.37 |
||
|
07
|
07
97701-40510-00 Screw, Tapping |
97701-40510-00 |
from US $1.56 |
||
| replacement | |||||
|
07
|
07
97707-40610-00 Screw, Tapping |
97707-40610-00 |
from US $1.66 |
||
|
08
|
08
18A-84131-00-00 Screw, Rim Adjusting |
18A-84131-00-00 |
from US $4.39 |
||
|
09
|
09
18A-84132-00-00 Spring, Screw |
18A-84132-00-00 |
from US $4.11 |
||
|
10
|
10
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
11
|
11
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
12
|
12
90480-10070-00 Grommet |
90480-10070-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
904-80100-17-00 Grommet |
904-80100-17-00 |
from US $2.08 |
||
|
13
|
13
44H-84141-00-00
Emblem, Headlight
|
44H-84141-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
